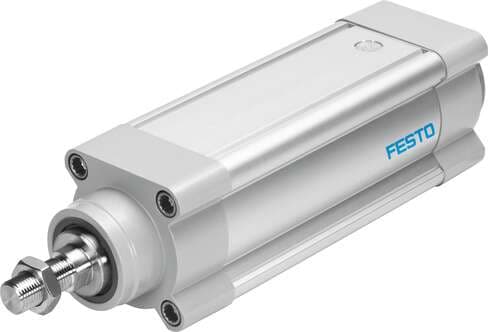

2215386 Festo Electric Actuators

Product Details

• Reversing backlash
  30 µm
• Piston rod thread
  M16x1.5
• Type code
  ESBF
• Motor type
  Stepper motor Servo motor
• Duty cycle
  100%
• Mounting position
  Any
• Design
  Electric actuator with ball screw
• Max. speed
  0.33 m/s
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Ambient temperature
  0 °C ... 60 °C
• No-load driving torque
  0.3 Nm
• Mass moment of inertia JO
  0.1453 kgcm²
• Size
  50
• Screw diameter
  20 mm
• Based on norm
  ISO 15552
• Spindle type
  Ball screw
• Max. acceleration
  5 m/s²
• For use in the food industry
  See supplementary material information
• Relative air humidity
  0 - 95 %
• Max. radial force on actuator shaft
  300 N
Mass moment of inertia JH per meter of stroke
1.0187 kgcm²
Moving mass at 0 mm stroke
793 g
Stroke
200 mm
Spindle pitch
5 mm/U
Piston rod end
External thread
Symbol
00991941
Protection against torsion/guide
With plain-bearing guide
Storage temperature
-20 °C ... 60 °C
Max. driving torque
4.8 Nm
Mass moment of inertia JL per kg of payload
0.0063 kgcm²
Basic weight with 0 mm stroke
1982 g
Interface code, actuator
D50
Max. angle of rotation of the piston rod +/-
0.15 deg
Position sensing
For proximity sensor
Repetition accuracy
±0.01 mm
Max. feed force Fx
5000 N
Guide value for payload, horizontal
500 kg
Cover material
Smooth anodized
Material of cylinder barrel
Wrought aluminum alloy, smooth-anodized
Degree of protection
IP40
Guide value for payload, vertical
500 kg
Additional moving mass per 10 mm stroke
35 g
Piston rod material
High-alloy stainless steel
Spindle material
Roller bearing steel
Additional weight per 10 mm stroke
65 g
Spindle nut material
Roller bearing steel
Type of mounting
With internal thread or accessory
Material of screws
Steel, galvanized
Note on materials
Contains paint-wetting impairment substances RoHS-compliant

Related documents 2215386 Specs
