Part#:194213

Alt. Part#:DZF-15/8"-3"-A-P-A

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

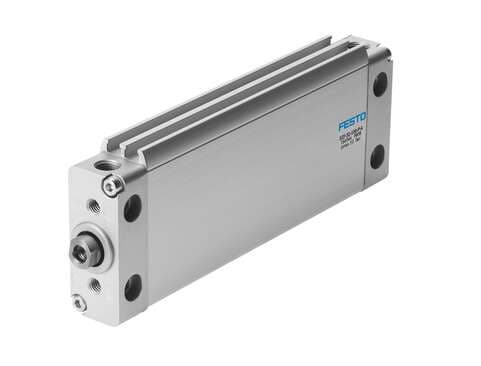

flat cylinder DZF-15/8"-3"-A-P-A Non-rotating, for position sensing, with elastic cushioning rings in end positions. Various mounting options, with or without additional mounting components. Stroke: 3 ", Piston diameter: 1 5/8", Max. angular deflection of

Product Details

  • Type code
    DZF
  • Operating pressure
    0.1 MPa ... 1 MPa
  • Moving mass at 0 mm stroke
    120 g
  • Piston diameter
    1 5/8"
  • Cushioning
    Elastic cushioning rings/pads at both ends
  • Protection against torsion/guide
    Oval piston
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Theoretical force at 6 bar, advancing
    754 N
  • Basic weight with 0 mm stroke
    480 g
  • Housing material
    Wrought aluminum alloy
  • Stroke
    76.2 mm
  • Mode of operation
    Double-acting
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Ambient temperature
    -20 °C ... 80 °C
  • Additional moving mass per 10 mm stroke
    9 g
  • Seals material
    FPM TPE-U(PU)
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Additional weight per 10 mm stroke
    16 g
  • Cover material
    Aluminum
  • Max. angle of rotation of the piston rod +/-
    0.6 deg
  • Symbol
    00991217
  • Theoretical force at 6 bar, retracting
    633 N
  • Pneumatic connection
    1/8 NPT
  • Piston rod material
    High-alloy steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

194213 Related Documents

194213 DataSheet.pdf

Similar products from: Festo Pneumatic Actuators
