190996 Festo Vacuum Cups

190996 on Powermatic Associates
Festo

Part#:190996

Alt. Part#:ESV-50-SS

Manufacturer:Festo

Category:Vacuum Cups

Product Lifecycle:Active

Product description

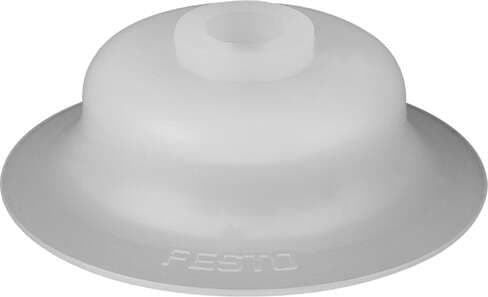

vacuum suction cup ESV-50-SS Wearing part, easily replaceable Min. workpiece radius: 330 mm, suction cup diameter: 50 mm, suction cup volume: 2,387 cm3, Position of connection: on top, Assembly position: Any

Product Details

  • Suction cup volume
    2.387 cm³
  • Symbol
    00991485
  • Product weight
    11.2 g
  • Type code
    ESV
  • Suction cup shape
    Round, flat
  • Operating medium
    Atmospheric air based on ISO 8573-1:2010 [7:-:-]
  • Mounting position
    Any
  • Holding force at nominal operating pressure
    105 N
  • Shore hardness
    50 +/- 5
  • Suction cup material
    VMQ (silicone)
  • Min. workpiece radius
    330 mm
  • For use in the food industry
    See supplementary material information
  • Color
    Transparent
  • Suction cup diameter
    50 mm
  • Connection position
    Top
  • Ambient temperature
    -30 °C ... 180 °C
  • Note on materials
    Free of copper and PTFE RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

190996 Related Documents

190996 DataSheet.pdf
