190986 Festo Vacuum Cups
Part#:190986
Alt. Part#:ESV-30-SS
Manufacturer:Festo
Category:Vacuum Cups
Product Lifecycle:Active
Product description

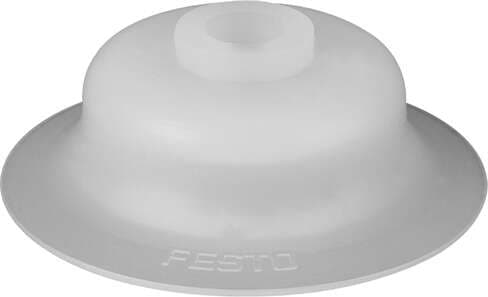

vacuum suction cup ESV-30-SS Wearing part, easily replaceable Min. workpiece radius: 110 mm, suction cup diameter: 30 mm, suction cup volume: 0,867 cm3, Position of connection: on top, Assembly position: Any
Product Details
- Min. workpiece radius 110 mm
- Type code ESV
- Symbol 00991485
- Holding force at nominal operating pressure 40.8 N
- Note on materials Free of copper and PTFE RoHS-compliant
- Suction cup shape Round, flat
- Operating medium Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Shore hardness 50 +/- 5
- Suction cup diameter 30 mm
- Mounting position Any
- Product weight 2.7 g
- Suction cup material VMQ (silicone)
- Suction cup volume 0.867 cm³
- Ambient temperature -30 °C ... 180 °C
- Connection position Top
- For use in the food industry See supplementary material information
- Color Transparent
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
190986 Related Documents
Manufacturer warranty
190986 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 190986 with other Vacuum Cups products
Min. workpiece radius
Type code
Symbol
Holding force at nominal ...
Note on materials
Suction cup shape
Operating medium
Shore hardness
Suction cup diameter
Mounting position
Selected product
190986
Festo
vacuum suction cup ESV-30-SS Wearing part, easily replaceable Min. workpiece radius: 110 mm, suction...
Min. workpiece radius110 mm
Type codeESV
Symbol00991485
Holding force at nominal operating pressure40.8 N
Note on materialsFree of copper and PTFE RoHS...
Suction cup shapeRound, flat
Operating mediumAtmospheric air based on ISO...
Shore hardness50 +/- 5
Suction cup diameter30 mm
Mounting positionAny
36144
Festo
suction cup VAS-55-1/4-NBR With sealing ring OL. Nominal size: 4 mm, suction cup diameter: 55 mm, Ef...
Min. workpiece radius-
Type codeVAS
Symbol00991485
Holding force at nominal operating pressure106 N
Note on materials-
Suction cup shapeRound, flat
Operating mediumAtmospheric air based on ISO...
Shore hardness-
Suction cup diameter55 mm
Mounting position-
About the manufacturer
Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...
About the Product Category
Devices known as vacuum cups are utilized in the automation of manufacturing processes to effectively grasp and elevate objects. They generate suction force through pneumatic vacuum generators, thereby improving both productivity and precision. Vacuum cups come in a variety of types, including flat, oval, and bellows suction cups, each designed to manage specific surfaces and workpieces. Their fun...
