190998 Festo Vacuum Cups
Part#:190998
Alt. Part#:ESV-50-SNA
Manufacturer:Festo
Category:Vacuum Cups
Product Lifecycle:Active
Product description

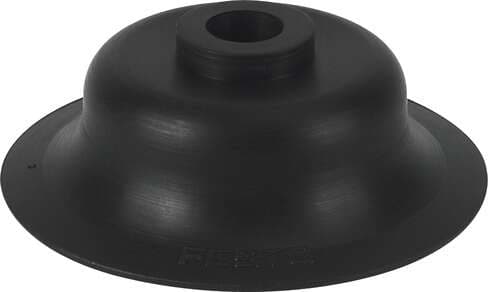

vacuum suction cup ESV-50-SNA Wearing part, easily replaceable Min. workpiece radius: 330 mm, suction cup diameter: 50 mm, suction cup volume: 2,387 cm3, Position of connection: on top, Assembly position: Any
Product Details
- Color Black/white dot
- Suction cup volume 2.387 cm³
- Special features Anti-static
- Suction cup diameter 50 mm
- Mounting position Any
- Symbol 00991485
- Shore hardness 50 +/- 5
- Min. workpiece radius 330 mm
- Connection position Top
- Operating medium Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Holding force at nominal operating pressure 105 N
- For use in the food industry See supplementary material information
- Product weight 11.2 g
- Suction cup material BR
- Type code ESV
- Suction cup shape Round, flat
- Ambient temperature -10 °C ... 70 °C
- Note on materials Free of copper and PTFE RoHS-compliant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
