190912 Festo Pressure Control Valves

190912 on Powermatic Associates
Festo

Part#:190912

Alt. Part#:LRLL-3/8-NPT-QS-5/16-U

Manufacturer:Festo

Category:Pressure Control Valves

Product Lifecycle:Active

Product description

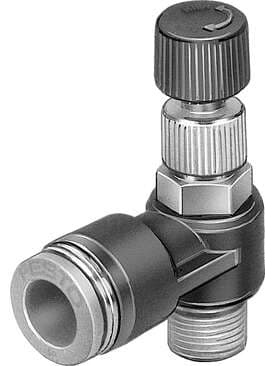

differential pressure regulator LRLL-3/8-NPT-QS-5/16-U Without manometer, with male thread and QS plug connector. Controller function: Differential pressure, constant, Pneumatic connection, port 1: 3/8 NPT, Pneumatic connection, port 2: QS-5/16, Mountin

Product Details

  • Controller function
    Differential pressure constant
  • Pneumatic connection 2
    QS-5/16
  • Product weight
    66.5 g
  • Note on materials
    RoHS-compliant
  • Type code
    LRLL
  • Inlet pressure 1
    0 bar ... 9 bar
  • Mounting position
    Any
  • Symbol
    00991535
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Pneumatic connection 1
    3/8 NPT
  • Ambient temperature
    0 °C ... 60 °C
  • Housing material
    PBT-reinforced
  • Type of mounting
    Screw-in
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Material of screwed trunnion
    Brass

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

190912 Related Documents

190912 DataSheet.pdf
