190911 Festo Pressure Control Valves

190911 on Powermatic Associates
Festo

Part#:190911

Alt. Part#:LRLL-1/4-NPT-QS-3/8-U

Manufacturer:Festo

Category:Pressure Control Valves

Product Lifecycle:Active

Product description

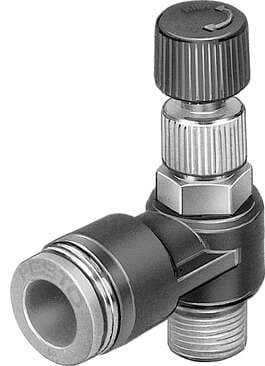

differential pressure regulator LRLL-1/4-NPT-QS-3/8-U Without manometer, with male thread and QS plug connector. Controller function: Differential pressure, constant, Pneumatic connection, port 1: 1/4 NPT, Pneumatic connection, port 2: QS-3/8, Mounting

Product Details

  • Type code
    LRLL
  • Type of mounting
    Screw-in
  • Housing material
    PBT-reinforced
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Pneumatic connection 2
    QS-3/8
  • Mounting position
    Any
  • Note on materials
    RoHS-compliant
  • Pneumatic connection 1
    1/4 NPT
  • Symbol
    00991535
  • Ambient temperature
    0 °C ... 60 °C
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Material of screwed trunnion
    Brass
  • Controller function
    Differential pressure constant
  • Inlet pressure 1
    0 bar ... 9 bar
  • Product weight
    41.5 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

190911 Related Documents

190911 DataSheet.pdf

Manufacturer warranty

190911 Festo
