18324 Festo Electrical Connectors

18324 on Powermatic Associates
Festo

Part#:18324

Alt. Part#:FBSD-GD-9-5POL

Manufacturer:Festo

Category:Electrical Connectors

Product Lifecycle:Active

Product description

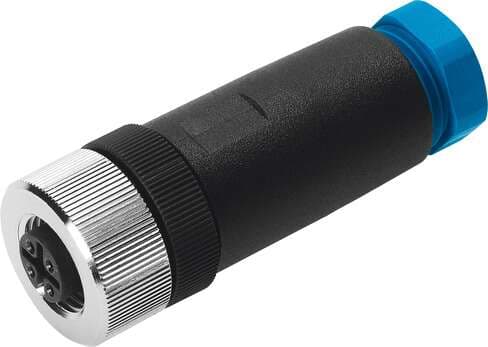

plug socket FBSD-GD-9-5POL For fieldbus connection to valve and valve/sensor terminals. Based on the standard: (* EN 61076-2-101, * EN 61984), Mounting type: With sleeve nut, Assembly position: Any, Product weight: 33 g, Electrical connection: (* 5-pin, *

Product Details

  • Product weight
    33 g
  • Approved cable diameter
    6 mm ... 8 mm
  • Surge resistance
    1.5 kV
  • Electrical connection
    5-pin M12x1
  • Connection cross section
    0.75 mm²
  • CE marking (see declaration of conformity)
    As per EU low voltage directive
  • Based on norm
    EN 61076-2-101 EN 61984
  • Current rating at 40°C
    4 A
  • Note on materials
    RoHS-compliant
  • Type code
    FBSD
  • DC operating voltage range
    ≤ 60 V
  • Ambient temperature
    -40 °C ... 85 °C
  • Contamination level
    3
  • Material of pin contacts
    Bronze Nickel-plated and gold-plated
  • Housing material
    PA-reinforced
  • Type of mounting
    With union nut
  • Operating voltage range AC
    ≤ 60 V
  • Degree of protection
    IP67
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Mounting position
    Any
  • Housing colour
    Black
  • Material of union nut
    Die-cast zinc Nickel-plated
  • Cable fitting
    Pg9

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
