178017 Festo Pneumatic Actuators

178017 on Powermatic Associates
Festo

Part#:178017

Alt. Part#:DNC-3"-8"-PPV

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

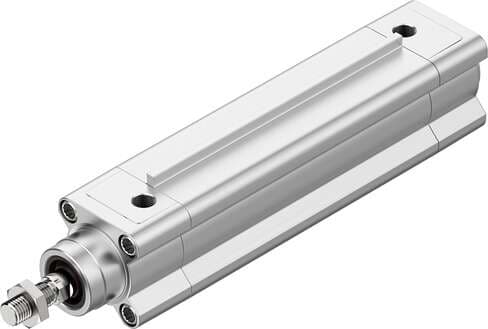

profile cylinder DNC-3"-8"-PPV As per ISO 15552, with profile cylinder barrel, with adjustable cushioning at both end positions. Stroke: 8 ", Piston diameter: 3", Piston rod thread: 3/4-16 UNF-2A, Based on the standard: ISO 15552 (previously also VDMA 246

Product Details

  • Position sensing
    None
  • Type code
    DNC
  • Piston rod end
    External thread
  • Ambient temperature
    -20 °C ... 80 °C
  • Impact energy in the end positions
    0.9 J
  • Basic weight with 0 mm stroke
    2790 g
  • Note on materials
    RoHS-compliant
  • Cover material
    Die-cast aluminum Coated
  • Piston diameter
    3"
  • Mounting position
    Any
  • Symbol
    00991232
  • Mode of operation
    Double-acting
  • Theoretical force at 6 bar, retracting
    2721 N
  • Additional moving mass per 10 mm stroke
    38 g
  • Stroke
    203.2 mm
  • Based on norm
    ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290)
  • Operating pressure
    0.06 MPa ... 1.2 MPa
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Moving mass at 0 mm stroke
    1131 g
  • Type of mounting
    With internal thread With accessories
  • Piston rod material
    High-alloy steel
  • Cushioning
    Pneumatic cushioning, adjustable at both ends
  • Design
    Piston Profile barrel
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Additional weight per 10 mm stroke
    106 g
  • Seals material
    TPE-U(PU)
  • Maritime classification
    See certificate
  • Piston rod thread
    3/4-16 UNF-2A
  • Variants
    Piston rod at one end
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Cushioning length
    32 mm
  • Theoretical force at 6 bar, advancing
    3016 N
  • Pneumatic connection
    NPT3/8-18
  • Material of cylinder barrel
    Wrought aluminum alloy Smooth anodized

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
