173919 Festo Compressed Air Preparation Units

173919 on Powermatic Associates
Festo

Part#:173919

Manufacturer:Festo

Alt. Part#:HEL-3/8-D-MIDI-NPT

Product Lifecycle:Active

Get a quick Quote!

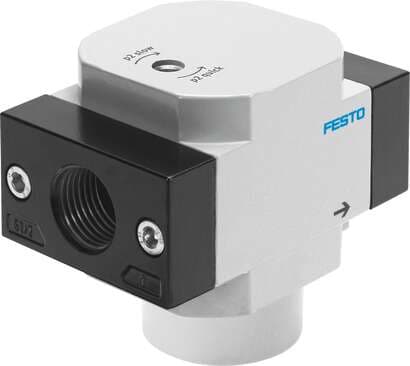

on-off valve HEL-3/8-D-MIDI-NPT Used in conjunction with service units for gradual pressure build-up. The valve function is equivalent to a 2/2-way valve. Grid dimension: 55 mm, Exhaust-air function: throttleable, Type of actuation: pneumatic, Sealing pri

About the manufacturer: Festo is one of the manufacturers that offers Compressed Air Preparation Units that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 173919 Festo price in the box on the right side or send a quick quote.

Product Details

  • Width dimension
    55 mm
  • Type of control
    Direct
  • Operating pressure
    3 bar ... 16 bar
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Type of mounting
    Line installation With accessories
  • Ambient temperature
    -10 °C ... 60 °C
  • Housing material
    Die-cast aluminum
  • Actuation type
    Pneumatic
  • Manual override
    None
  • Symbol
    00991513
  • C value
    16.5 l/sbar
  • Pneumatic connection 2
    3/8 NPT
  • Design
    Piston gate valve
  • Flow direction
    Non-reversible
  • b-value
    0.39
  • Temperature of medium
    -10 °C ... 60 °C
  • Pneumatic connection 1
    3/8 NPT
  • Type code
    HEL
  • Sealing principle
    Soft
  • Reset method
    Mechanical spring
  • Note on materials
    RoHS-compliant
  • Exhaust air function
    With flow control option
  • Mounting position
    Any
  • Valve function
    2/2, closed, monostable
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • Product weight
    270 g
  • Seals material
    NBR
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • Standard nominal flow rate
    3200 l/min

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 173919 Specs

173919 173919 DataSheet.pdf

Manufacturer warranty
