173931 Festo Compressed Air Preparation Units

173931 on Powermatic Associates
Festo

Part#:173931

Alt. Part#:FRM-1-D-MAXI-NPT

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

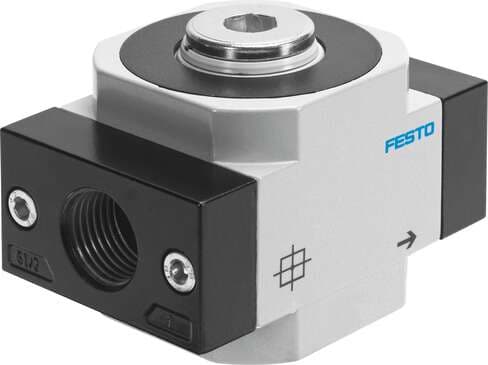

branching module FRM-1-D-MAXI-NPT Pneumatic manifold with 4 connections. Assembly position: Any, Design structure: Branching module, Operating pressure: 0 - 16 bar, Standard nominal flow rate in main flow direction 1->2: 17400 l/min, Operating medium: (*

Product Details

  • Symbol
    00991510
  • Storage temperature
    -10 °C ... 60 °C
  • Pneumatic connection 4
    G1/4
  • Type code
    FRM
  • Operating pressure
    0 bar ... 16 bar
  • Ambient temperature
    -10 °C ... 60 °C
  • Pneumatic connection 3
    G3/4
  • Mounting position
    Any
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-] Inert gas
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Pneumatic connection 2
    1 NPT
  • Housing material
    Die-cast zinc
  • Design
    Branching module
  • Standard nominal flow rate in main flow direction 1 -> 2
    17400 l/min
  • Temperature of medium
    -10 °C ... 60 °C
  • Product weight
    772 g
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [7:-:-] Inert gas
  • Pneumatic connection 1
    1 NPT

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
