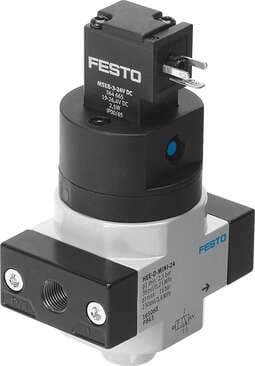

173901 Festo Compressed Air Preparation Units
Part#:173901
Alt. Part#:HEE-1/8-D-MINI-110-NPT
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description
on-off valve HEE-1/8-D-MINI-110-NPT Used in conjunction with service units. Grid dimension: 40 mm, Design structure: Piston slide, Type of actuation: electrical, Sealing principle: soft, Exhaust-air function: not throttleable
Product Details
- Type code HEE
- Actuation type Electrical
- Symbol 00991008
- Standard nominal flow rate 1000 l/min
- Mounting position Any
- Pneumatic connection 3 G1/8
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Design Piston gate valve
- Reset method Mechanical spring
- b-value 0.44
- Duty cycle 100%
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- CE marking (see declaration of conformity) As per EU low voltage directive
- Product weight 223 g
- Pilot air supply port Internal
- Sealing principle Soft
- Valve function 3/2, closed, monostable
- Coil characteristics 110 V AC: 50/60 Hz, initial power 5.0 VA, holding power 3.7 VA
- Temperature of medium -10 °C ... 60 °C
- Flow direction Non-reversible
- Signal status display With accessories
- Exhaust air function Without flow control option
- C value 4.4 l/sbar
- Permissible voltage fluctuations +/- 10 %
- Note on materials RoHS-compliant
- Type of mounting Line installation With accessories
- Pneumatic connection 1 1/8 NPT
- Electrical connection Form C as per DIN EN 175301-803
- Seals material NBR
- Width dimension 40 mm
- Manual override Detenting
- Type of control Pilot-controlled
- Operating pressure 2.5 bar ... 16 bar
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Ambient temperature -10 °C ... 60 °C
- Pneumatic connection 2 1/8 NPT
- Housing material Die-cast aluminum
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
