164204 Festo Pneumatic Fittings

Name: 164204
Brand: Festo

Part#:164204

Alt. Part#:CRQST-1/4-8

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Product description

push-in T-fitting CRQST-1/4-8 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 5 mm, Assembly position: Any, Design: T-shaped, Container size: 1

Product Details

Size
Standard
Nominal width
5 mm
Product weight
38 g
Usable connector cables
PFAN
Note on materials
RoHS-compliant
Operating pressure for entire temperature range
-0.95 bar ... 10 bar
Information on operating and pilot media
Operation with oil lubrication possible
Pneumatic connection 2
for pneumatic tubing outside diameter 8 mm
Pneumatic connection 1
External thread R1/4
Design
Push-pull principle
Mounting position
Any
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
No. of outlets
2
Material of tubing seal
FPM
Type of mounting
External hexagon, AF 14
Pack size
1
Ambient temperature
-15 °C ... 120 °C
For use in the food industry
See supplementary material information
Housing material
High-alloy stainless steel
Material of tube retaining claw
High-alloy stainless steel

Maritime classification

See certificate

Type code

CRQST

Corrosion resistance class (CRC)

4 - Particularly high corrosion stress

No. of supply lines

Releasing ring material

High-alloy stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

164204 Related Documents

164204 DataSheet.pdf

Similar products from: Festo Pneumatic Fittings

572319

Festo

push-in fitting QB-1/8-5/16-I-U Size: Standard, Nominal size: 0,189 ", Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

7 in stock

190651

Festo

push-in fitting QSF-1/4-12-B female thread with external hexagon. Size: Standard, Nominal size: 11 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 10

8 in stock

572311

Festo

push-in fitting QBM-10-32-UNF-1/8-I-U Size: Mini, Nominal size: 0,094 ", Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Design structure: Push/pull principle

3 in stock

533280

Festo

push-in fitting QB-3/8-5/16-U male thread with external hexagon. Size: Standard, Nominal size: 0,252 ", Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

6 in stock

533285

Festo

push-in L-fitting QBML-10-32-UNF-1/8-U 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 0,098 ", Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Design structure: Push/pull principle

4 in stock

153134

Festo

push-in T-connector QST-6-4 reducing. Size: Standard, Nominal size: 2,3 mm, Assembly position: Any, Container size: 10, Design structure: Push/pull principle

8 in stock

Manufacturer warranty

164204 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 164204 with other Pneumatic Fittings products

Size

Nominal width

Product weight

Usable connector cables

Note on materials

Operating pressure for en...

Information on operating ...

Pneumatic connection 2

Pneumatic connection 1

Design

Selected product

Backordered

164204

Festo

push-in T-fitting CRQST-1/4-8 360° orientable, male thread with external hexagon. Size: Standard, No...

SizeStandard

Nominal width5 mm

Product weight38 g

Usable connector cablesPFAN

Note on materialsRoHS-compliant

Operating pressure for entire temperature range-0.95 bar ... 10 bar

Information on operating and pilot mediaOperation with oil lubricati...

Pneumatic connection 2for pneumatic tubing outside...

Pneumatic connection 1External thread R1/4

DesignPush-pull principle

10 in stock

153002

Festo

push-in fitting QS-1/8-6 male thread with external hexagon. Size: Standard, Nominal size: 5 mm, Type...

SizeStandard

Nominal width5 mm

Product weight-

Usable connector cables-

Note on materials-

Operating pressure for entire temperature range-0.95 bar ... 6 bar

Information on operating and pilot media-

Pneumatic connection 2-

Pneumatic connection 1-

DesignPush-pull principle

5 in stock

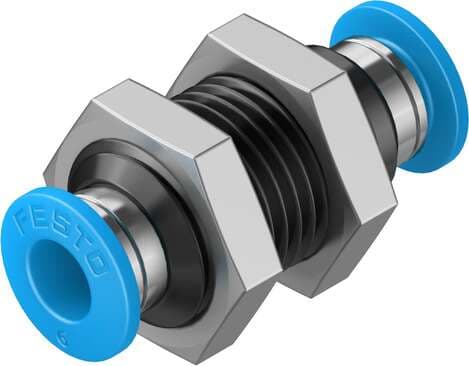

153158
