164209 Festo Pneumatic Fittings

Name: 164209
Brand: Festo

Part#:164209

Alt. Part#:CRQST-1/2-16

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Product description

push-in T-fitting CRQST-1/2-16 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 9,5 mm, Assembly position: Any, Design: T-shaped, Container size: 1

Product Details

Type of mounting
External hexagon, AF 24
Type code
CRQST
Corrosion resistance class (CRC)
4 - Particularly high corrosion stress
Product weight
128 g
Note on materials
RoHS-compliant
Maritime classification
See certificate
Nominal width
9.5 mm
Information on operating and pilot media
Operation with oil lubrication possible
No. of supply lines
1
Housing material
High-alloy stainless steel
Size
Standard
Mounting position
Any
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
Ambient temperature
-15 °C ... 120 °C
Pneumatic connection 1
External thread R1/2
Material of tube retaining claw
High-alloy stainless steel
Design
Push-pull principle
Operating pressure for entire temperature range
-0.95 bar ... 10 bar
For use in the food industry
See supplementary material information
Usable connector cables
PFAN

Releasing ring material

High-alloy stainless steel

Pack size

No. of outlets

Pneumatic connection 2

for pneumatic tubing outside diameter 16 mm

Material of tubing seal

FPM

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

164209 Related Documents

164209 DataSheet.pdf

Similar products from: Festo Pneumatic Fittings

2030

Festo

quick connector CK-1/4-PK-6 Male thread with sealing ring, metal version. Nominal size: 4,9 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Maritime classification: see certificate, Operating medium: (* Compressed air in accordanc

10 in stock

564801

Festo

push-in connector QB-5/16T-1/4-U reducing. Size: Standard, Nominal size: 0,197 ", Assembly position: Any, Design structure: Push/pull principle, Operating pressure complete temperature range: -13,8 - 145 Psi

8 in stock

572311

Festo

push-in fitting QBM-10-32-UNF-1/8-I-U Size: Mini, Nominal size: 0,094 ", Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Design structure: Push/pull principle

3 in stock

572319

Festo

push-in fitting QB-1/8-5/16-I-U Size: Standard, Nominal size: 0,189 ", Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

7 in stock

533285

Festo

push-in L-fitting QBML-10-32-UNF-1/8-U 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 0,098 ", Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Design structure: Push/pull principle

4 in stock

533280

Festo

push-in fitting QB-3/8-5/16-U male thread with external hexagon. Size: Standard, Nominal size: 0,252 ", Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

6 in stock

Manufacturer warranty

164209 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 164209 with other Pneumatic Fittings products

Type of mounting

Type code

Corrosion resistance clas...

Product weight

Note on materials

Maritime classification

Nominal width

Information on operating ...

No. of supply lines

Housing material

Selected product

Backordered

164209

Festo

push-in T-fitting CRQST-1/2-16 360° orientable, male thread with external hexagon. Size: Standard, N...

Type of mountingExternal hexagon, AF 24

Type codeCRQST

Corrosion resistance class (CRC)4 - Particularly high corros...

Product weight128 g

Note on materialsRoHS-compliant

Maritime classificationSee certificate

Nominal width9.5 mm

Information on operating and pilot mediaOperation with oil lubricati...

No. of supply lines1

Housing materialHigh-alloy stainless steel

6 in stock

130603

Festo

push-in fitting QSW-3/8-12 male thread with external hexagon. Size: Standard, Nominal size: 9,5 mm, ...

Type of mounting-

Type codeQSW

Corrosion resistance class (CRC)1 - Low corrosion stress

Product weight-

Note on materials-

Maritime classificationSee certificate

Nominal width9.5 mm

Information on operating and pilot mediaOperation with oil lubricati...

No. of supply lines-

Housing material-

3 in stock

190771

Festo

multiple distributor QSLV2-1/4-3/8-U 2-fold, 360° orientable. Size: Standard, Nominal size: 5,1 mm, ...

Type of mounting-

Type codeQSLV2

Corrosion resistance class (CRC)1 - Low corrosion stress

Product weight-

Note on materials-

Maritime classificationSee certificate

Nominal width5.1 mm

Information on operating and pilot mediaOperation with oil lubricati...

No. of supply lines-

Housing material-

10 in stock

153011

Festo

push-in fitting QS-1/2-16 male thread with external hexagon. Size: Standard, Nominal size: 13 mm, Ty...

Type of mounting-

Type codeQS

Corrosion resistance class (CRC)1 - Low corrosion stress

Product weight-

Note on materials-

Maritime classificationSee certificate

Nominal width13 mm

Information on operating and pilot mediaOperation with oil lubricati...

No. of supply lines-

Housing material-

6 in stock

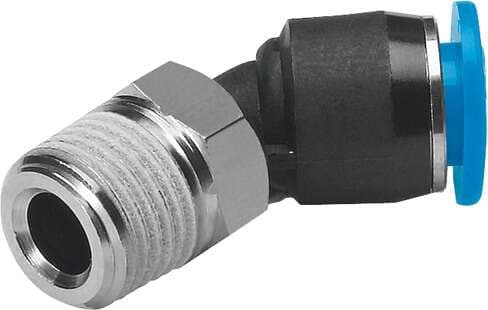

130603
