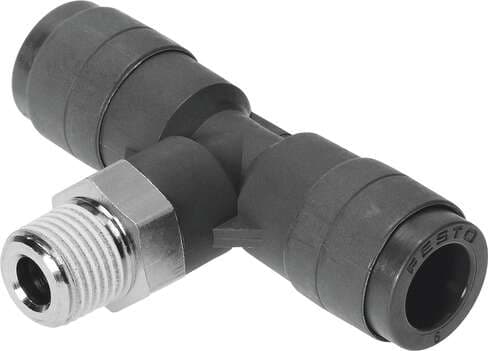

160530 Festo Pneumatic Fittings
Part#:160530
Alt. Part#:QST-V0-3/8-12
Manufacturer:Festo
Category:Pneumatic Fittings
Product Lifecycle:Active
Product description
push-in T-fitting QST-V0-3/8-12 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 10 mm, Material fire test: (* UL94 V-0 (housing), * UL94 V-0 (releasing ring)), Type of seal on screw-in stud: coating, Design structure: Pus
Product Details
- Nominal width 10 mm
- Material fire test UL94 V-0 (housing) UL94 V-0 (releasing ring)
- Operating pressure for entire temperature range -0.95 bar ... 10 bar
- Housing material PBT-reinforced
- Maritime classification See certificate
- Design Push-pull principle
- Pneumatic connection 1 R3/8
- Note on materials RoHS-compliant
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Releasing ring color Black
- Material of screwed trunnion Brass, nickel-plated
- Type of seal on screwed trunnion Coating
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
- Ambient temperature 0 °C ... 60 °C
- Product weight 53 g
- Size Standard
- Type code QST-V0
- Information on operating and pilot media Operation with oil lubrication possible
- Pneumatic connection 2 for pneumatic tubing outside diameter 12 mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
160530 Related Documents
Similar products from: Festo Pneumatic Fittings
Manufacturer warranty
160530 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 160530 with other Pneumatic Fittings products
Nominal width
Material fire test
Operating pressure for en...
Housing material
Maritime classification
Design
Pneumatic connection 1
Note on materials
Corrosion resistance clas...
Releasing ring color
Selected product
160530
Festo
push-in T-fitting QST-V0-3/8-12 360° orientable, male thread with external hexagon. Size: Standard, ...
Nominal width10 mm
Material fire testUL94 V-0 (housing) UL94 V-0 ...
Operating pressure for entire temperature range-0.95 bar ... 10 bar
Housing materialPBT-reinforced
Maritime classificationSee certificate
DesignPush-pull principle
Pneumatic connection 1R3/8
Note on materialsRoHS-compliant
Corrosion resistance class (CRC)2 - Moderate corrosion stres...
Releasing ring colorBlack
190771
Festo
multiple distributor QSLV2-1/4-3/8-U 2-fold, 360° orientable. Size: Standard, Nominal size: 5,1 mm, ...
Nominal width5.1 mm
Material fire test-
Operating pressure for entire temperature range-0.95 bar ... 10 bar
Housing material-
Maritime classificationSee certificate
DesignPush-pull principle
Pneumatic connection 1-
Note on materials-
Corrosion resistance class (CRC)-
Releasing ring color-

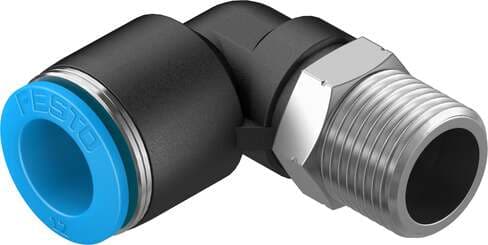

153053
