157028 Festo Pneumatic Actuators

157028 on Powermatic Associates
Festo

Part#:157028

Alt. Part#:AEVULQ-16-10-P-A

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

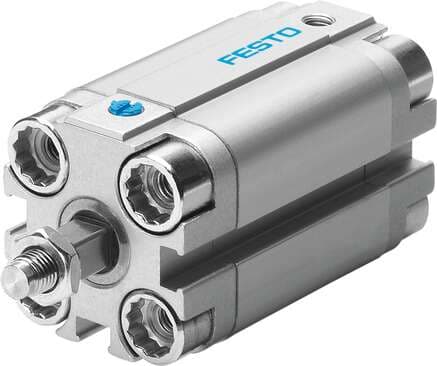

compact cylinder AEVULQ-16-10-P-A For proximity sensing. Secured against rotation by means of square piston rod. Stroke: 10 mm, Piston diameter: 16 mm, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any, Mode of operation

Product Details

  • Type code
    AEVULQ
  • Piston rod end
    Internal thread
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Impact energy in the end positions
    0.1 J
  • Additional moving mass per 10 mm stroke
    4 g
  • Material of dynamic seals
    NBR TPE-U(PU)
  • Stroke
    10 mm
  • Mode of operation
    Single-acting Pushing
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Additional weight per 10 mm stroke
    15 g
  • Flange screws material
    High-alloy stainless steel
  • Piston diameter
    16 mm
  • Cushioning
    Elastic cushioning rings/pads at both ends
  • Position sensing
    For proximity sensor
  • Variants
    Piston rod at one end
  • Ambient temperature
    -20 °C ... 80 °C
  • Design
    Piston Piston rod
  • Protection against torsion/guide
    Square piston rod
  • Theoretical force at 6 bar, advancing
    111 N
  • Pneumatic connection
    M5
  • Material of cylinder barrel
    Wrought aluminum alloy
  • Mounting position
    Any
  • Symbol
    00991729
  • Operating pressure
    1.3 bar ... 10 bar
  • Basic weight with 0 mm stroke
    89 g
  • Piston rod material
    High-alloy stainless steel
  • Moving mass at 0 mm stroke
    12 g
  • Type of mounting
    Optionally: With accessories
  • Cover material
    Wrought aluminum alloy

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
