1107097 Festo Pneumatic Components

1107097 on Powermatic Associates
Festo

Part#:1107097

Alt. Part#:EHMB-20-200

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

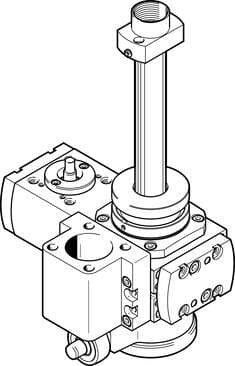

rotary/lifting module EHMB-20-200 Drive pinion diameter: 6 mm, Working stroke: 0 - 200 mm, Size: 20, Rotation angle: Endless, Toothed-belt pitch: 2 mm

Product Details

  • Working stroke
    0 mm ... 200 mm
  • Type code
    EHMB
  • Toothed belt pitch
    2 mm
  • Max. driving torque
    0.7 Nm
  • Drive shaft material
    High-alloy stainless steel
  • Design
    Electromechanical rotary lifting module with toothed belt
  • Max. input speed
    1350 1/min
  • Max. feed force Fx
    480 N
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Toothed belt material
    Polychloroprene with glass fiber
  • Size
    20
  • Gearbox type
    Belt drive
  • Max. output speed
    300 1/min
  • No-load driving torque
    < 0.07 Nm
  • Cover material
    Wrought aluminum alloy Anodized
  • Rotation angle
    Infinite
  • Drive pinion diameter
    6 mm
  • Mounting position
    Any
  • Gear ratio
    4.5:1
  • Ambient temperature
    -10 °C ... 60 °C
  • Product weight
    1851 g
  • Material of drive shaft
    Steel
  • Housing material
    Wrought aluminum alloy Anodized

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
