1107096 Festo Pneumatic Components
Part#:1107096
Alt. Part#:EHMB-20-100
Manufacturer:Festo
Category:Pneumatic Components
Product Lifecycle:Active
Product description

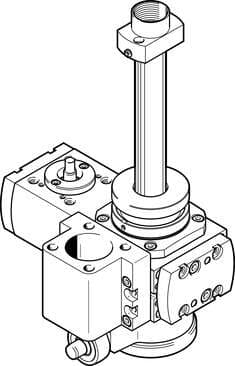

rotary/lifting module EHMB-20-100 Drive pinion diameter: 6 mm, Working stroke: 0 - 100 mm, Size: 20, Rotation angle: Endless, Toothed-belt pitch: 2 mm
Product Details
- Type code EHMB
- Gearbox type Belt drive
- Material of drive shaft Steel
- Drive shaft material High-alloy stainless steel
- Drive pinion diameter 6 mm
- Toothed belt pitch 2 mm
- Max. output speed 300 1/min
- Max. driving torque 0.7 Nm
- Product weight 1716 g
- Toothed belt material Polychloroprene with glass fiber
- Size 20
- Gear ratio 4.5:1
- Design Electromechanical rotary lifting module with toothed belt
- No-load driving torque < 0.07 Nm
- Housing material Wrought aluminum alloy Anodized
- Working stroke 0 mm ... 100 mm
- Mounting position Any
- Ambient temperature -10 °C ... 60 °C
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Rotation angle Infinite
- Max. input speed 1350 1/min
- Max. feed force Fx 480 N
- Cover material Wrought aluminum alloy Anodized
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
