WLS28-2XY710X Banner Light Bars
Part#:WLS28-2XY710X
Manufacturer:Banner
Alt. Part#:801145
Product Lifecycle:Active
Get a quick Quote!

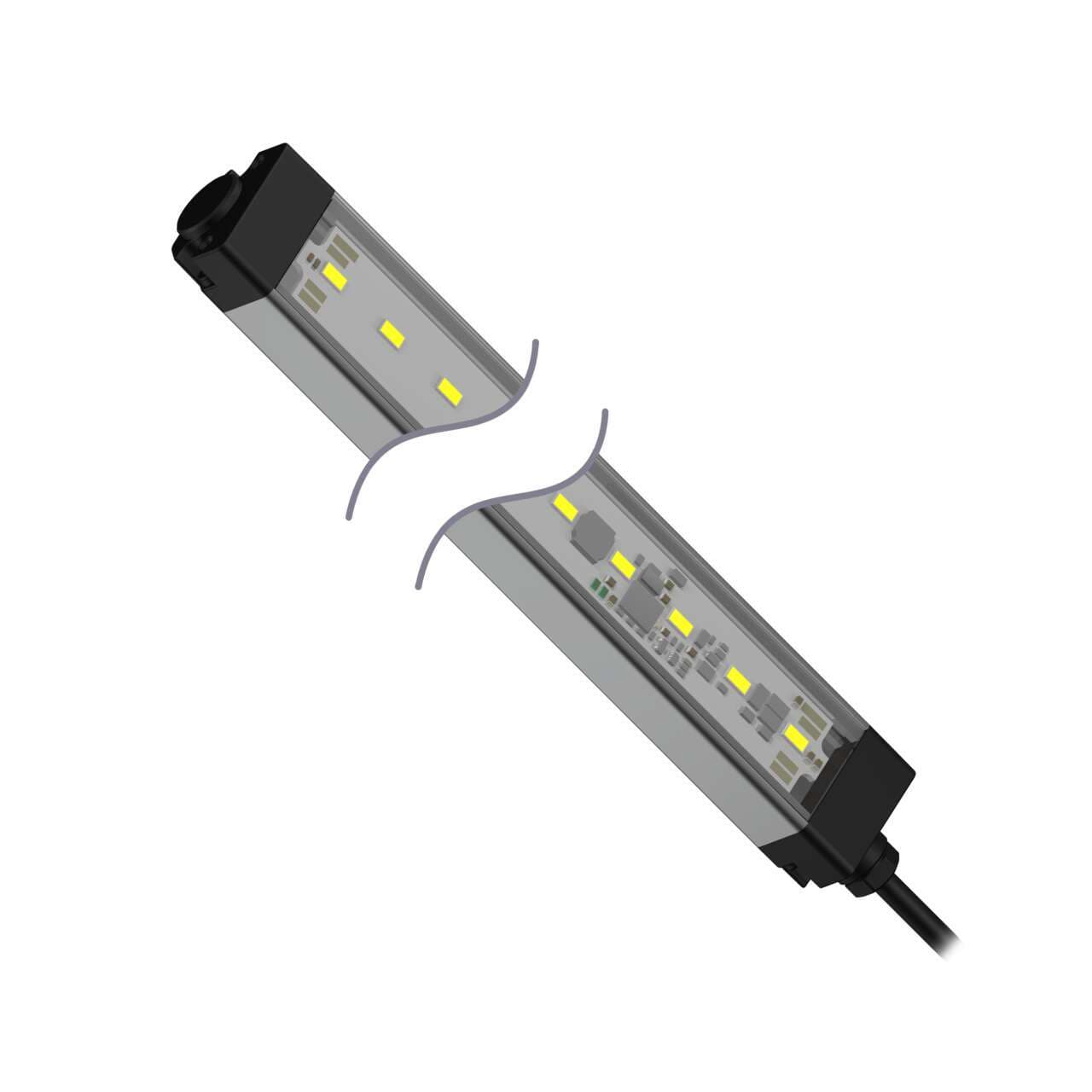

WLS28-2 Work Light Strip; Length: 710 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: Yellow; 2 m (6.5 ft) Integral Cable
About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS28-2XY710X Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 659.069176 g
- Country Of Origin MX
- Wireless No
- Pro-Editor Compatible (Discrete) No
- Modbus RTU No
- IO Link No
- Feature: Quick Disconnect No
- Feature: Chemical Resistant No
- Feature: Audible No
- Primary Window Material Polycarbonate Clear
- Feature: Hazardous Area No
- Storage Temp (°C) -40 to 70
- Min Op. Temperature (°C) -40
- Max Op. Temperature (°C) 70
- Environmental Rating IP50
- Physical Dimensions (LxWxH or DxH mm) 747.5 x 28.0 x 20.9
- Illuminated Length (LxWxH mm) 710.0
- Supply Voltage 12-30 V dc
- Dimming Option High-Low-Off
- Color 1 - Wavelength/Color Temp/Coordinates 590 nm
- Color Option 1 Yellow
- Lumens Color 1 250
- Animation Option 1 Solid On
- Connection Cable
- Color Technology Standard LED
- Number of Input Pins/Conductors 3
- Primary Housing Material Aluminum
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Product Size (mm) 28
- Power DC
- Number of Colors / Segments 1
- Illumination Yes
- Mounting Thread No Thread
- Housing Style Linear Strip
- Power Source DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
WLS28-2XY710X Description
Banner Engineering WLS28-2XY710X is a task light designed as an LED industrial strip light/bar featuring a clear plastic window with 1-color yellow LED illumination. It operates on a supply voltage of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this product are L710mm x W28mm, constructed with a polycarbonate (PC) window and an anodized aluminum housing for durability. It comes pre-wired with a 2m / 6.5ft 3-wire cable terminated with bare end flying leads, ensuring easy installation. This linear light strip is designed for surface or wall mounting and offers a degree of protection rated at IP50, making it suitable for environments where dust protection is necessary. It can operate in ambient air temperatures ranging from -40°C to +70°C. Additionally, it features 1 x digital input (12-30Vdc) for color control and provides a luminous flux of 250 lm (lumens).
Related documents WLS28-2XY710X Specs
Manufacturer warranty
