WLS28-2XWW990XPB Banner Light Bars

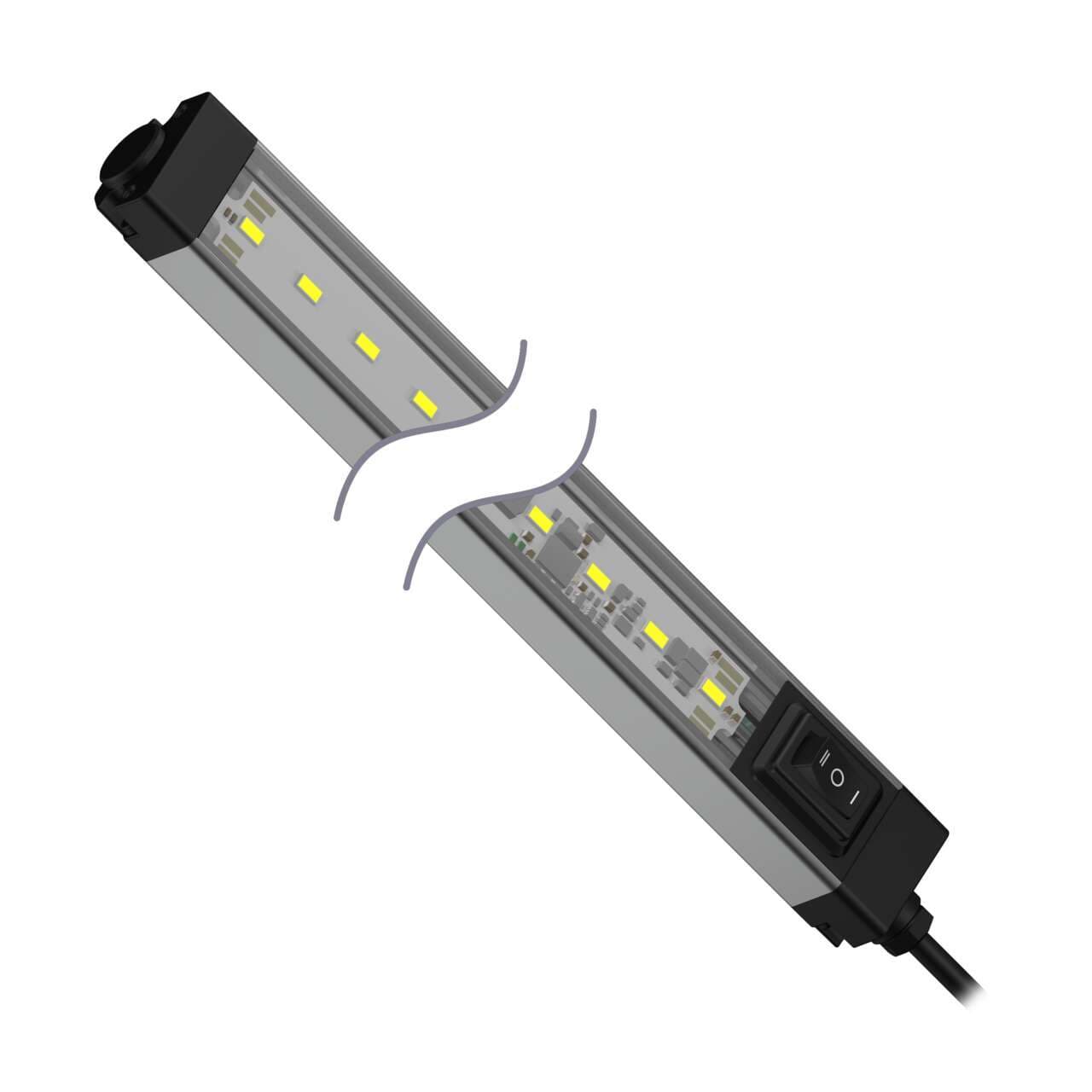

Banner WLS28-2XWW990XPB WLS28-2 Work Light Strip; Switched; Length: 990 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: Warm White; 2 m (6.5 ft) Integral Cable
Banner

Part#:WLS28-2XWW990XPB

Manufacturer:Banner

Alt. Part#:95370

Product Lifecycle:Active

Get a quick Quote!

WLS28-2 Work Light Strip; Switched; Length: 990 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: Warm White; 2 m (6.5 ft) Integral Cable

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLS28-2XWW990XPB Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    907.184 g
  • Country Of Origin
    MX
  • Wireless
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Feature: Quick Disconnect
    No
  • Feature: Audible
    No
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Illumination Switch Function
    I=Low; O=OFF; II=High
  • Primary Window Material
    Polycarbonate Clear
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    70
  • Environmental Rating
    IP50
  • Storage Temp (°C)
    -40 to 70
  • Physical Dimensions (LxWxH or DxH mm)
    1059.5 x 28.0 x 25.0
  • Illuminated Length (LxWxH mm)
    990.0
  • Number of Input Pins/Conductors
    3
  • Dimming Option
    High-Low-Off
  • Max Current Color (mA)
    2.8
  • Supply Voltage
    12-30 V dc
  • Color 1 - Wavelength/Color Temp/Coordinates
    3000K (Warm)
  • Lumens Color 1
    2800
  • Connection
    Cable
  • Animation Option 1
    Solid On
  • Color Option 1
    White
  • Color Technology
    Standard LED
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Primary Housing Material
    Aluminum
  • Illumination
    Yes
  • Power Source
    DC
  • Housing Style
    Linear Strip
  • Power
    DC
  • Number of Colors / Segments
    1
  • Product Size (mm)
    28
  • Mounting Thread
    No Thread

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLS28-2XWW990XPB Description

Banner Engineering WLS28-2XWW990XPB is a LED industrial task strip light designed for a variety of lighting needs. It features a high/low/off switch with a clear plastic window for 1-color warm white (WW) LED illumination. This task light operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this product are 990mm in length and 28mm in width. It is constructed with a polycarbonate (PC) window and an anodized aluminum housing for durability. The connection is facilitated through a pre-wired 2m / 6.5ft 3-wire cable terminated with bare end flying leads. Its linear light strip shape is designed for surface or wall mounting. The WLS28-2XWW990XPB offers a degree of protection rated at IP50 and can operate in ambient air temperatures ranging from -40°C to +70°C. It includes 1 x digital input (12-30Vdc) for color control and delivers a luminous flux of 2800 lm (lumens).

Related documents WLS28-2XWW990XPB Specs

WLS28-2XWW990XPB 175008.pdf
