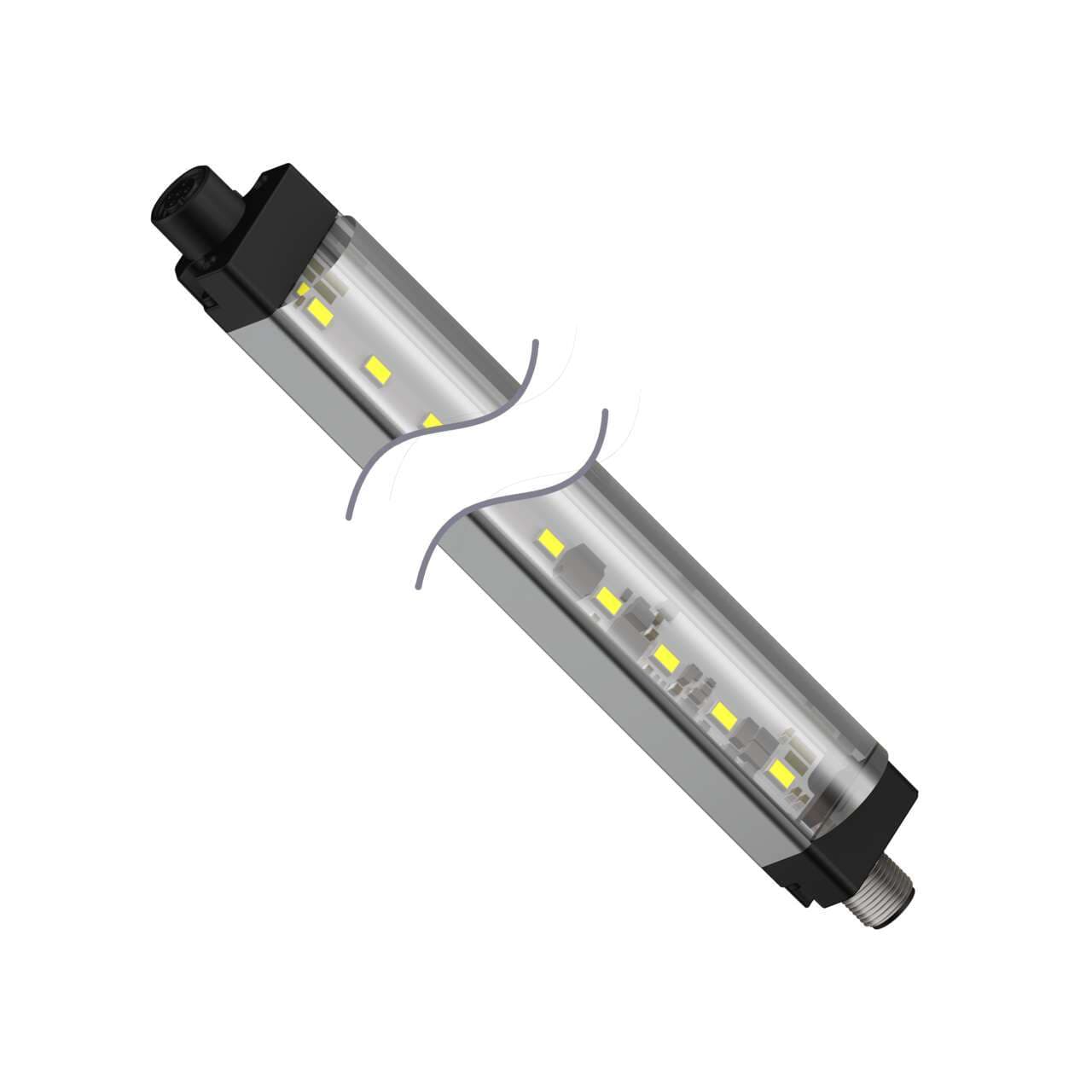

WLS28-2CW990L25XQ Banner Light Bars

Banner WLS28-2CW990L25XQ WLS28-2 Work Light Strip; Length: 990 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: White; 25 Deg Lens; Cascadable; 4-pin M12 Integral QD
Banner

Part#:WLS28-2CW990L25XQ

Manufacturer:Banner

Alt. Part#:87832

Product Lifecycle:Active

Get a quick Quote!

WLS28-2 Work Light Strip; Length: 990 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: White; 25 Deg Lens; Cascadable; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLS28-2CW990L25XQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    1043.533755 g
  • Country Of Origin
    MX
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • IO Link
    No
  • Modbus RTU
    No
  • Feature: Chemical Resistant
    No
  • Feature: Cascade
    Yes
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Primary Window Material
    Acrylic Clear
  • Lens Focusing Angle (°)/Field of View
    25
  • Supply Voltage
    12-30 V dc
  • Min Op. Temperature (°C)
    -40
  • Storage Temp (°C)
    -40 to 70
  • Max Op. Temperature (°C)
    70
  • Environmental Rating
    IP50
  • Illuminated Length (LxWxH mm)
    990.0
  • Physical Dimensions (LxWxH or DxH mm)
    1040.0 x 28.0 x 32.2
  • Color Technology
    Standard LED
  • Dimming Option
    High-Low-Off
  • Color 1 - Wavelength/Color Temp/Coordinates
    6500K (Cool)
  • Animation Option 1
    Solid On
  • Lumens Color 1
    2100
  • Color Option 1
    White
  • Connection
    Integral QD
  • Number of Input Pins/Conductors
    4
  • Quick Disconnect Type
    M12 (Euro)
  • Number of Colors / Segments
    1
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Mounting Thread
    No Thread
  • Primary Housing Material
    Aluminum
  • Power
    DC
  • Product Size (mm)
    28
  • Illumination
    Yes
  • Housing Style
    Linear Strip
  • Power Source
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLS28-2CW990L25XQ Description

Banner Engineering WLS28-2CW990L25XQ is a cascadable LED industrial strip light designed for task lighting applications. It features a 25° window with 1-color Cool White (W) LED illumination, providing a luminous flux of 2100 lm. This product operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this linear light strip are L990mm x W28mm, constructed with an acrylic window and an anodized aluminum housing. It comes pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The WLS28-2CW990L25XQ offers a degree of protection rated at IP50 and can be mounted on surfaces or walls. It is designed to operate in ambient air temperatures ranging from -40°C to +70°C and includes 1 x digital input (12-30Vdc) for color control.

Related documents WLS28-2CW990L25XQ Specs

WLS28-2CW990L25XQ 175008.pdf
