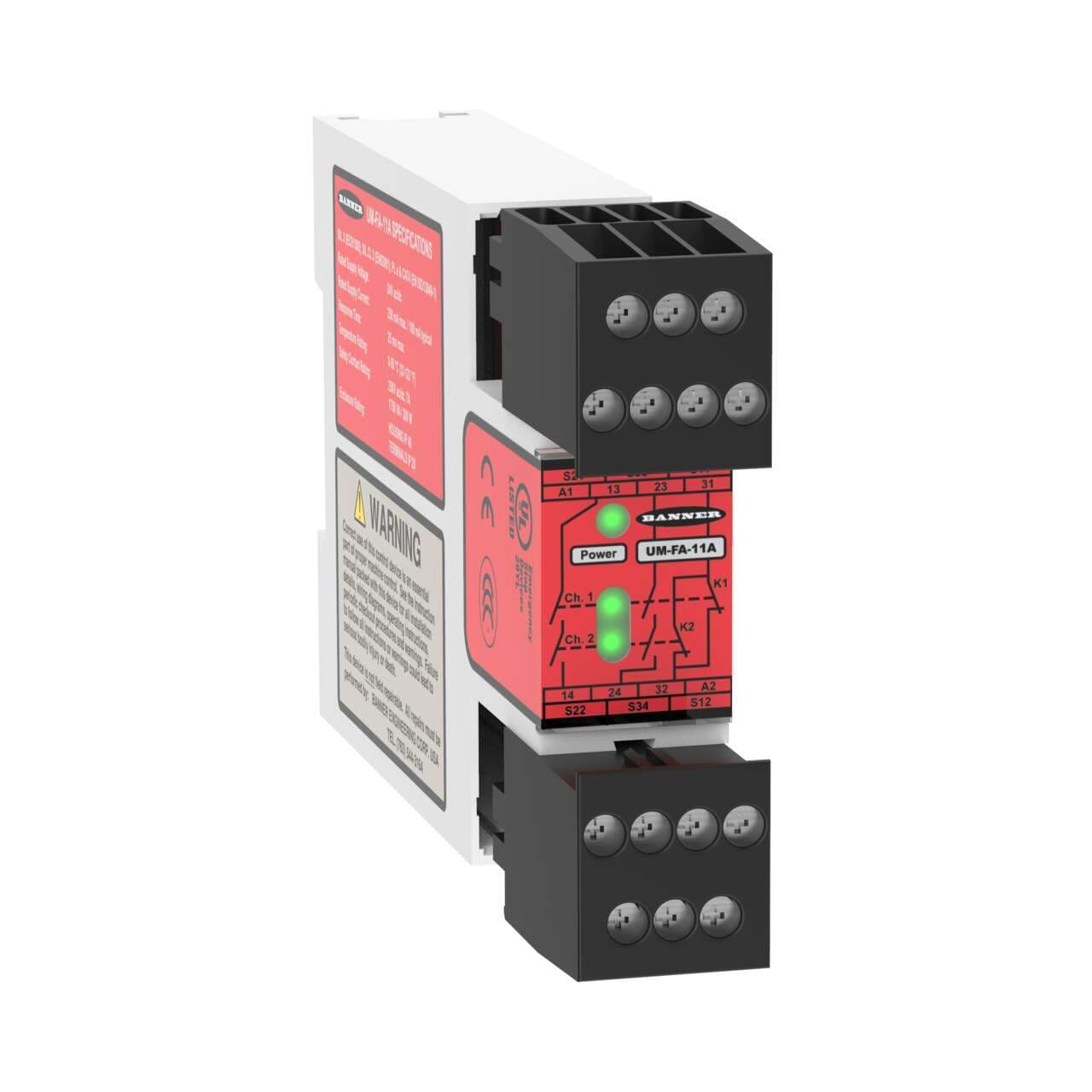

UM-FA-11A Banner Safety Relays

Product Details

• Weight
  13.60776 g
• Country Of Origin
  US
• PCCC
  No
• EtherNet/IP
  No
• Muting
  No
• In-Series Diagnostics
  No
• Recovery Time
  250
• Modbus/TCP
  No
• PROFINET
  No
• Light Curtains/Scanner without EDM Input
  Yes
• Gate Switch (NC/NO) Input
  No
• Gate Switch (NC/NC) Input
  Yes
• Light Curtains/Scanner with EDM Input
  Yes
• Gate Switch (OSSD) Input
  Yes
• E-Stops/Rope Pulls
  Yes
• SISTEMA
  PFHd = 5.0 x 10-10
• SIL Rating
  3
• Safety Mat
  No
• PL Rating
  e
• Safety Category Rating
  4
Electrical Life (Cycles @ VA)
1,000,000 @ 450 VA
IP Rating
IP20
Removable Terminals
Yes
Supply Voltage
24 V ac/dc +/- 10%
Power Consumption
2 W / 2 VA
Number of Safe Inputs
1
Common Ethernet Protocol
No
Motor Speed
No
Input Resistance
100 Ω max. per channel
Safety Input - Single Channel
40-100 mA @ 24 V ac/dc +/- 10%
Vibration
10-55 Hz at 0.35 mm
Terminal Type
Screw
Recovery Time (ms)
250
Response Time (ms)
25 (typical)
Mechanical Life (Operations in Millions)
20
Splittable Safe Output
No
Safe Output Rating
Relay - 7 A
Independently Controlled Safe Outputs
1
Non Safe Output Rating
Relay - 7 A
Non Safe Output Configuration
1 NC
Output Configuration
2 NO
Safety Input - Dual Channel (Solid-State)
5-20 mA @ 18-28 V dc (PNP)
Safety Input - Reset
40-100 mA @ 24 V ac/dc +/- 10%
Safety Input - Dual Channel (Dry Contact)
10-20 mA @ 12 V dc
Input Configuration
2 OSSD, 2 NC, or 1 NC
Input Operation
Simultaneous or Concurrent
Relative Humidity
90% @ 50° C
Max Operating Temperature ( °C)
50
LCD Display
No
Dimension (H x W x D in mm)
84 x 22.5 x 118
Device Type
Safety Relay
Expandable
No
Power
AC/DC Universal
Safety Module Type
Universal Module
