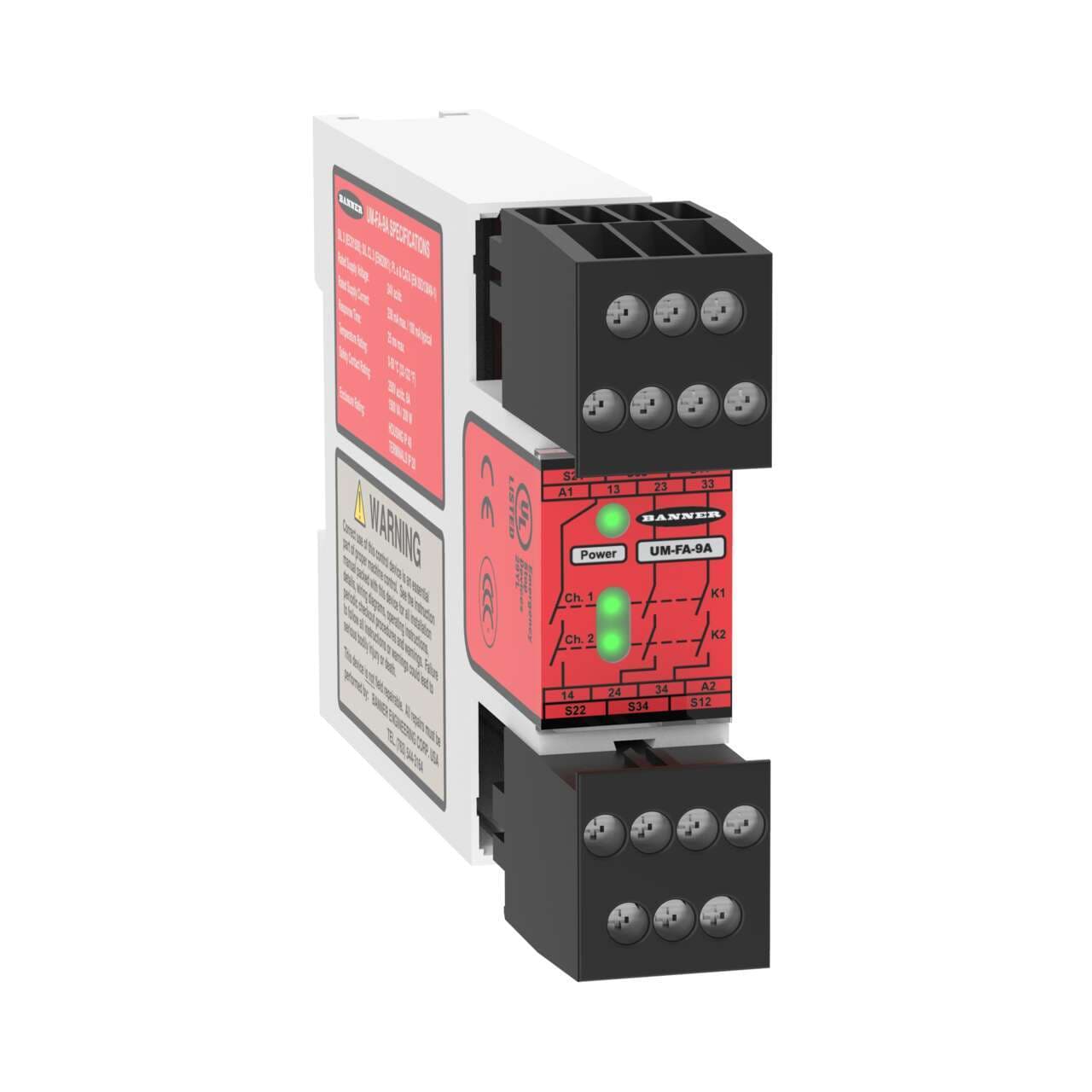

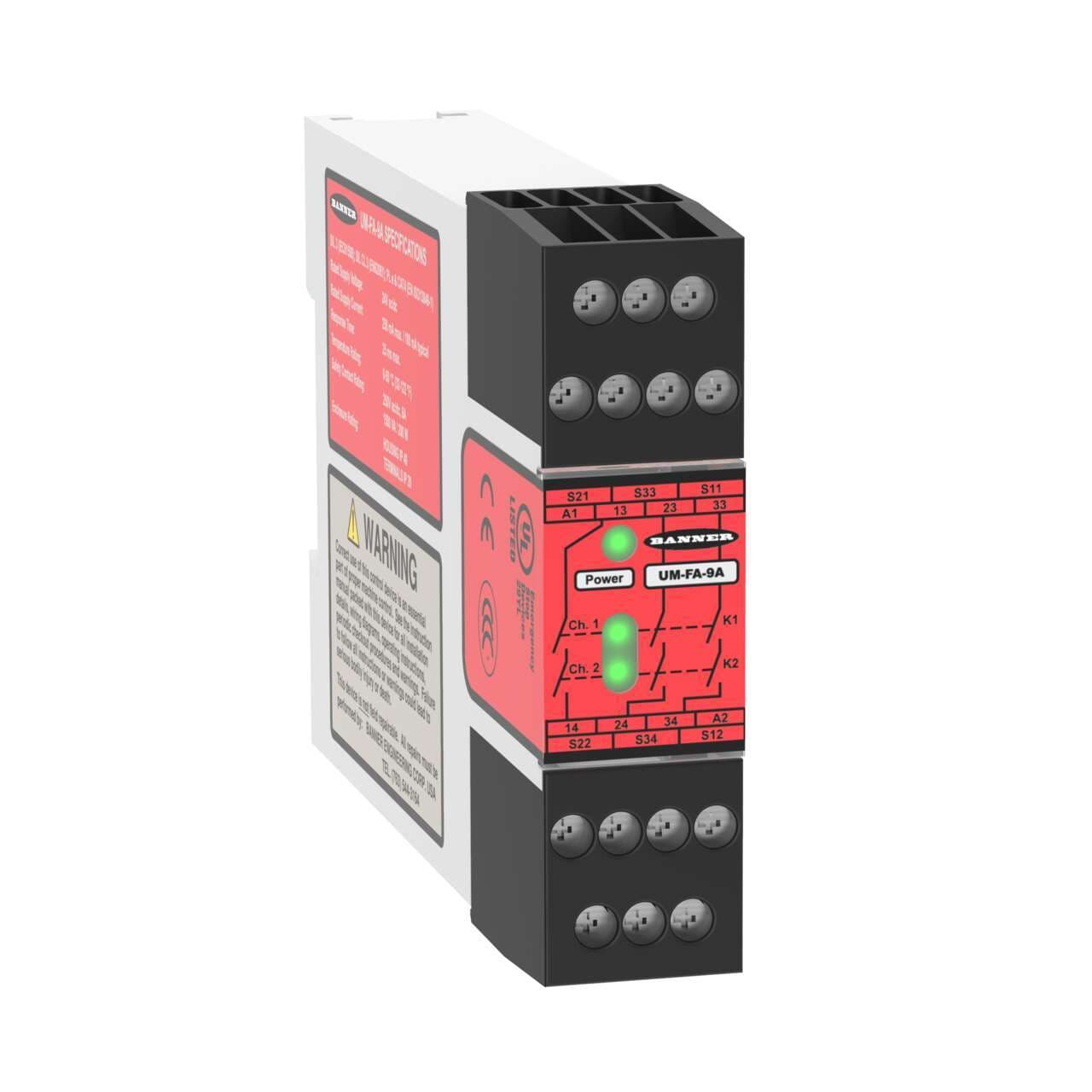

UM-FA-9A Banner Safety Relays

Product Details

• Weight
  13.60776 g
• Country Of Origin
  US
• Muting
  No
• Motor Speed
  No
• Gate Switch (NC/NC) Input
  Yes
• IP Rating
  IP20
• Terminal Type
  Screw
• PCCC
  No
• Recovery Time
  250
• In-Series Diagnostics
  No
• Light Curtains/Scanner with EDM Input
  Yes
• Modbus/TCP
  No
• EtherNet/IP
  No
• Gate Switch (NC/NO) Input
  No
• E-Stops/Rope Pulls
  Yes
• SISTEMA
  PFHd = 5.0 x 10-10
• Splittable Safe Output
  No
• Supply Voltage
  24 V ac/dc +/- 10%
• Response Time (ms)
  25 (typical)
• Safety Input - Dual Channel (Solid-State)
  5-20 mA @ 18-28 V dc (PNP)
Safety Input - Dual Channel (Dry Contact)
10-20 mA @ 12 V dc
Safety Module Type
Universal Module
PROFINET
No
Common Ethernet Protocol
No
Light Curtains/Scanner without EDM Input
Yes
Gate Switch (OSSD) Input
Yes
Safety Input - Single Channel
40-100 mA @ 24 V ac/dc +/- 10%
Input Resistance
100 Ω max. per channel
Safety Mat
No
SIL Rating
3
Safety Category Rating
4
PL Rating
e
Electrical Life (Cycles @ VA)
1,000,000 @ 450 VA
Power Consumption
2 W / 2 VA
Recovery Time (ms)
250
Vibration
10-55 Hz at 0.35 mm
Removable Terminals
Yes
Mechanical Life (Operations in Millions)
20
Safe Output Rating
Relay - 6 A
Non Safe Output Rating
N/A
Independently Controlled Safe Outputs
1
Input Configuration
2 OSSD, 2 NC, or 1 NC
Safety Input - Reset
40-100 mA @ 24 V ac/dc +/- 10%
Output Configuration
3 NO
Number of Safe Inputs
1
Input Operation
Simultaneous or Concurrent
Max Operating Temperature ( °C)
50
Device Type
Safety Relay
Expandable
No
LCD Display
No
Relative Humidity
90% @ 50° C
Power
AC/DC Universal
Dimension (H x W x D in mm)
84 x 22.5 x 118
