TTR700BMSB7B-2.0FL-CTR Banner Safety Light Curtains

Name: TTR700BMSB7B-2.0FL-CTR
Brand: Banner

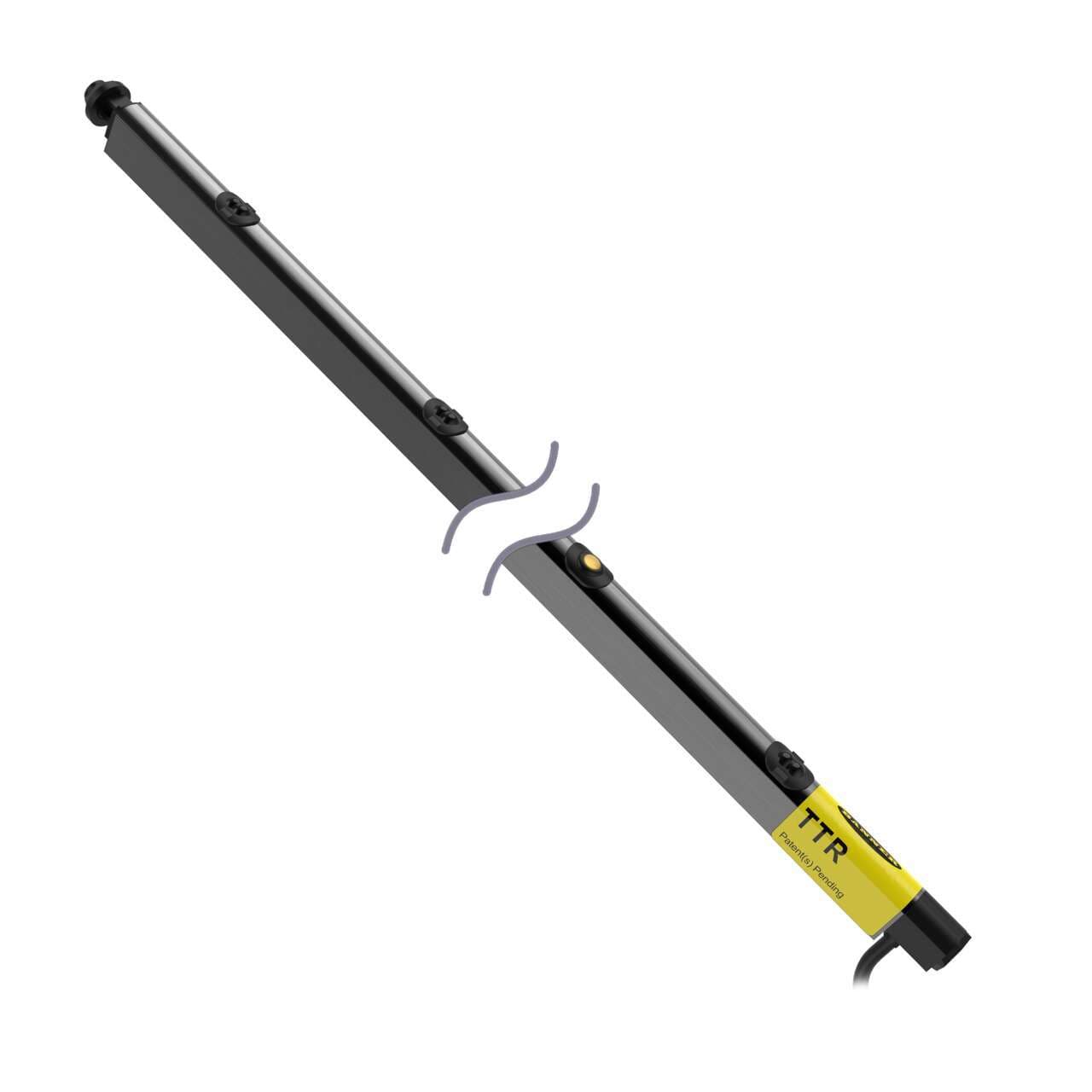

Banner TTR700BMSB7B-2.0FL-CTR TTR Series 7 Beam Sensor Array 27.57 in Between Frame; Beam Spacing: 93.1 mm; Range: 120 mm Diffuse; Output: Bimodal; Input: 18-30 V dc; 2 m (6.5 ft) Flying Leads Endcap B: Point Up / Hex & Round

Part#:TTR700BMSB7B-2.0FL-CTR

Manufacturer:Banner

Alt. Part#:809792

Product Lifecycle:Active

Get a quick Quote!

TTR Series 7 Beam Sensor Array 27.57 in Between Frame; Beam Spacing: 93.1 mm; Range: 120 mm Diffuse; Output: Bimodal; Input: 18-30 V dc; 2 m (6.5 ft) Flying Leads Endcap B: Point Up / Hex & Round

About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the TTR700BMSB7B-2.0FL-CTR Banner price in the box on the right side or send a quick quote.

Product Details

Weight
385.5532 g
Country Of Origin
MX
Beam to Beam Spacing [mm]
93.1
IP Rating
IP50
Number of Beams
7
Distance to First Beam [mm]
70.7
Max Op. Temperature (°C)
55
Min Op. Temperature (°C)
-10
NEMA Rating
N/A
Max Op. Relative Humidity (%)
95% @ 55°C
Adjustments
N/A
Operation
Light/Dark Operate
Indicator
Indicator LEDs
Delay at Power-up (ms)
1500
Lens Material
Polycarbonate
Output response time (ms)
1
Power Supply/Supply Voltage
18-30 V dc
Number of Pins
4
Outputs
Bimodal
Slot Overall Depth (mm)
19

Quick Disconnect Type

No QD

Connection

Cable

Slot Depth/Array Length (mm)

700

Housing Style

Roller Conveyor

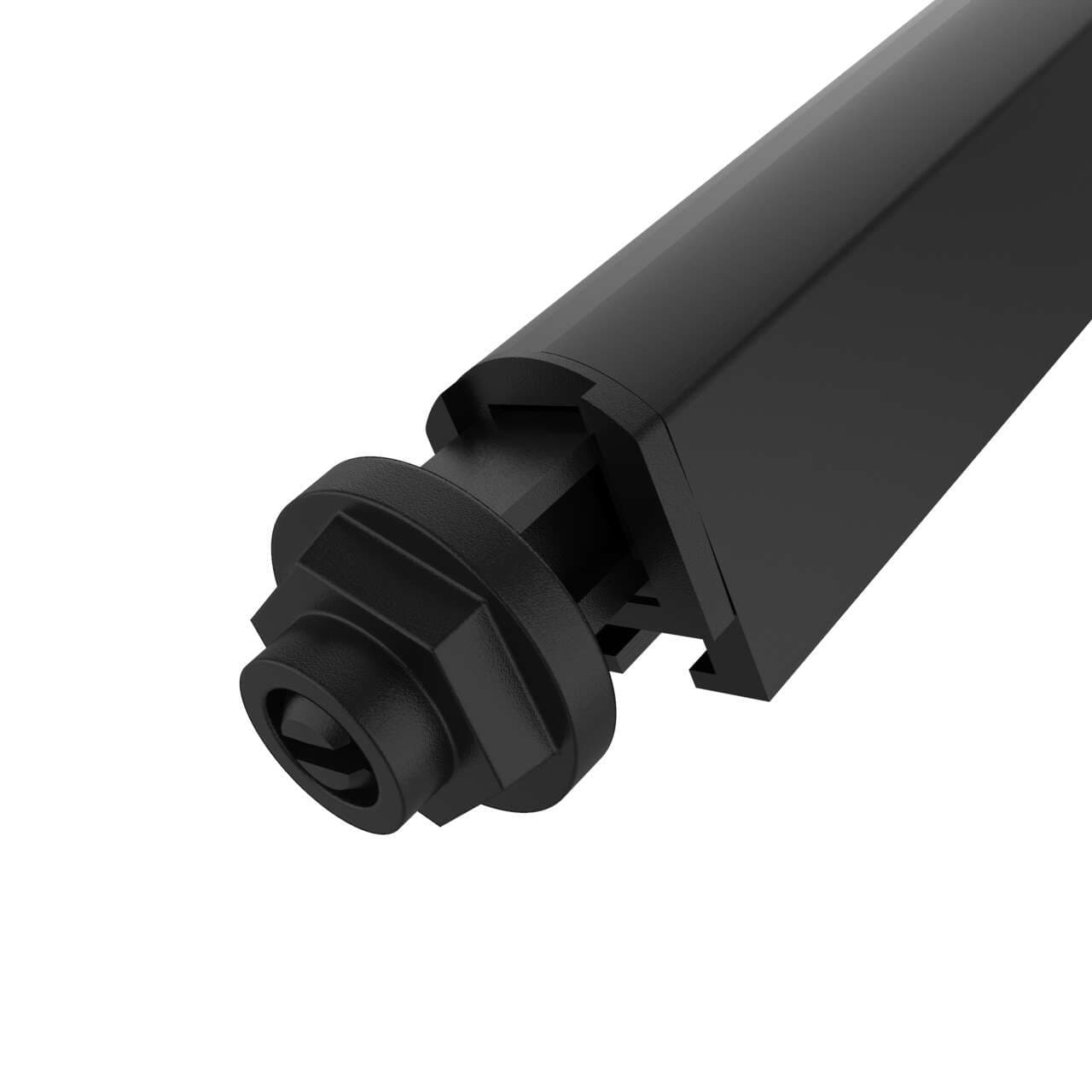

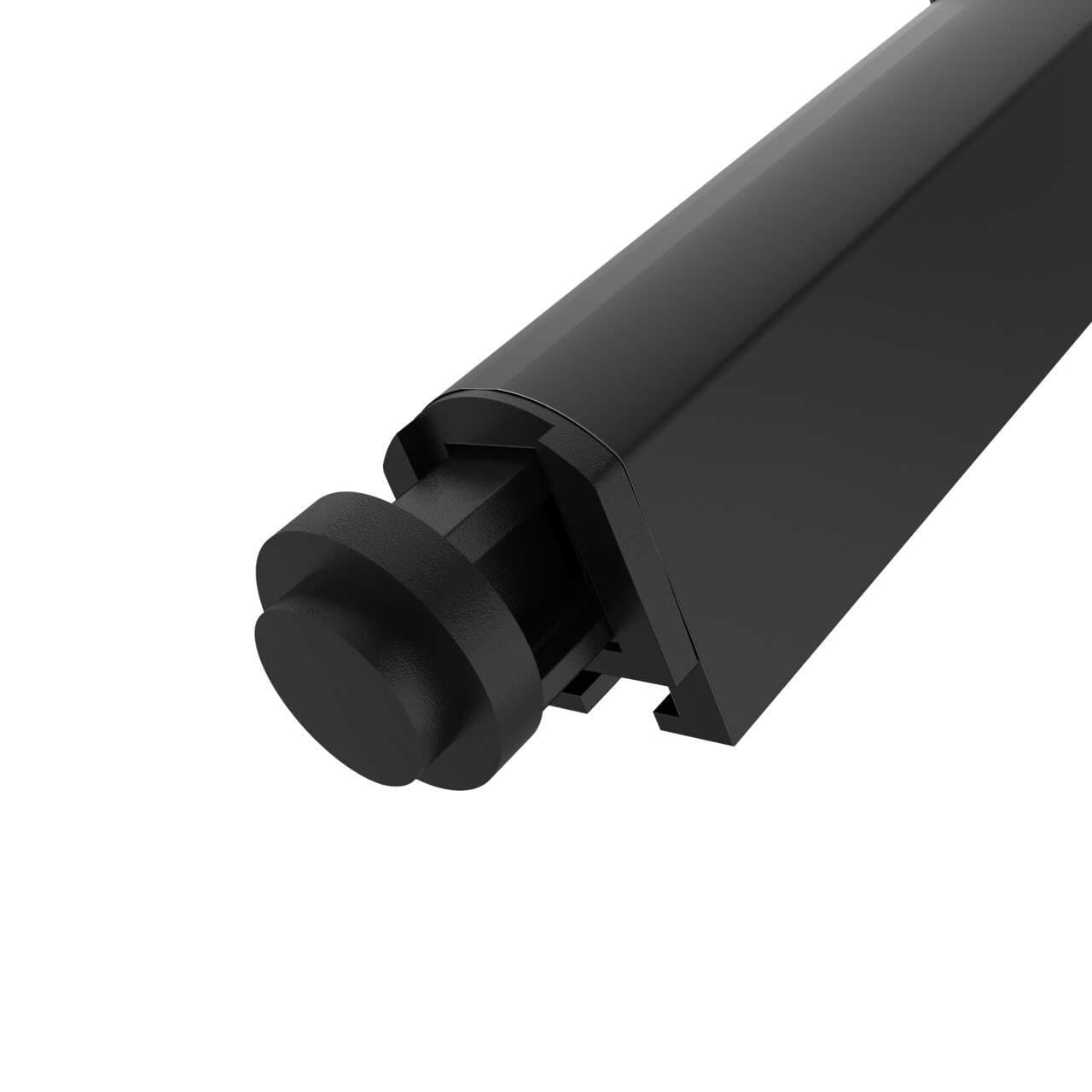

End Cap Type

B: Hex Point Up / Spring 11 mm Hex - 8 mm Round

Primary Housing Material

Black Anodized Aluminum

Sensing Mode (Detailed)

Diffuse

Max Sensing Range (mm)

120

Power

Cable Length (m)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

TTR700BMSB7B-2.0FL-CTR Description

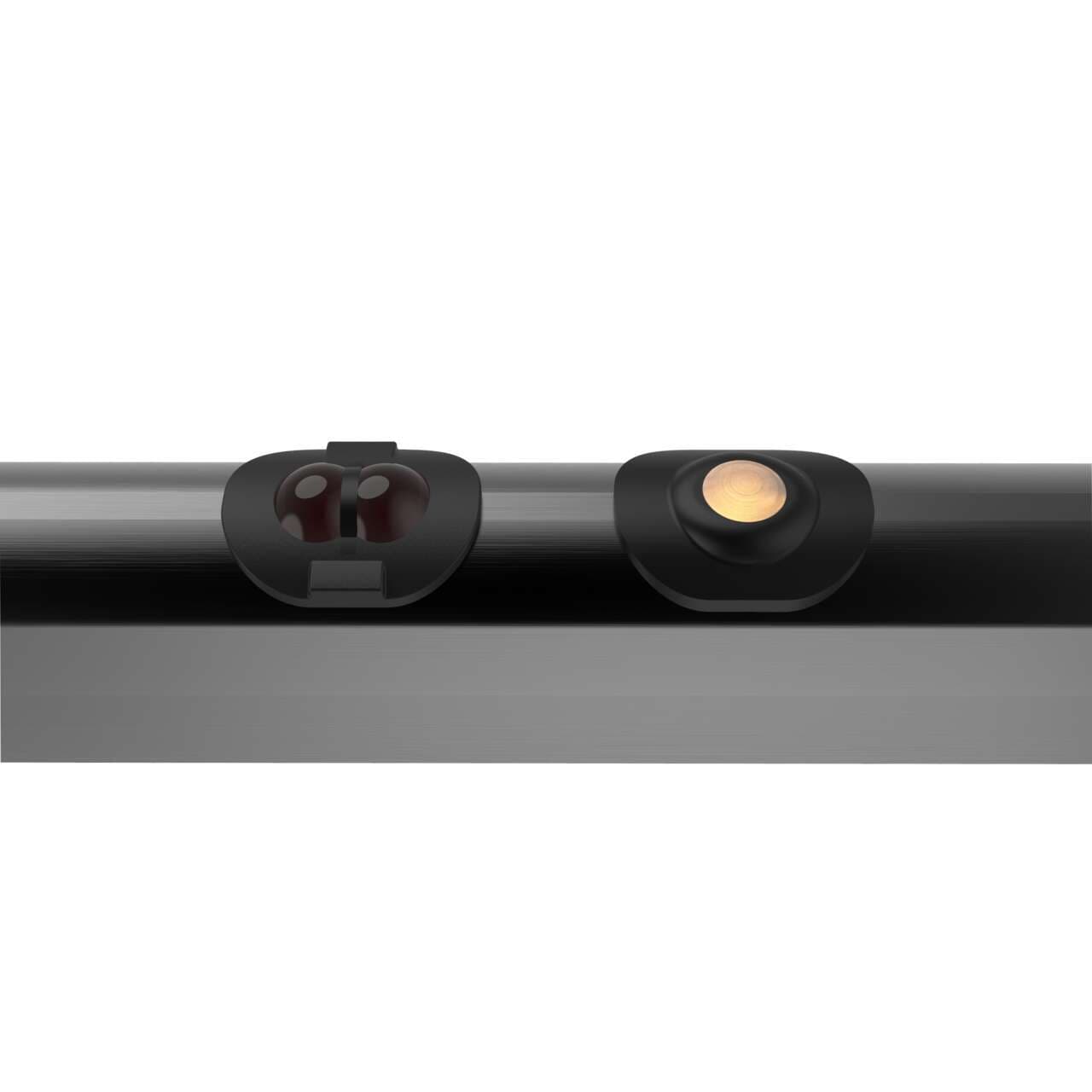

Banner Engineering TTR700BMSB7B-2.0FL-CTR is a sensor array designed with a diffuse mode featuring 7 beams. This part is pre-wired with a 2-meter cable that has bare end flying leads for connection. It has a rectangular shape with dimensions including a 700mm array length and a beam spacing/pitch of 93.1mm. The supply voltage required for operation ranges from 18Vdc to 30Vdc, with a nominal voltage of 24Vdc. It is designed to operate within an ambient air temperature range of -10 to +70 degrees Celsius. The sensor offers a degree of protection rated at IP50. It includes 1 digital output (PNP/NPN transistor) and has a sensing distance of 120mm. The light emitted by the sensor is in the infrared (IR) spectrum with a wavelength of 940 nm.
