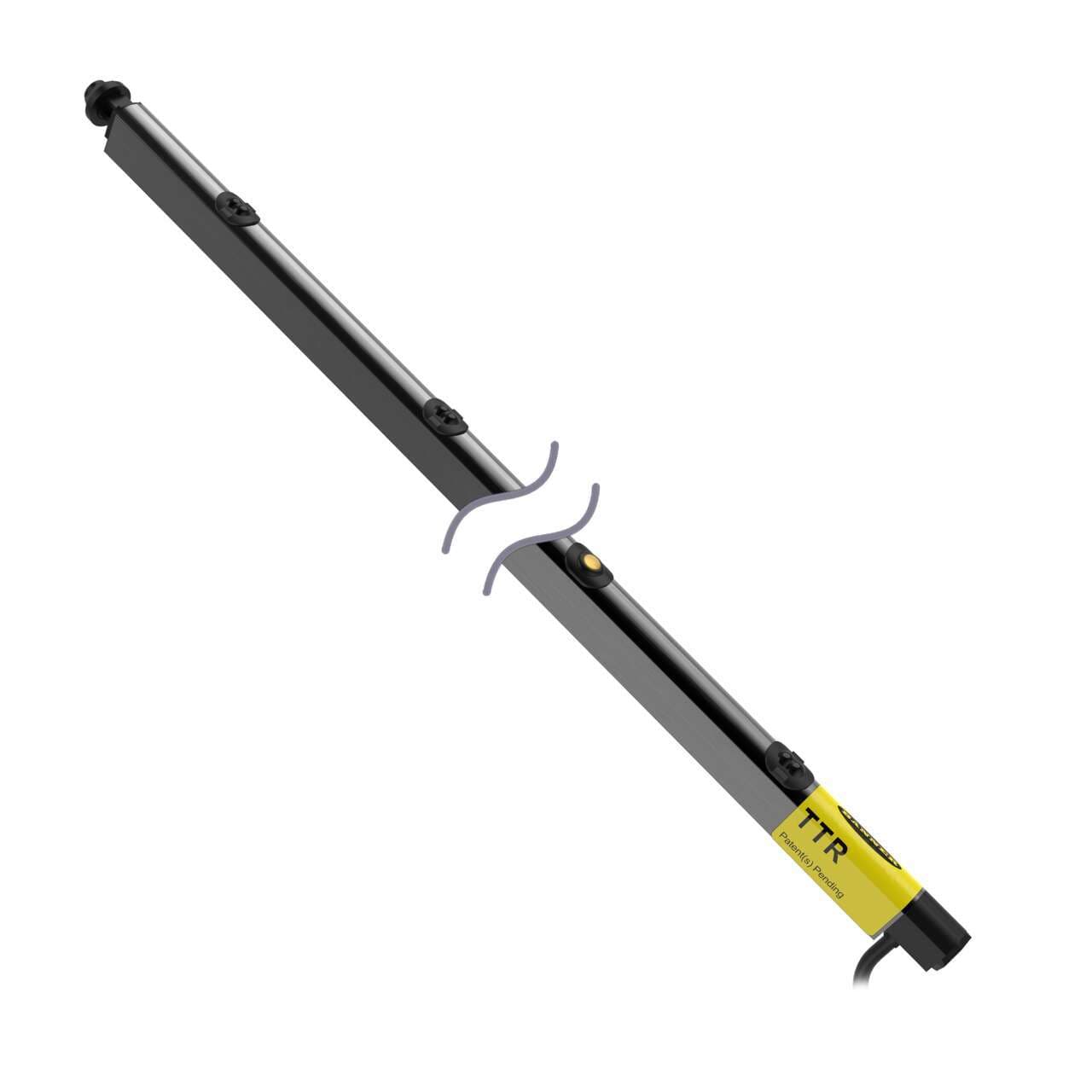

TTR1295RPSD7T-1.0Q3-CTR Banner Safety Light Curtains
Part#:TTR1295RPSD7T-1.0Q3-CTR
Alt. Part#:810098
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
TTR Series 7 Beam Sensor Array 51.0 inch Between Frame; Beam Spacing: 162 mm; Range: 120 mm Diffuse; Output: DO PNP; Input: 18-30 V dc; 1 m (3.3 ft) M8 Conn. T: T-Slot Mount Endcap
Product Details
- Weight 517.09488 g
- Country Of Origin MX
- Number of Beams 7
- Beam to Beam Spacing [mm] 162
- Distance to First Beam [mm] 161.5
- IP Rating IP50
- NEMA Rating N/A
- Min Op. Temperature (°C) -10
- Lens Material Polycarbonate
- Max Op. Relative Humidity (%) 95% @ 55°C
- Indicator Indicator LEDs
- Max Op. Temperature (°C) 55
- Operation Dark Operate
- Delay at Power-up (ms) 1500
- Adjustments N/A
- Output response time (ms) 1
- Power Supply/Supply Voltage 18-30 V dc
- Number of Pins 4
- Quick Disconnect Type M8 (Pico)
- Connection Pigtail QD
- Slot Overall Depth (mm) 19
- Max Sensing Range (mm) 120
- Outputs PNP
- Slot Depth/Array Length (mm) 1295
- Primary Housing Material Black Anodized Aluminum
- End Cap Type T: T-Slot Mounting
- Cable Length (m) 1
- Housing Style Roller Conveyor
- Sensing Mode (Detailed) Diffuse
- Power DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TTR1295RPSD7T-1.0Q3-CTR on Powermatic Associates is $344.00. Order now.
About the product
TTR Series 7 Beam Sensor Array 51.0inch Between Frame, Beam Spacing: 162 mm Range: 120 mm Diffuse, Output: DO PNP Input: 18 - 30 V dc, M8 Conn. T: T-Slot Mount Endcap 1m (3 ft)
