T8LXRYPQP Banner Electronic Components

T8LXRYPQP on Powermatic Associates
Banner

Part#:T8LXRYPQP

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

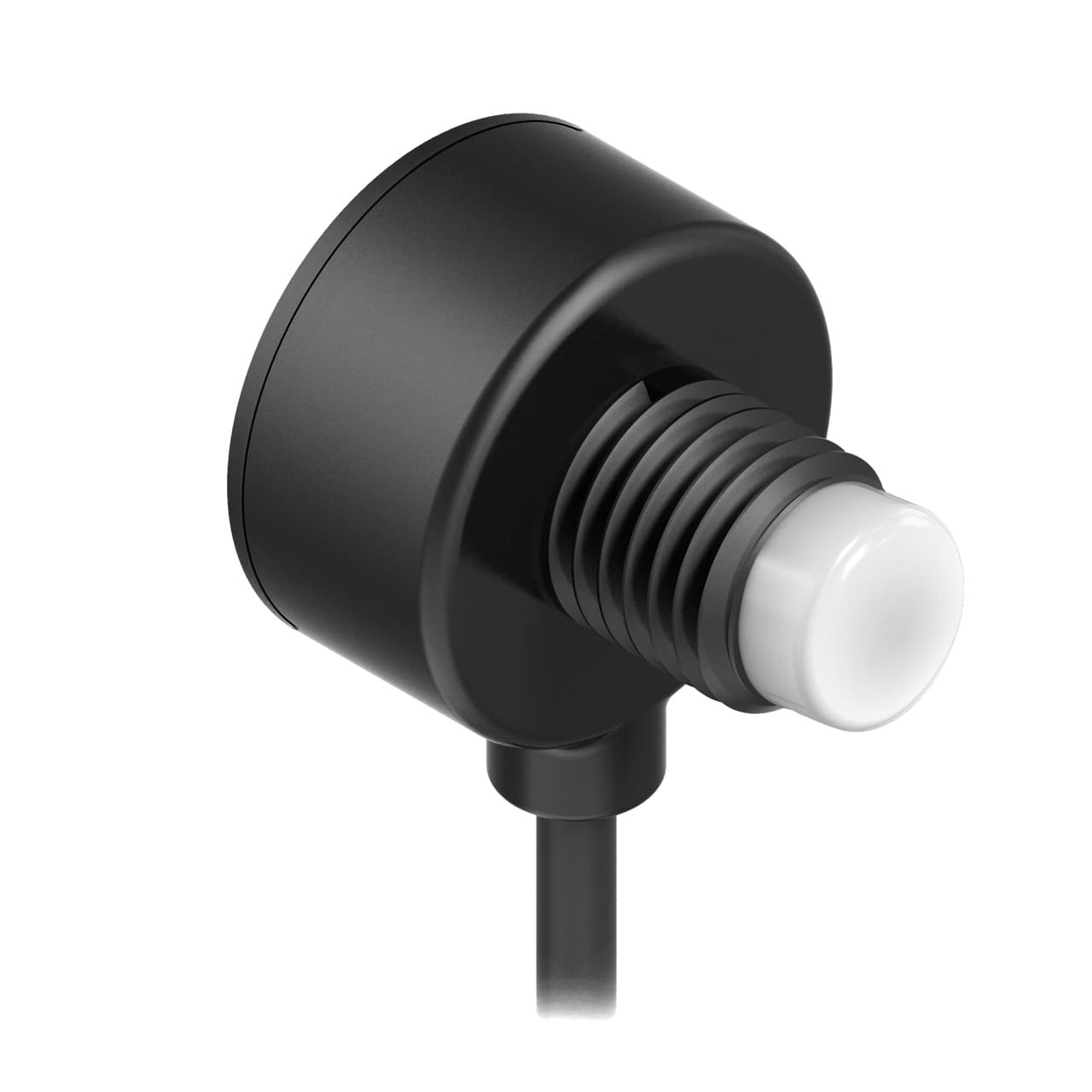

T8 Series EZ-LIGHT: 2-Color General Purpose Indica, Voltage: 10-30V dc; Housing: Polycarbonate; IP67, Input: PNP; Colors: Red Yellow, 150 mm (6 in) PVC Pigtail

Product Details

  • Wireless
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Multi-Color Device
    Single Color On
  • Feature: Audible
    No
  • Feature: Chemical Resistant
    No
  • Primary Window Material
    Thermoplastic Diffused
  • Feature: Hazardous Area
    No
  • Primary Housing Color
    Black
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    50
  • Environmental Rating
    IP67
  • Physical Dimensions (LxWxH or DxH mm)
    19.1 x 15.8
  • Max Input Response Time (ms)
    1
  • Input Type
    PNP
  • Supply Voltage
    10-30 V dc
  • Number of Input Pins/Conductors
    4
  • Max Current Color (mA)
    20
  • Color Option 3
    Yellow
  • Color Option 2
    Red
  • Quick Disconnect Type
    M12 (Euro)
  • Color Technology
    Standard LED
  • Connection
    Pigtail QD
  • Product Size (mm)
    8
  • Primary Housing Material
    ABS/Polycarbonate
  • Number of Colors / Segments
    2
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Mounting Thread
    M8 x 1.0
  • Power Source
    DC
  • Indication
    Yes
  • Power
    DC
  • Housing Style
    T-Style

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

T8LXRYPQP Related Documents

T8L EZ-LIGHT-1630952625811.stpT8L EZ-LIGHT-1630952625790.pdfIndicator Lights, 3-Color General-Purpose Indicators -- Datasheet-1630952625796.pdf
