Part#:T8LXBYPQP

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

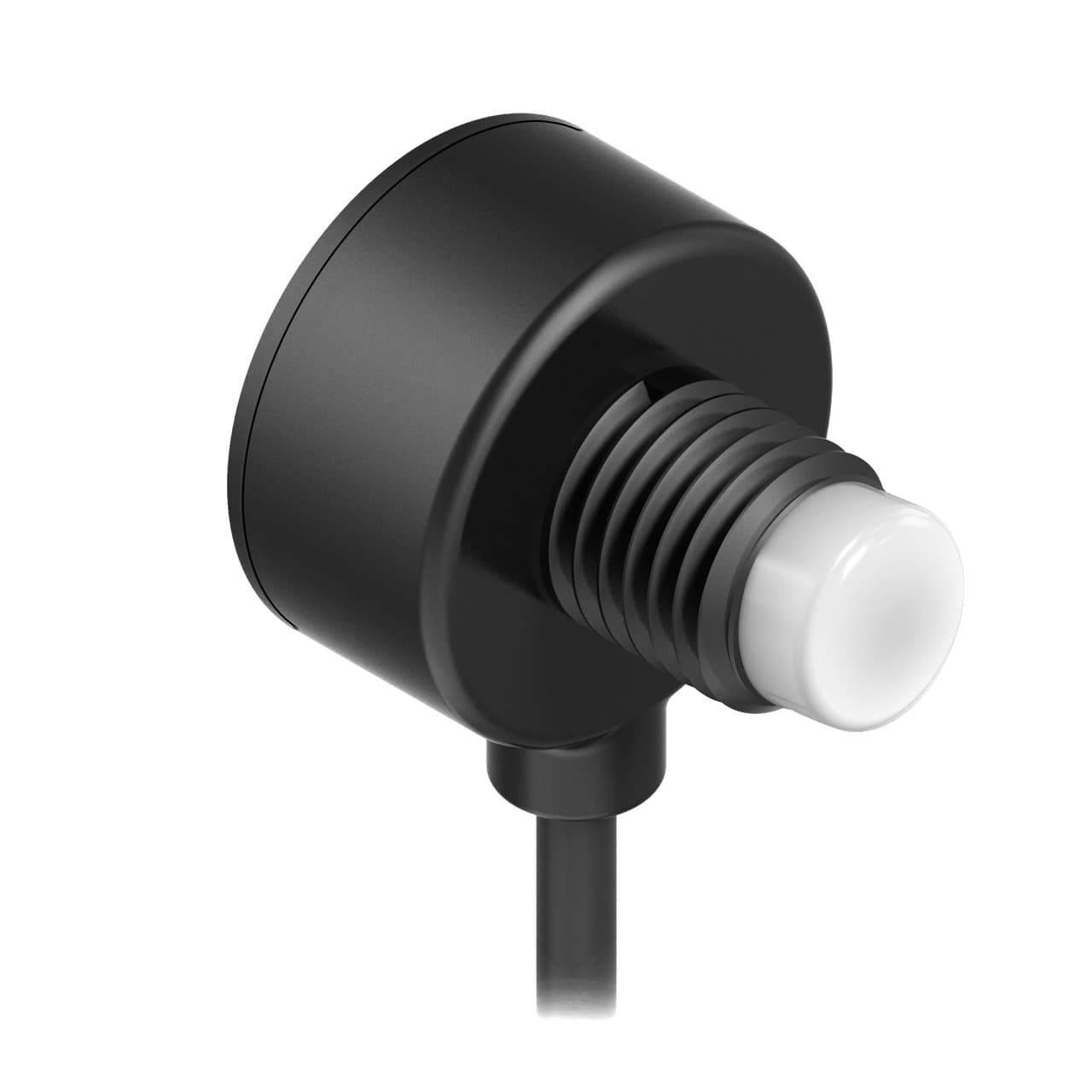

Banner Engineering T8LXBYPQP, part of the EZ-LIGHT series, is a pilot light designed with a 2-color B/Y (blue/yellow) color pattern LED illumination. This LED pilot light indicator features a thermoplastic diffused window and an ABS/Polycarbonate housing/base. It has an 8mm / 5/16" indicator diameter and is pre-wired with a 6" / 15cm pigtail that terminates with a 4-pin M12 Euro-style QD connector. The housing color is black, and it operates on a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nom.). The T8LXBYPQP is designed for flush mounting in an 8mm hole with an M8 thread and can operate in ambient air temperatures ranging from -40°C to +50°C. It is rated IP67 for protection and has a T-style cylindrical body with mounting thread. The current consumption is 20mA, and it includes 2 x digital inputs (10-30Vdc; PNP) for color control.

Product Details

  • Modbus RTU
    No
  • Wireless
    No
  • Feature: Quick Disconnect
    Yes
  • Pro-Editor Compatible (Discrete)
    No
  • IO Link
    No
  • Multi-Color Device
    Single Color On
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Primary Window Material
    Thermoplastic Diffused
  • Primary Housing Color
    Black
  • Min Op. Temperature (°C)
    -40
  • Environmental Rating
    IP67
  • Max Op. Temperature (°C)
    50
  • Input Type
    PNP
  • Physical Dimensions (LxWxH or DxH mm)
    19.1 x 15.8
  • Max Input Response Time (ms)
    1
  • Supply Voltage
    10-30 V dc
  • Number of Input Pins/Conductors
    4
  • Color Option 3
    Yellow
  • Max Current Color (mA)
    20
  • Color Option 2
    Blue
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Pigtail QD
  • Color Technology
    Standard LED
  • Product Size (mm)
    8
  • Mounting Thread
    M8 x 1.0
  • Housing Style
    T-Style
  • Cable Length (m)
    2
  • Power Source
    DC
  • Number of Colors / Segments
    2
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Indication
    Yes
  • Primary Housing Material
    ABS/Polycarbonate
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
