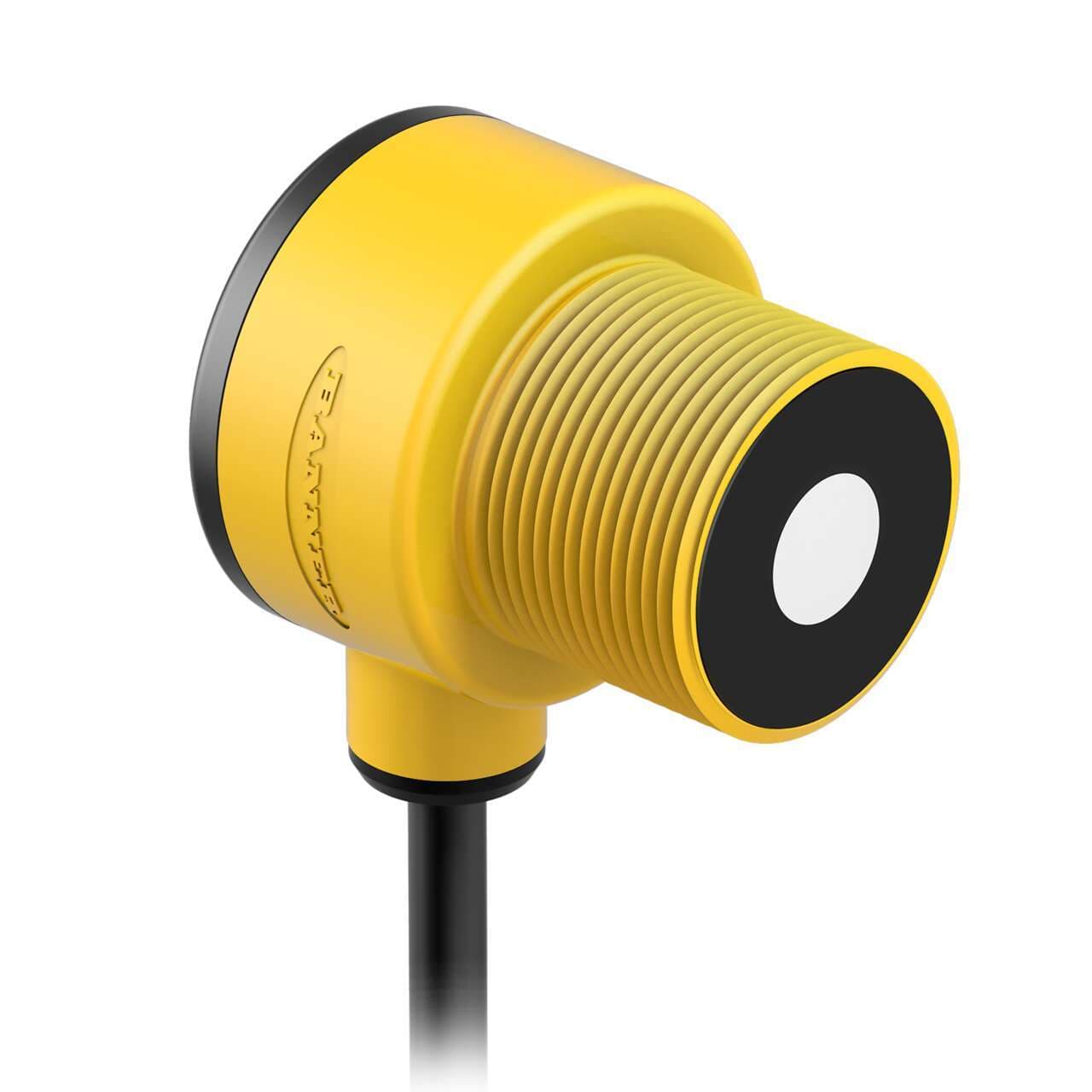

T30UXIAQPMA Banner Ultrasonic Sensors

Product Details

• Weight
  136.0776 g
• Country Of Origin
  CN
• Profibus
  No
• 1-wire Serial Interface
  No
• Wireless
  No
• SSI
  No
• RS-422
  No
• RS-485
  No
• PROFINET
  No
• RS-232
  No
• IO Link
  No
• Common Ethernet Protocol
  No
• Application: Ultrasonic
  Yes
• Feature: Chemical Resistant
  No
• Feature: Timing (Hold/Delay)
  No
• Feature: Clear Object Detection
  Yes
• Feature: Remote Teach
  Yes
• Power/Current Consumption (exclusive of load)
  40 mA
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Max Off-state Leakage Current (µA)
  NPN: < 200 at 30 V dc; PNP: < 10 at 30 V dc
Ultrasonic Frequency (kHz)
224
Remote Teach and Laser Control Input Impedence
55 kΩ
Minimum Window Size (mm)
10
Barrel Diameter (mm)
30
Rep Rate (ms)
15
Analog Linearity (mm)
0.25% of distance
Minimum Response Time (ms)
45
Max Op. Relative Humidity Non-Condensing (%)
95 at 50°C
Min Operating Temperature (°C)
-40
Max Operating Temperature (°C)
70
IP Rating
IP67
NEMA Rating
NEMA 6
Output Protection
Protected against short circuit conditions
Max Discrete (Switched) Output (mA)
100
Output Saturation Voltage NPN Outputs
< 1.6 V at 100 mA
Analog Current Output Rating
1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] Ω
Output Saturation Voltage PNP Outputs
< 3 V at 100 mA
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Number of Pins
4
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Temperature Effect (mm/°C)
0.02% of sensing distance/°C
Adjustments
Teach Button
Delay at Power-up (ms)
500
Power Supply
10-30 V dc
Max Sensing Distance (mm)
1000
Minimum Sensing Distance (mm)
100
Quick Disconnect Type
M12 (Euro)
Analog Resolution/Discrete Repeatability
0.1% of distance (0.5 min)
Indicator
LED(s)
Analog Output Configuration
4-20 mA
Connection
Pigtail QD
Input/Output
Analog
Primary Housing Material
PBT
Max Measurement Range
>500 mm - <=1000 mm
Power
DC
Device Type
Sensor
Housing Style
Barrel
Sensing Mode (Detailed)
Time of Flight
Sensing Mode (General)
Proximity
PC Configurable
No
Cable Length (m)
0.15
Sensing Beam
Ultrasonic
Sensing distance
10cm...1m
Functions
Ultrasonic distance sensor/transmitter green LED (power ON) yellow LED (discrete output / mode) red LED (signal) TEACH mode
Analog outputs
1 x analog output (4-20mA)
Emission frequency
224kHz
Main function
Sensor (Distance)
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Product series / family name
U-GAGE series
Primary brand
Banner Engineering
Design
time-of-flight system extended temp. range (w/ compensation)
Shape
Cylindrical smooth
Degree of protection
IP67 NEMA 6
Compliant with standard(s)
CE cULus Listed
Sub-range name
T30UX series
Mounting mode
Threaded mount
Protection functions
Short-circuit
Thread size
M30
Ambient air temperature for operation
-40...+70 °C
Order code / Manufacturer SKU
80483
Connection type
Pre-wired with 6" / 150mm PUR pigtail terminated with 4-pin Euro-style M12 connector
Material
thermoplastic housing PUR connector PUR pigtail
