T30UDPB
Banner
Product Lifecycle: Active

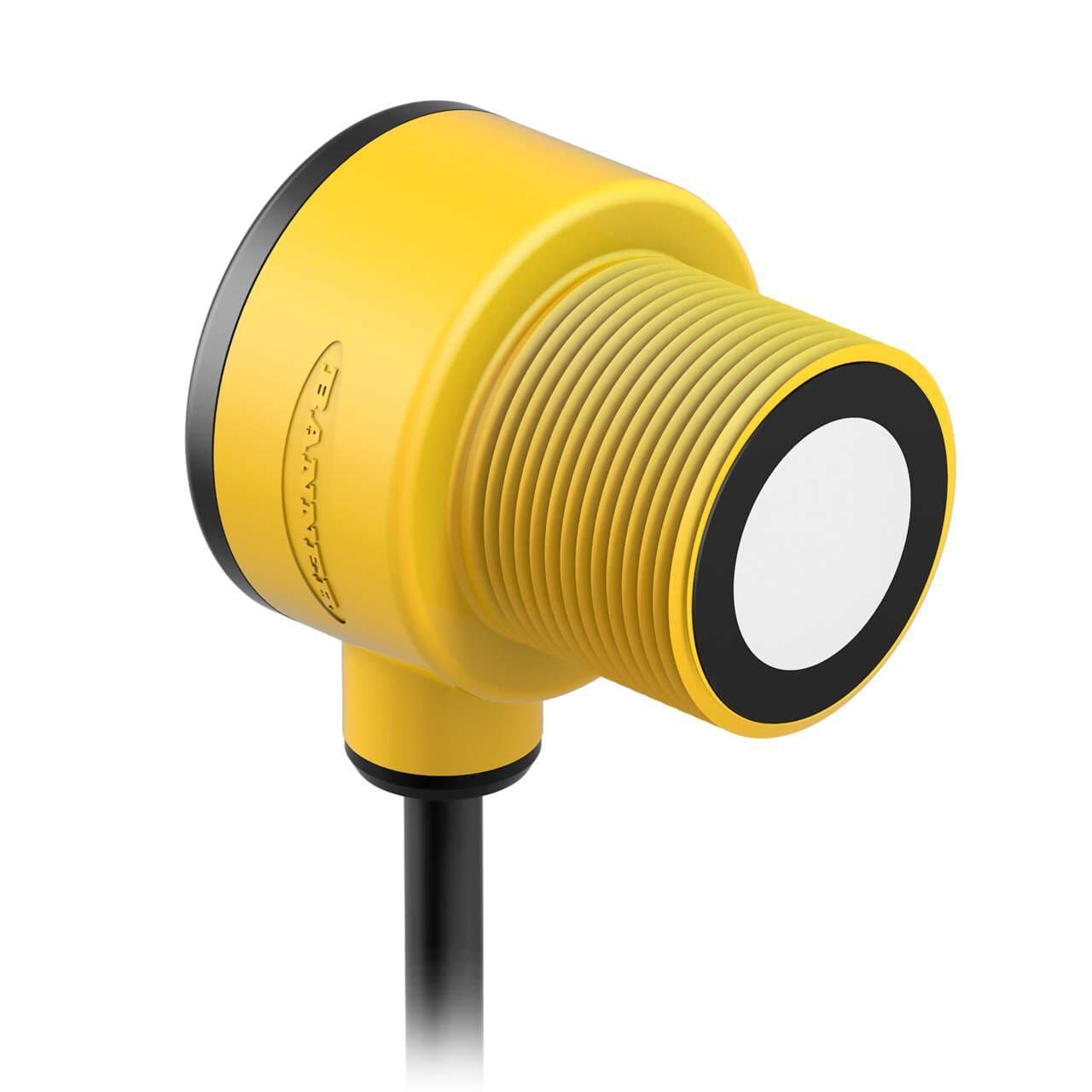

Banner Engineering T30UDPB is a long-range ultrasonic level sensor from the T30U series, designed with a time-of-flight system and TEACH mode for pump control. This sensor features a thermoplastic housing and is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. It operates on a supply voltage of 12Vdc-24Vdc and can function within an ambient air temperature range of -20 to +70°C. The T30UDPB is equipped with an IP67 NEMA 6 degree of protection, making it suitable for various environmental conditions. Its M30 cylindrical threaded/barrel shape facilitates easy installation. The sensor offers 2 x digital outputs (PNP transistor; complementary NO/NC), a sensing distance of 30cm to 2m, and operates at a 128kHz transmission frequency. Additionally, it includes protection functions against overload and short-circuit, with a thread size of M30.

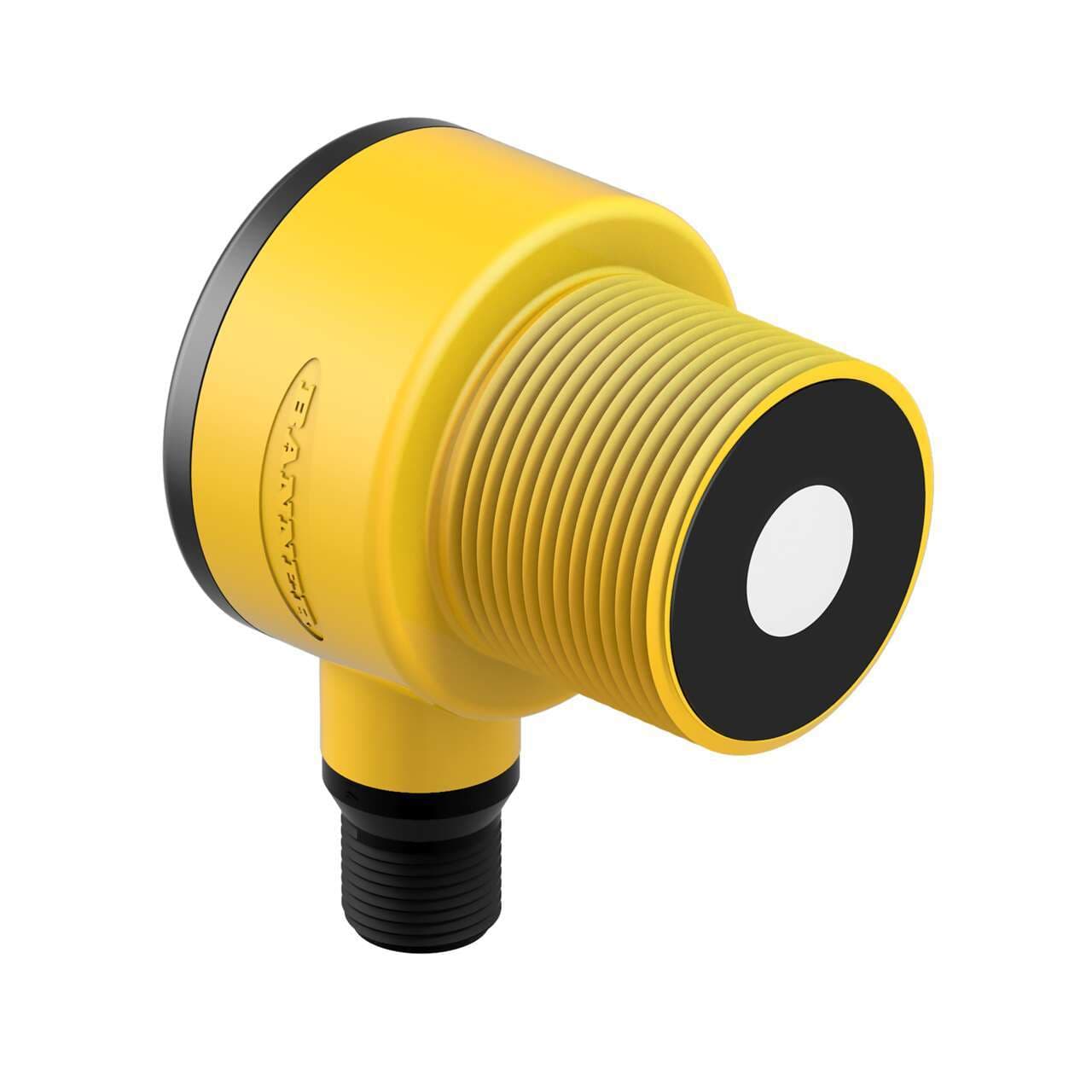

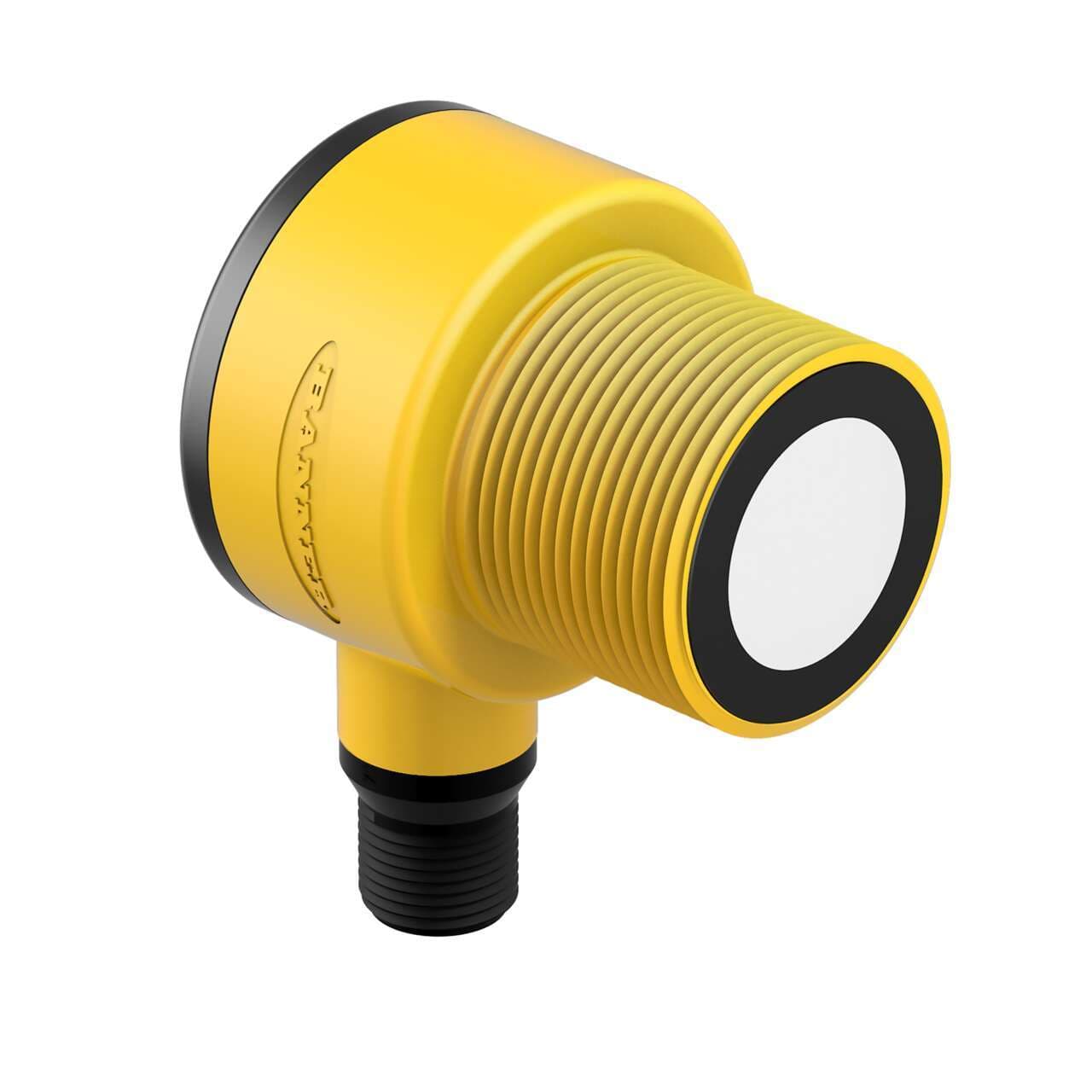

![T30UDPB](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2Fe16d1e0e-406e-4df2-a925-31866de20c28.jpeg&w=3840&q=75)
Banner Engineering T30UDPB is a long-range ultrasonic level sensor from the T30U series, designed with a time-of-flight system and TEACH mode for pump control. This sensor features a thermoplastic housing and is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. It operates on a supply voltage of 12Vdc-24Vdc and can function within an ambient air temperature range of -20 to +70°C. The T30UDPB is equipped with an IP67 NEMA 6 degree of protection, making it suitable for various environmental conditions. Its M30 cylindrical threaded/barrel shape facilitates easy installation. The sensor offers 2 x digital outputs (PNP transistor; complementary NO/NC), a sensing distance of 30cm to 2m, and operates at a 128kHz transmission frequency. Additionally, it includes protection functions against overload and short-circuit, with a thread size of M30.
Product details
- RS-232No
- 1-wire Serial InterfaceNo
- WirelessNo
- SSINo
- ProfibusNo
- RS-485No
- PROFINETNo
- RS-422No
- Common Ethernet ProtocolNo
- IO LinkNo
- Application: UltrasonicYes
- Feature: Chemical ResistantNo
- Feature: Timing (Hold/Delay)No
- Feature: Clear Object DetectionYes
- Feature: Remote TeachYes
- Supply Protection CircuitryProtected against reverse polarity and transient overvoltages
- Power/Current Consumption (exclusive of load)90 mA
- Max Off-state Leakage Current (µA)10
- Ultrasonic Frequency (kHz)128
- Discrete Output Hysteresis (mm)2.5
- Remote Teach and Laser Control Input Impedence55 kΩ
- Minimum Window Size (mm)10
- Barrel Diameter (mm)30
- Minimum Response Time (ms)96
- Warm-up Time (minutes)15
- Max Op. Relative Humidity Non-Condensing (%)100
- Min Operating Temperature (°C)-20
- Max Operating Temperature (°C)70
- NEMA RatingNEMA 6
- Discrete (Switched) Outputs2 PNP
- IP RatingIP67
- Output ProtectionProtected against false pulse on power-up and continuous overload or short-circuit of outputs
- Max Discrete (Switched) Output (mA)100
- Output Saturation Voltage PNP Outputs< 1.0 V at 10 mA ; < 1.5 V at 100 mA
- Mechanical ShockIEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
- Number of Pins5
- VibrationMIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- Temperature Effect (mm/°C)0.2% of sensing distance/°C
- Power Supply12-24 V dc
- Minimum Sensing Distance (mm)300
- AdjustmentsTeach Button
- Analog Resolution/Discrete Repeatability+/- 0.25% of measured distance (1.0 min)
- Quick Disconnect TypeNo QD
- ConnectionFlying Leads
- Max Sensing Distance (mm)2000
- IndicatorLED(s)
- Input/OutputDiscrete
- Primary Housing MaterialPBT
- PowerDC
- Cable Length (m)2
- Max Measurement Range>1 m - <=20 m
- PC ConfigurableNo
- Sensing Mode (General)Proximity
- Sensing Mode (Detailed)Time of Flight
- Housing StyleBarrel
- Device TypeSensor
- Sensing BeamUltrasonic
- Sub-range nameT30U series
- Sensing distance30cm...2m
- Materialthermoplastic housing
- Emission frequency128kHz
- Product series / family nameU-GAGE series
- Designtime-of-flight system
- Connection typePre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Compliant with standard(s)CE
- Order code / Manufacturer SKU55550
- Primary brandBanner Engineering
- Supply voltage (DC)12Vdc-24Vdc
- Degree of protectionIP67 NEMA 6
- Protection functionsOverload Short-circuit
- Main functionSensor (Liquid level)
- Thread sizeM30
- Digital outputs2 x digital outputs (PNP transistors)
- FunctionsLong-range ultrasonic level sensor (for pmp. control) green LED (power ON) yellow LED (discrete output / mode) red LED (signal) TEACH mode
- ShapeCylindrical smooth
- Mounting modeThreaded mount
- Ambient air temperature for operation-20...+70 °C
