T30UXDA W/30

Banner

Product Lifecycle: Active

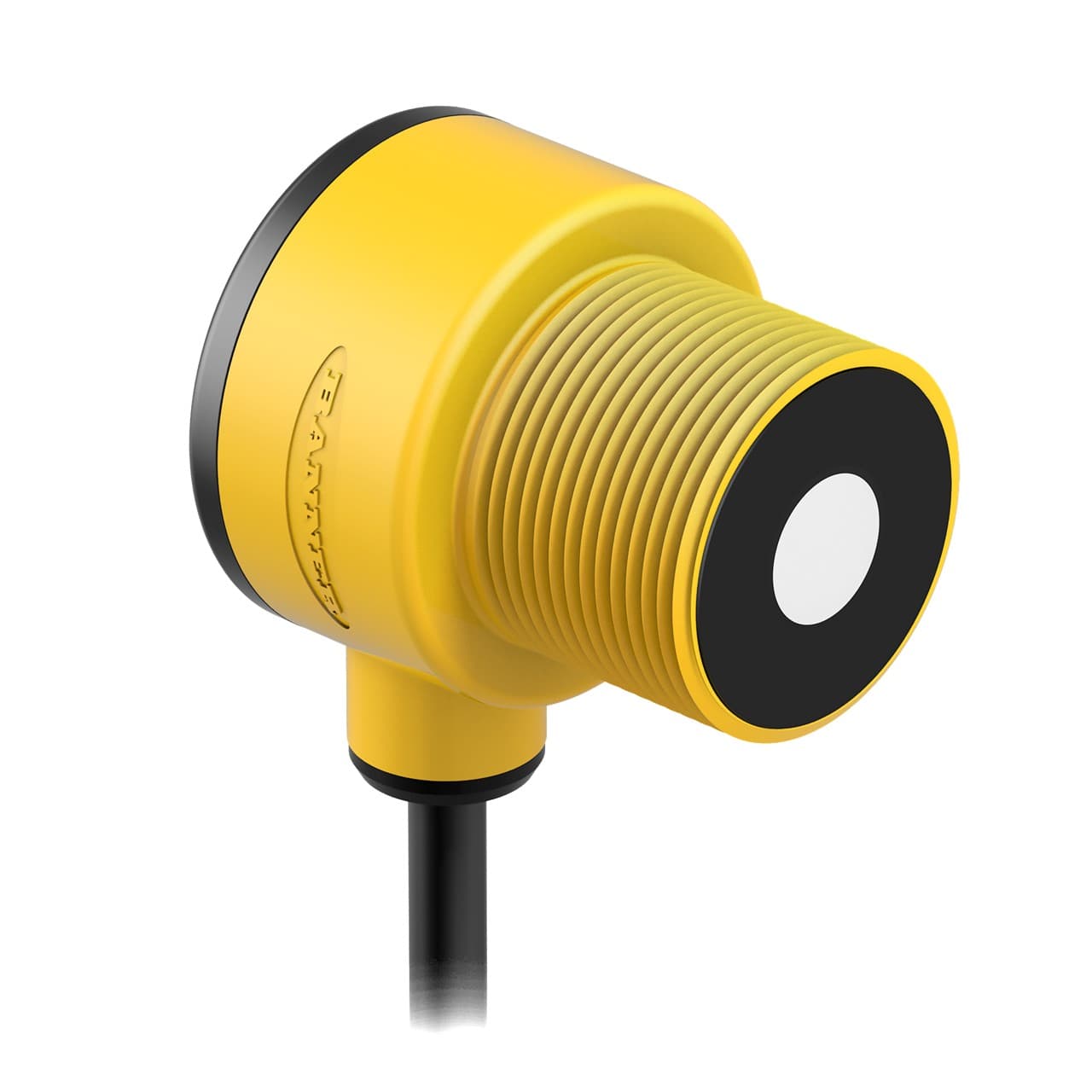

Banner Engineering T30UXDA W/30 is an ultrasonic distance sensor from the T30UX series, featuring a time-of-flight system with extended temperature range and compensation TEACH mode. It is housed in thermoplastic and comes pre-wired with a 30ft / 9m cable terminated with bare end flying leads. This sensor operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal, and is designed for threaded mount installation. It can operate in ambient air temperatures ranging from -40 to +70°C and is rated with a degree of protection IP67 NEMA 6. The sensor has an M30 cylindrical threaded/barrel shape, includes 1 x digital output (PNP/NPN transistor), and offers a sensing distance of 10cm to 1m. It operates at a frequency of 224kHz and includes protection functions against short-circuit. The operating modes available are NO (Normally Open) and NC (Normally Closed), with a thread size of M30.

T30UXDA W/30

Banner Engineering T30UXDA W/30 is an ultrasonic distance sensor from the T30UX series, featuring a time-of-flight system with extended temperature range and compensation TEACH mode. It is housed in thermoplastic and comes pre-wired with a 30ft / 9m cable terminated with bare end flying leads. This sensor operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal, and is designed for threaded mount installation. It can operate in ambient air temperatures ranging from -40 to +70°C and is rated with a degree of protection IP67 NEMA 6. The sensor has an M30 cylindrical threaded/barrel shape, includes 1 x digital output (PNP/NPN transistor), and offers a sensing distance of 10cm to 1m. It operates at a frequency of 224kHz and includes protection functions against short-circuit. The operating modes available are NO (Normally Open) and NC (Normally Closed), with a thread size of M30.

T30UX CABLE.pdf

U-GAGE T30UX Series with Discrete Output.pdf

T30UX CABLE.stp

Product details

T30UX CABLE.pdf

U-GAGE T30UX Series with Discrete Output.pdf

T30UX CABLE.stp

Feature: Clear Object DetectionYes
ProfibusNo
1-wire Serial InterfaceNo
WirelessNo
SSINo
RS-485No

RS-422No

RS-232No

PROFINETNo

IO LinkNo

Common Ethernet ProtocolNo

Application: UltrasonicYes

Feature: Chemical ResistantNo

Feature: Timing (Hold/Delay)No

Feature: Remote TeachYes

Power/Current Consumption (exclusive of load)40 mA

Supply Protection CircuitryProtected against reverse polarity and transient overvoltages

Ultrasonic Frequency (kHz)224

Discrete Output Hysteresis (mm)2

Max Off-state Leakage Current (µA)NPN: < 200 at 30 V dc; PNP: < 10 at 30 V dc

Rep Rate (ms)15

Minimum Window Size (mm)10

Remote Teach and Laser Control Input Impedence55 kΩ

Barrel Diameter (mm)30

Warm-up Time (minutes)15

Minimum Response Time (ms)45

Max Op. Relative Humidity Non-Condensing (%)95 at 50°C

Min Operating Temperature (°C)-40

Max Operating Temperature (°C)70

NEMA RatingNEMA 6

IP RatingIP67

Output ProtectionProtected against short circuit conditions

Discrete (Switched) Outputs1 NPN/PNP Configurable

Max Discrete (Switched) Output (mA)100

Output Saturation Voltage PNP Outputs< 3 V at 100 mA

Mechanical ShockIEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave

Output Saturation Voltage NPN Outputs< 1.6 V at 100 mA

VibrationMIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).

Temperature Effect (mm/°C)0.02% of sensing distance/°C

Number of Pins4

AdjustmentsTeach Button

Power Supply10-30 V dc

Delay at Power-up (ms)500

Quick Disconnect TypeNo QD

Max Sensing Distance (mm)1000

Minimum Sensing Distance (mm)100

ConnectionFlying Leads

Analog Resolution/Discrete Repeatability0.1% of distance (0.5 min)

Primary Housing MaterialPBT

IndicatorLED(s)

Input/OutputDiscrete

Max Measurement Range>500 mm - <=1000 mm

PC ConfigurableNo

Sensing Mode (Detailed)Time of Flight

Housing StyleBarrel

Sensing Mode (General)Proximity

PowerDC

Device TypeSensor

Sensing BeamUltrasonic

Cable Length (m)9
