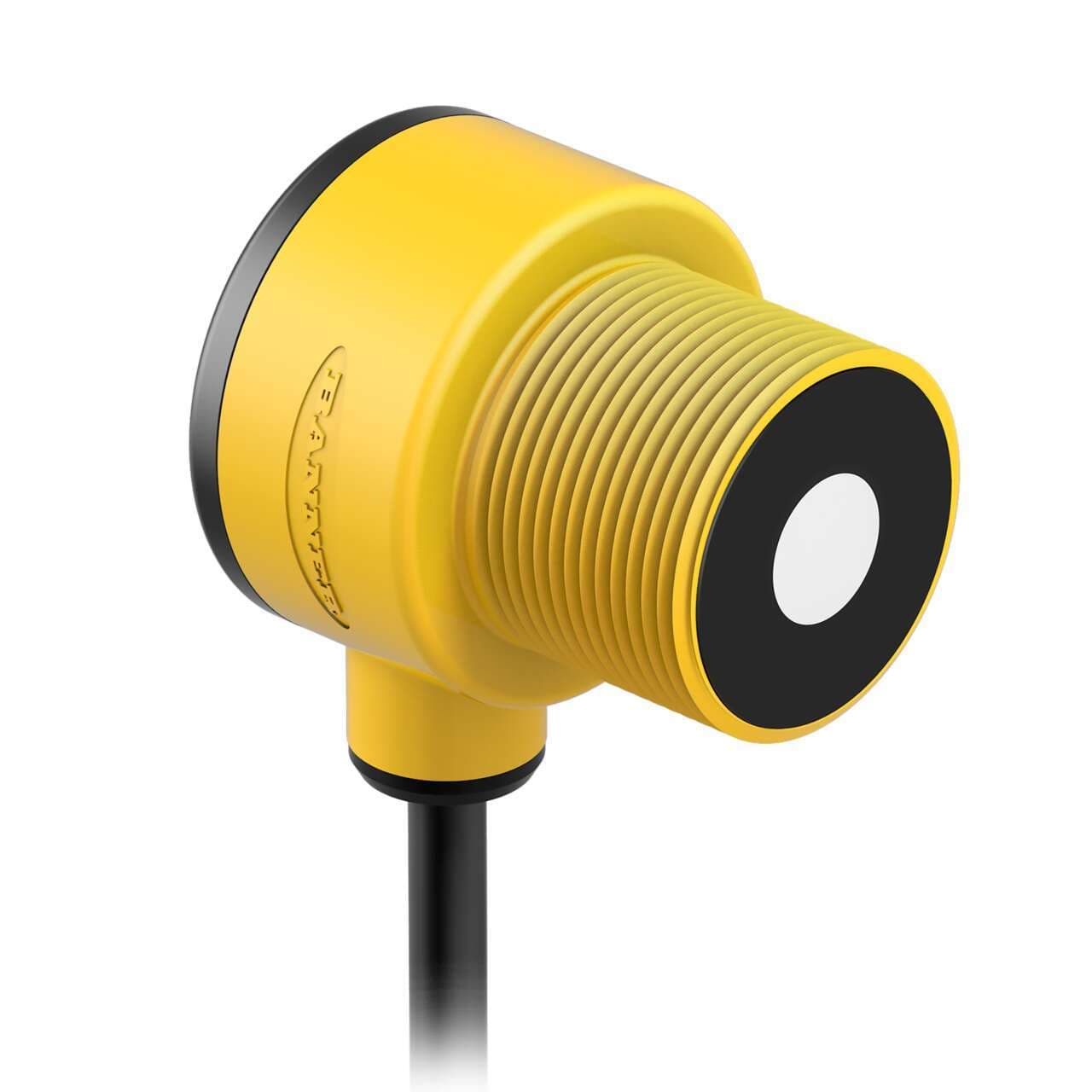

T30UUPA Banner Ultrasonic Sensors

Product Details

• Weight
  217.72416 g
• Country Of Origin
  CN
• 1-wire Serial Interface
  No
• RS-232
  No
• Feature: Chemical Resistant
  No
• Profibus
  No
• Wireless
  No
• SSI
  No
• RS-422
  No
• RS-485
  No
• Common Ethernet Protocol
  No
• Application: Ultrasonic
  Yes
• IO Link
  No
• PROFINET
  No
• Discrete Output Hysteresis (mm)
  2.5
• Feature: Timing (Hold/Delay)
  No
• Remote Teach and Laser Control Input Impedence
  55 kΩ
• Ultrasonic Frequency (kHz)
  228
• Feature: Clear Object Detection
  Yes
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
Feature: Remote Teach
Yes
Power/Current Consumption (exclusive of load)
90 mA
Max Off-state Leakage Current (µA)
10
Minimum Window Size (mm)
10
Barrel Diameter (mm)
30
Analog Linearity (mm)
+/- 0.5% of full-scale span
Max Op. Relative Humidity Non-Condensing (%)
100
Warm-up Time (minutes)
15
Minimum Response Time (ms)
48
NEMA Rating
NEMA 6P
Max Operating Temperature (°C)
70
Min Operating Temperature (°C)
-20
Output Protection
Protected against false pulse on power-up and continuous overload or short-circuit of outputs
IP Rating
IP67
Discrete (Switched) Outputs
1 PNP
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Output Saturation Voltage PNP Outputs
< 1.0 V at 10 mA ; < 1.5 V at 100 mA
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Number of Pins
5
Analog Voltage Output Rating
1 kΩ min. load impedance
Max Discrete (Switched) Output (mA)
100
Temperature Effect (mm/°C)
0.2% of sensing distance/°C
Adjustments
Teach Button
Power Supply
15-24 V dc
Quick Disconnect Type
No QD
Max Sensing Distance (mm)
1000
Minimum Sensing Distance (mm)
150
Indicator
LED(s)
Connection
Flying Leads
Primary Housing Material
PBT
Input/Output
Analog & Discrete
Analog Resolution/Discrete Repeatability
+/- 0.25% of measured distance (0.5 min)
Analog Output Configuration
0-10 V dc
Device Type
Sensor
PC Configurable
No
Cable Length (m)
2
Sensing Mode (Detailed)
Time of Flight
Power
DC
Sensing Mode (General)
Proximity
Housing Style
Barrel
Max Measurement Range
>500 mm - <=1000 mm
Sensing Beam
Ultrasonic
Primary brand
Banner Engineering
Supply voltage (DC)
15Vdc-24Vdc
Thread size
M30
Sensing distance
0.15cm...1m
Mounting mode
Threaded mount
Analog outputs
1 x analog output (0-10Vdc)
Sub-range name
T30U analog and discrete output series
Connection type
Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
Protection functions
Overload Short-circuit
Product series / family name
U-GAGE series
Shape
Cylindrical smooth
Material
thermoplastic housing
Main function
Sensor (Distance)
Functions
Short-range ultrasonic distance sensor/transmitter green LED (power ON) yellow LED (discrete output / mode) red LED (signal) TEACH mode
Design
time-of-flight system
Degree of protection
IP67 NEMA 6P
Order code / Manufacturer SKU
55986
Digital outputs
1 x digital output (PNP transistor)
Ambient air temperature for operation
-20...+70 °C
Emission frequency
228kHz
Compliant with standard(s)
CE
