T30AW3R

Banner

Product Lifecycle: Active

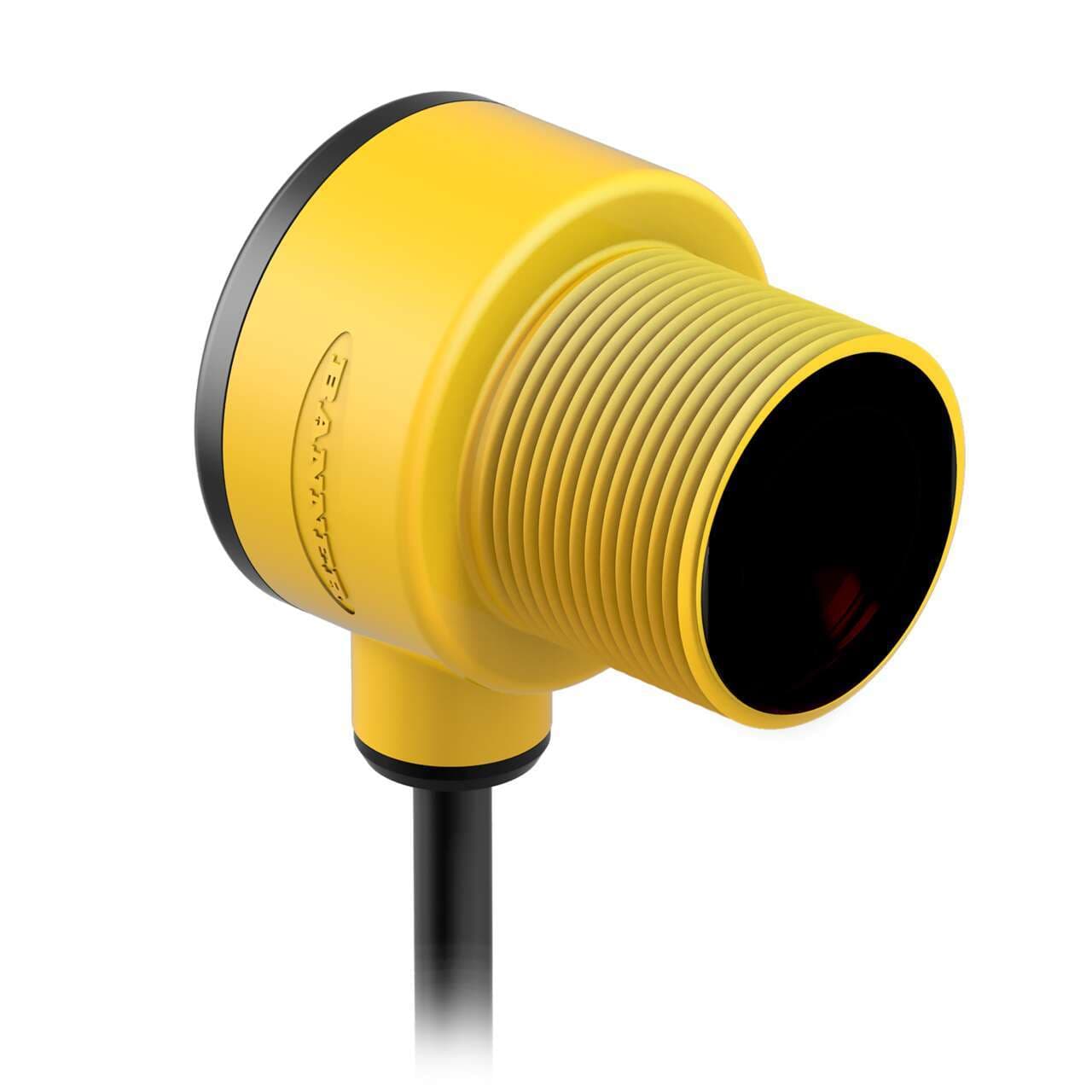

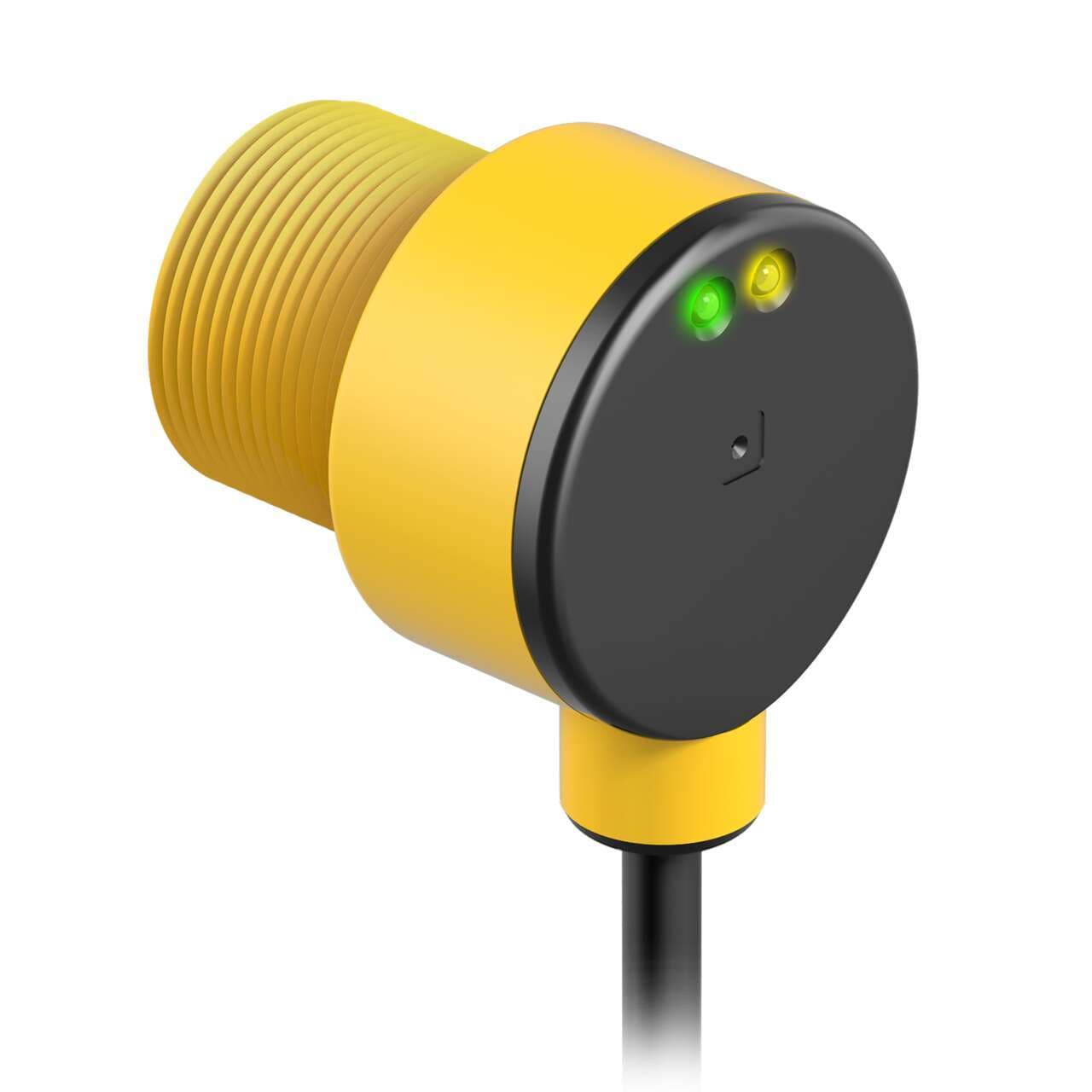

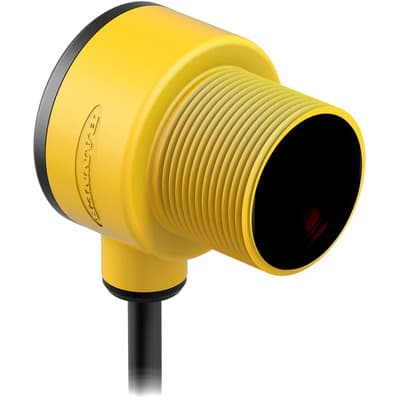

Banner Engineering T30AW3R is a photo-electric sensor designed for through-beam system applications, part of the T30 series. This sensor functions as a receiver alone, housed in a thermoplastic material. It features a pre-wired connection with a 6.5ft / 2m cable terminated with bare end flying leads. The T30AW3R operates on a supply voltage ranging from 20Vac to 250Vac, with nominal voltages at 200Vac, 220Vac, and 240Vac. It is designed to work within an ambient air temperature range of -40 to +70°C and offers a high degree of protection rated at IP69K NEMA 6P. The sensor's shape is an M30 cylindrical threaded/barrel, equipped with 1 x digital output (Solid-state AC output; SPST contact type). It boasts a sensing distance of up to 60m and utilizes infrared light with a wavelength of 950 nm. The response time of the sensor is 16ms / 0.016 s, operating in Light-ON mode, and it features an M30 thread size.

T30AW3R

Banner Engineering T30AW3R is a photo-electric sensor designed for through-beam system applications, part of the T30 series. This sensor functions as a receiver alone, housed in a thermoplastic material. It features a pre-wired connection with a 6.5ft / 2m cable terminated with bare end flying leads. The T30AW3R operates on a supply voltage ranging from 20Vac to 250Vac, with nominal voltages at 200Vac, 220Vac, and 240Vac. It is designed to work within an ambient air temperature range of -40 to +70°C and offers a high degree of protection rated at IP69K NEMA 6P. The sensor's shape is an M30 cylindrical threaded/barrel, equipped with 1 x digital output (Solid-state AC output; SPST contact type). It boasts a sensing distance of up to 60m and utilizes infrared light with a wavelength of 950 nm. The response time of the sensor is 16ms / 0.016 s, operating in Light-ON mode, and it features an M30 thread size.

T30 3R/6R CABLE/PIGTAIL.pdf

T30 3R/6R CABLE/PIGTAIL.stp

Product details

T30 3R/6R CABLE/PIGTAIL.pdf

T30 3R/6R CABLE/PIGTAIL.stp

Feature: EncapsulatedYes
DeviceNetNo
Feature: AudibleNo
IO LinkNo
Feature: Chemical ResistantNo
Feature: Hazardous AreaNo

Feature: Ecolab CertifiedYes

Feature: Timing (Hold/Delay)No

Feature: Washdown RatedYes

Opposed Mode Emitter/ReceiverReceiver

Barrel Diameter (mm)30

IndicatorLEDs

AdjustmentsN/A

IP RatingIP69

Number of Pins3

Repeatability (µs)2000

Lens MaterialAcrylic

NEMA RatingNEMA 6P

Max Op. Relative Humidity [%]90% @ 50°C

Delay at Power-up (ms)100

Special Feature: Water DetectionNo

Special Feature: Remote TeachNo

Special Feature: Intrinsically SafeNo

Output response time (ms)16 ON/8 OFF

Quick Disconnect TypeNo QD

Max Op. Temp. (°C)70

OperationLight Operate

Min Op. Temp. (°C)-40

ConnectionCable

Power Supply/Supply Voltage20-250 V ac

OutputsSolid-State AC Switch

Max Sensing Distance (mm)60000

Sensing Mode (Detailed)Receiver

Input/OutputSolid-State AC Switch

Primary Housing MaterialThermoplastic

Sensing Mode (General)Opposed

Housing StyleBarrel

PowerAC

Sensing BeamInfrared LED

Cable Length (m)2
