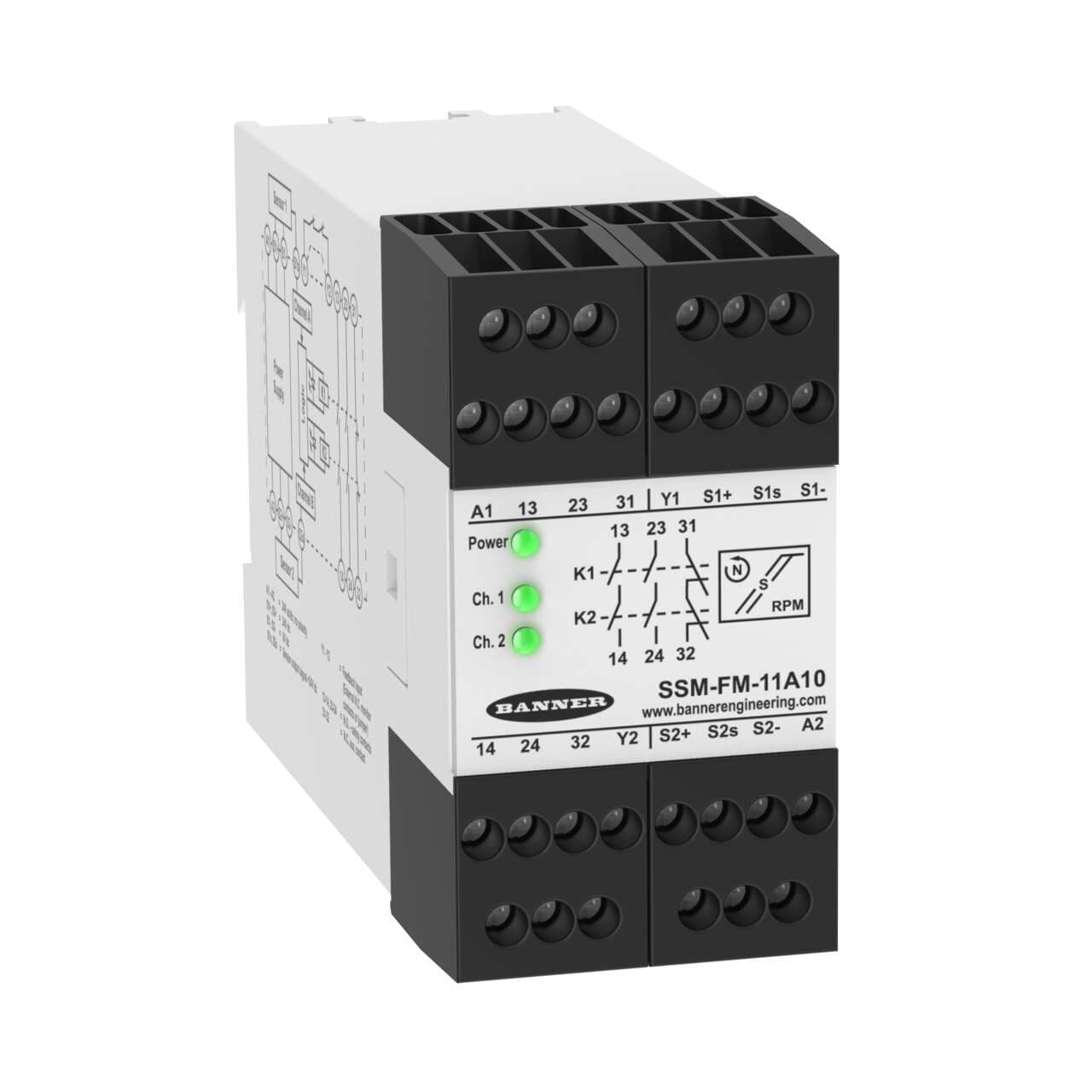

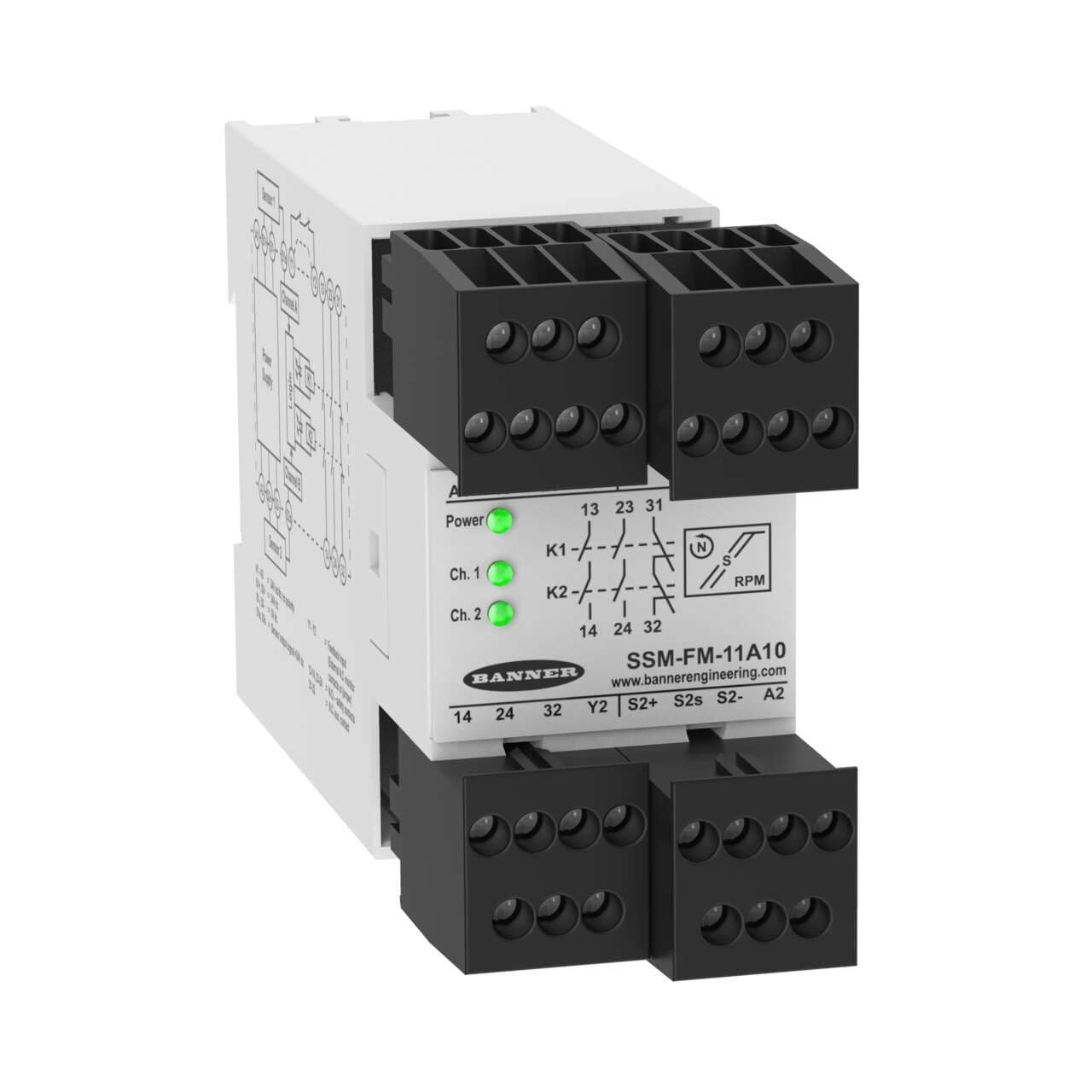

SSM-FM-11A10 Banner Safety Relays

Product Details

• Weight
  40.369688 g
• Country Of Origin
  DE
• PROFINET
  No
• Recovery Time
  1500
• In-Series Diagnostics
  No
• Light Curtains/Scanner with EDM Input
  No
• Modbus/TCP
  No
• Gate Switch (OSSD) Input
  No
• Gate Switch (NC/NC) Input
  No
• Gate Switch (NC/NO) Input
  No
• Safety Mat
  No
• Safety Category Rating
  3
• PL Rating
  e
• Terminal Type
  Screw
• Removable Terminals
  Yes
• Response Time (ms)
  700 (typical)
• Mechanical Life (Operations in Millions)
  50
• Splittable Safe Output
  No
• Output Configuration
  2 NO
• Number of Safe Inputs
  1
Expandable
No
PCCC
No
Common Ethernet Protocol
No
EtherNet/IP
No
Light Curtains/Scanner without EDM Input
No
Muting
No
Motor Speed
Yes
SISTEMA
PFHd = 1.74 x 10-10
SIL Rating
3
E-Stops/Rope Pulls
No
IP Rating
IP20
Vibration
10-55 Hz at 0.35 mm
Electrical Life (Cycles @ VA)
1,000,000 @ 440 VA
Supply Voltage
24 V ac/dc +/- 10%
Recovery Time (ms)
1500
Power Consumption
2.5 W / 4 VA
Non Safe Output Configuration
1 NC
Safe Output Rating
Relay - 4 A
Non Safe Output Rating
Relay - 4 A
Safety Input - Dual Channel (Solid-State)
3-25 mA @ 24 V dc (PNP)
Input Configuration
2 PNP
Independently Controlled Safe Outputs
1
Dimension (H x W x D in mm)
84 x 45 x 118
Input Operation
Simultaneous
Max Operating Temperature ( °C)
50
Device Type
Safety Relay
LCD Display
No
Relative Humidity
90% @ 50° C
Safety Module Type
Safe Speed Module
Power
AC/DC Universal

Related documents SSM-FM-11A10 Specs
