SMICC-306 Banner Cordsets

SMICC-306 on Powermatic Associates
Banner

Part#:SMICC-306

Manufacturer:Banner

Alt. Part#:48728

Product Lifecycle:Active

Get a quick Quote!

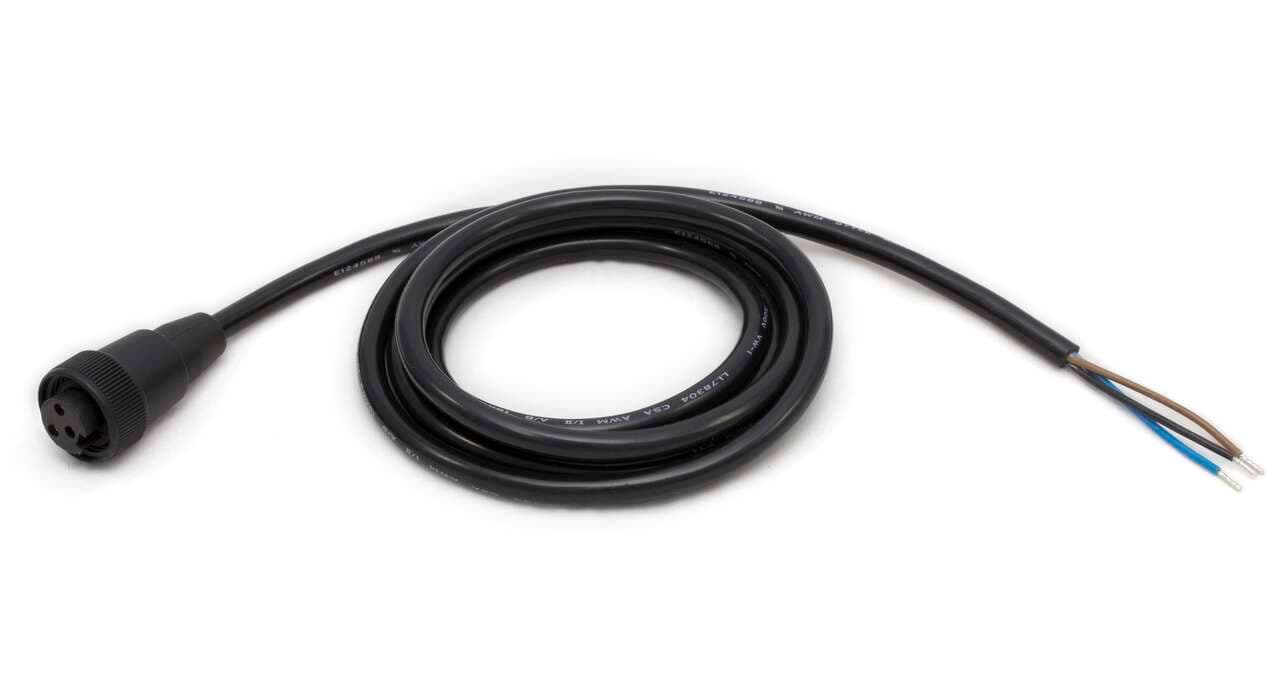

Cordset: Single Ended 7/8 in; 3-pin Straight Female; 2 m (6.56 ft) 3x18 Black PVC Jacket; Nylon Black Coupling Nut

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SMICC-306 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    63.50288 g
  • Country Of Origin
    MX
  • Secondary Connector Type
    Flying Leads
  • Oil/Grease Resistant
    No
  • Feature: Hazardous Area
    Yes
  • Primary AWG
    18
  • Primary Number of Conductors
    3
  • Maximum Temp. (°C)
    80
  • Primary Orientation
    Straight
  • Current Rating (A)
    9.0
  • IP Rating
    IP67
  • Minimum Temp. (°C)
    -40
  • Primary Connector Type
    MINI
  • Coupling Material/Color
    Nylon Black
  • Primary Gender
    Female
  • Primary Coupling Method
    7/8"-16
  • Voltage Rating (V)
    300 V ac/dc
  • Shield/No Shield
    No Shield
  • Trunk Length (m)
    No Trunk
  • Cordset Length (m)
    1.83
  • Outside Cable Diameter (mm)
    7
  • Cable Jacket Material
    PVC
  • Connector Body Material/Color
    PUR Black
  • Number of Connectors
    1
  • Cable Jacket Color
    Black
  • Number of Contacts
    3

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SMICC-306 Description

Banner Engineering SMICC-306 is a single-ended, intrinsically-safe pre-assembled cable/cordset designed for automation applications. It features a length of 6.5 feet (2 meters) and is equipped with a 3-pin 7/8"-16 mini female connector on one end, with bare end flying leads on the other. This design facilitates easy and secure connections in various industrial settings.
