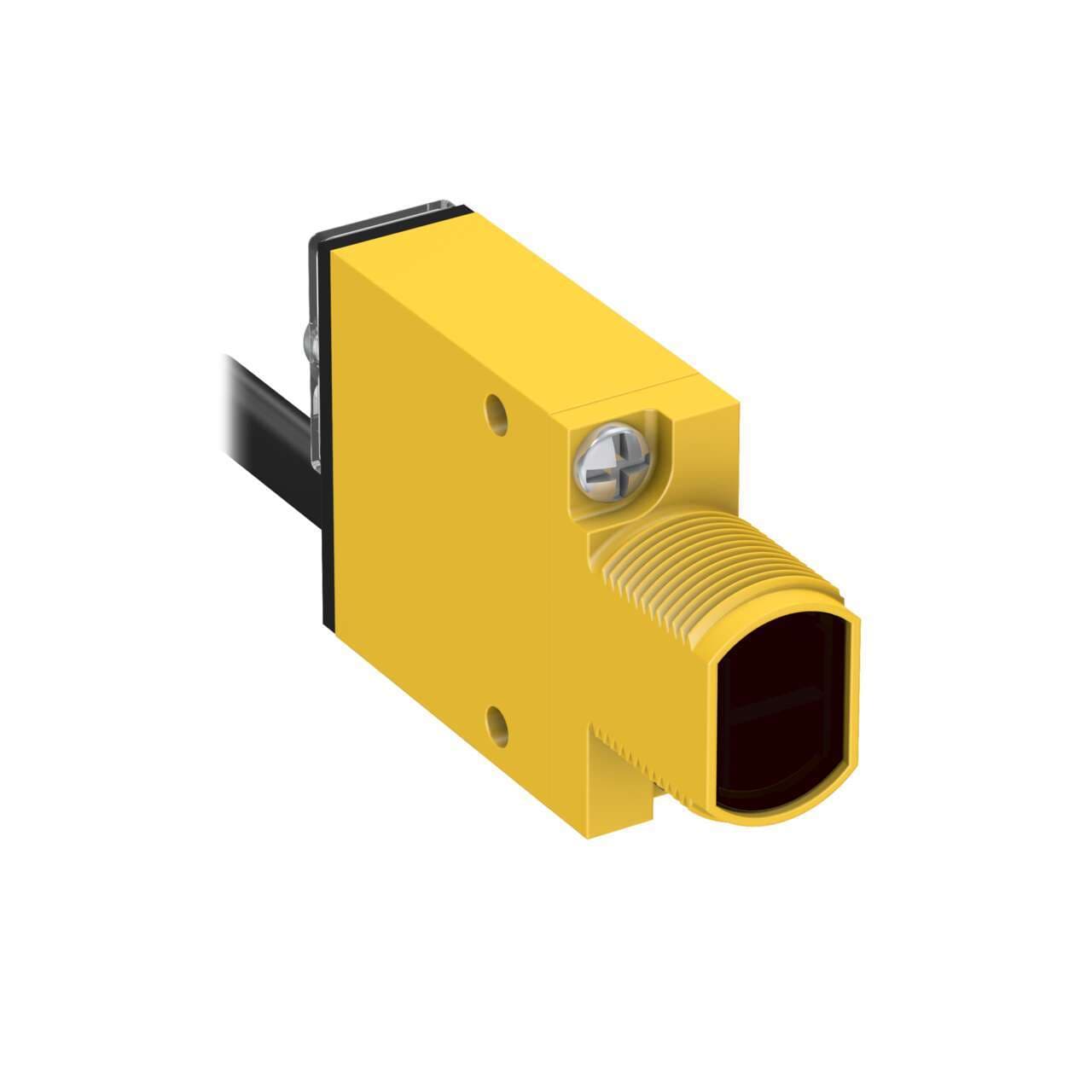

SM31R Banner Proximity Sensors

SM31R on Powermatic Associates
Banner

Part#:SM31R

Alt. Part#:25622

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

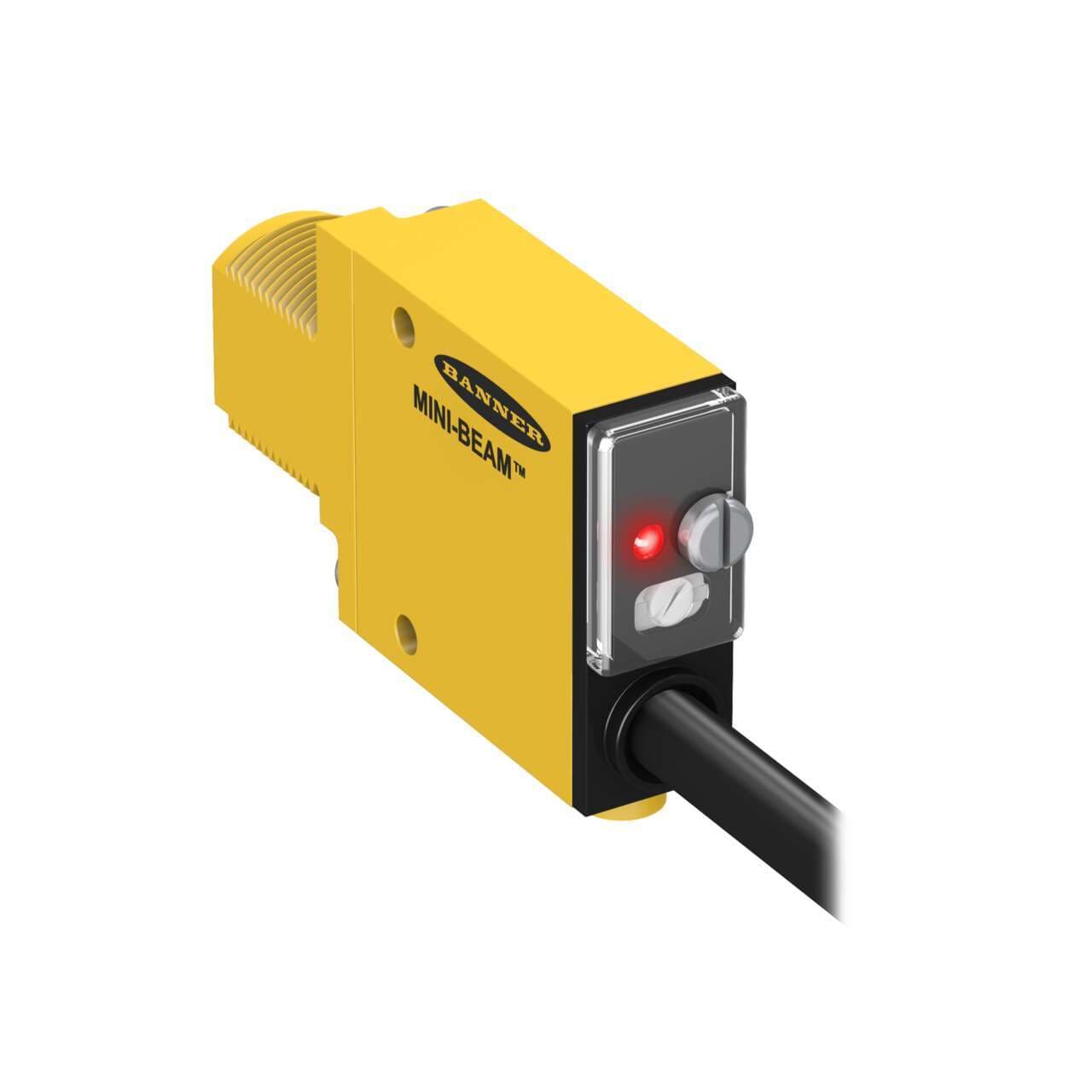

MINI-BEAM: Receiver; Range: 3 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) cable

Product Details

  • Weight
    152.406912 g
  • Country Of Origin
    US
  • IO Link
    No
  • DeviceNet
    No
  • Indicator
    LEDs
  • Opposed Mode Emitter/Receiver
    Receiver
  • Feature: Hazardous Area
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Encapsulated
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Barrel Diameter (mm)
    18
  • Adjustments
    Potentiometer
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • NEMA Rating
    NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
  • IP Rating
    IP67
  • Number of Pins
    4
  • Repeatability (µs)
    140
  • Lens Material
    Acrylic
  • Special Feature: Intrinsically Safe
    No
  • Special Feature: Remote Teach
    No
  • Delay at Power-up (ms)
    100
  • Special Feature: Water Detection
    No
  • Max Op. Temp. (°C)
    70
  • Output response time (ms)
    1
  • Operation
    Light/Dark Operate
  • Min Op. Temp. (°C)
    -20
  • Connection
    Cable
  • Outputs
    Bipolar (NPN & PNP)
  • Power Supply/Supply Voltage
    10-30 V dc
  • Quick Disconnect Type
    No QD
  • Max Sensing Distance (mm)
    3000
  • Cable Length (m)
    2
  • Input/Output
    Discrete
  • Primary Housing Material
    Thermoplastic
  • Housing Style
    Rectangular w/M18 Mount
  • Sensing Mode (General)
    Opposed
  • Power
    DC
  • Sensing Mode (Detailed)
    Receiver
  • Sensing Beam
    Infrared LED
  • Primary brand
    Banner Engineering
  • Light Color
    Infrared (IR)
  • Main function
    Sensor (Photo-electric)
  • Shape
    Rectangular
  • Mounting mode
    Threaded mount
  • Ambient air temperature for operation
    -20...+70 °C
  • Sensing distance
    3m
  • Digital outputs
    1 x digital output (PNP/NPN transistor)
  • Sub-range name
    SM312
  • Functions
    Photo-electric sensor receiver red LED (power ON) potentiometer adjustment
  • Thread size
    M18
  • Degree of protection
    IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
  • Product series / family name
    MINI-BEAM series
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Design
    through-beam system / opposed mode
  • Operating mode
    Light-ON Dark-ON
  • Response time
    1ms / 0.001 s
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Material
    thermoplastic housing Acrylic lns.
  • Order code / Manufacturer SKU
    25622
  • Compliant with standard(s)
    cURus CSA CE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM31R on Powermatic Associates is $125.00. Order now.


About the product

Banner Engineering SM31R is a photo-electric sensor from the SM312 series designed with a through-beam system and opposed mode potentiometer adjustment. This sensor, functioning as the receiver alone, is housed in thermoplastic with an acrylic lens. It features a pre-wired connection with a 6.5ft / 2m cable terminated with bare end flying leads. The SM31R operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc, and can be mounted using an M18 threaded mount. It is designed to operate within an ambient air temperature range of -20 to +70°C and boasts a degree of protection rated at IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, and 12, ensuring its durability in various environmental conditions. The sensor has a rectangular shape, includes 1 x digital output (PNP/NPN transistor), and offers a sensing distance of up to 3m. It utilizes infrared (IR) light, has a response time of 1ms / 0.001 s, and supports both Light-ON and Dark-ON operating modes.
