SM312DBZQDP Banner Proximity Sensors

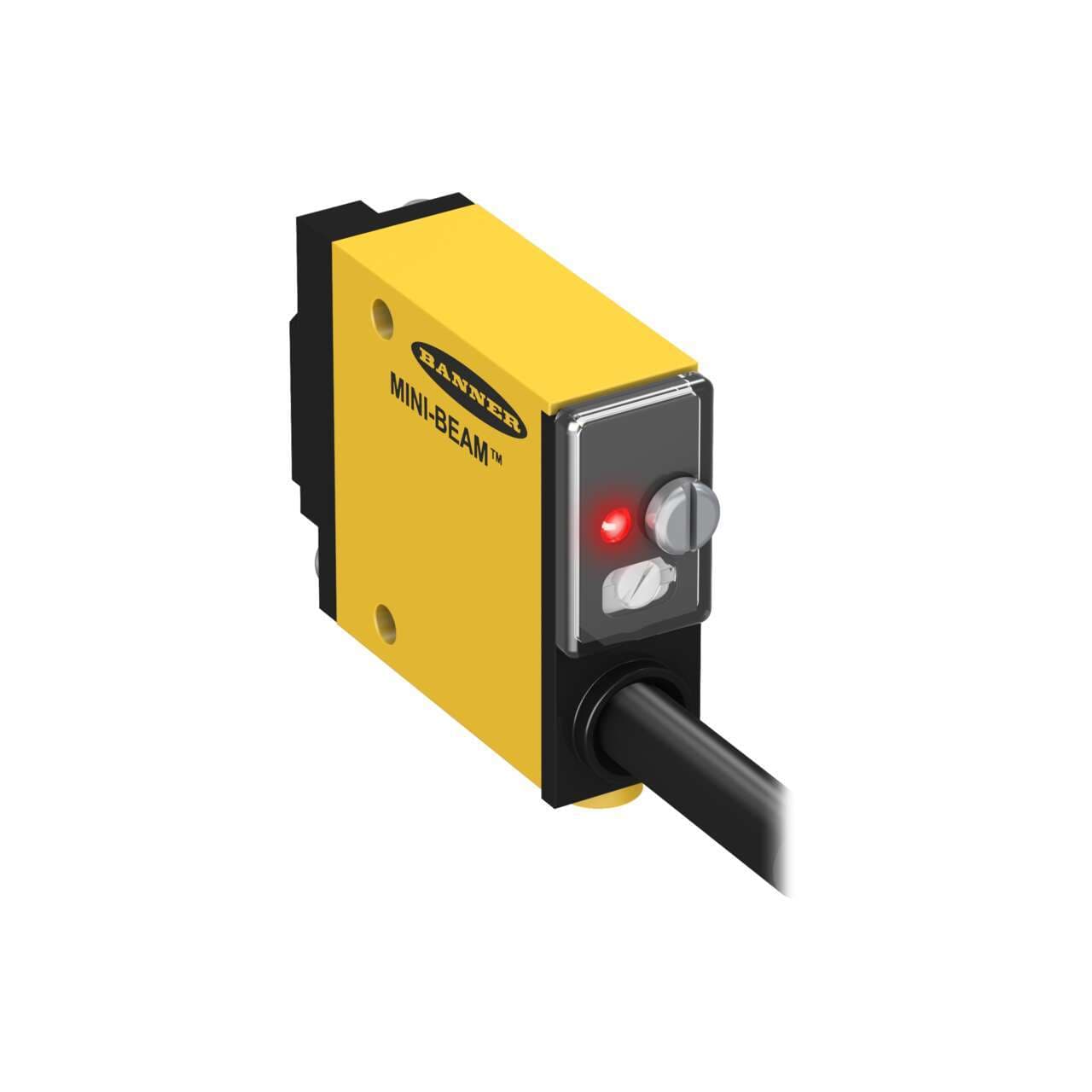

Banner SM312DBZQDP MINI-BEAM: Diffuse; Range: 300 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 150 mm (6 in) M12 Pigtail QD
Banner

Part#:SM312DBZQDP

Manufacturer:Banner

Alt. Part#:29551

Product Lifecycle:Active

Get a quick Quote!

MINI-BEAM: Diffuse; Range: 300 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 150 mm (6 in) M12 Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SM312DBZQDP Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    68.945984 g
  • Country Of Origin
    US
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Chemical Resistant
    No
  • Feature: Encapsulated
    Yes
  • DeviceNet
    No
  • IO Link
    No
  • Indicator
    LEDs
  • Repeatability (µs)
    300
  • Opposed Mode Emitter/Receiver
    N/A
  • Number of Pins
    4
  • Barrel Diameter (mm)
    N/A
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • NEMA Rating
    NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
  • Delay at Power-up (ms)
    100
  • IP Rating
    IP67
  • Special Feature: Intrinsically Safe
    No
  • Max Op. Temp. (°C)
    70
  • Min Op. Temp. (°C)
    -20
  • Feature: Audible
    No
  • Adjustments
    Potentiometer
  • Feature: Hazardous Area
    No
  • Lens Material
    Acrylic
  • Special Feature: Water Detection
    No
  • Special Feature: Remote Teach
    No
  • Operation
    Light/Dark Operate
  • Connection
    Pigtail QD
  • Quick Disconnect Type
    M12 (Euro)
  • Output response time (ms)
    1
  • Outputs
    Bipolar (NPN & PNP)
  • Power Supply/Supply Voltage
    10-30 V dc
  • Power
    DC
  • Primary Housing Material
    Thermoplastic
  • Max Sensing Distance (mm)
    300
  • Input/Output
    Discrete
  • Sensing Mode (Detailed)
    Diffuse
  • Housing Style
    Rectangular
  • Sensing Mode (General)
    Proximity
  • Sensing Beam
    Infrared LED
  • Main function
    Sensor (Photo-electric)
  • Functions
    Photo-electric sensor red LED (power ON) potentiometer adjustment
  • Digital outputs
    1 x digital output (PNP/NPN transistor)
  • Sub-range name
    SM312
  • Light Color
    Infrared (IR)
  • Operating mode
    Light-ON Dark-ON
  • Ambient air temperature for operation
    -20...+70 °C
  • Material
    thermoplastic housing Acrylic lns.
  • Product series / family name
    MINI-BEAM series
  • Sensing distance
    300mm
  • Connection type
    Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
  • Response time
    1ms / 0.001 s
  • Compliant with standard(s)
    cURus CSA CE
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Design
    diffuse mode
  • Shape
    Rectangular
  • Degree of protection
    IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
  • Order code / Manufacturer SKU
    29551

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


SM312DBZQDP Description

Banner Engineering SM312DBZQDP is a photo-electric sensor from the SM312 series, designed with a diffuse mode potentiometer adjustment. It features a thermoplastic housing with an acrylic lens and is pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector. This sensor operates within a supply voltage range of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and can function in ambient air temperatures ranging from -20 to +70°C. It offers a high degree of protection, rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, and NEMA 12, making it suitable for various environmental conditions. The rectangular-shaped sensor provides 1 x digital output (PNP/NPN transistor), has a sensing distance of 300mm, utilizes infrared (IR) light, and boasts a rapid response time of 1ms / 0.001 s. It supports both Light-ON and Dark-ON operating modes.
