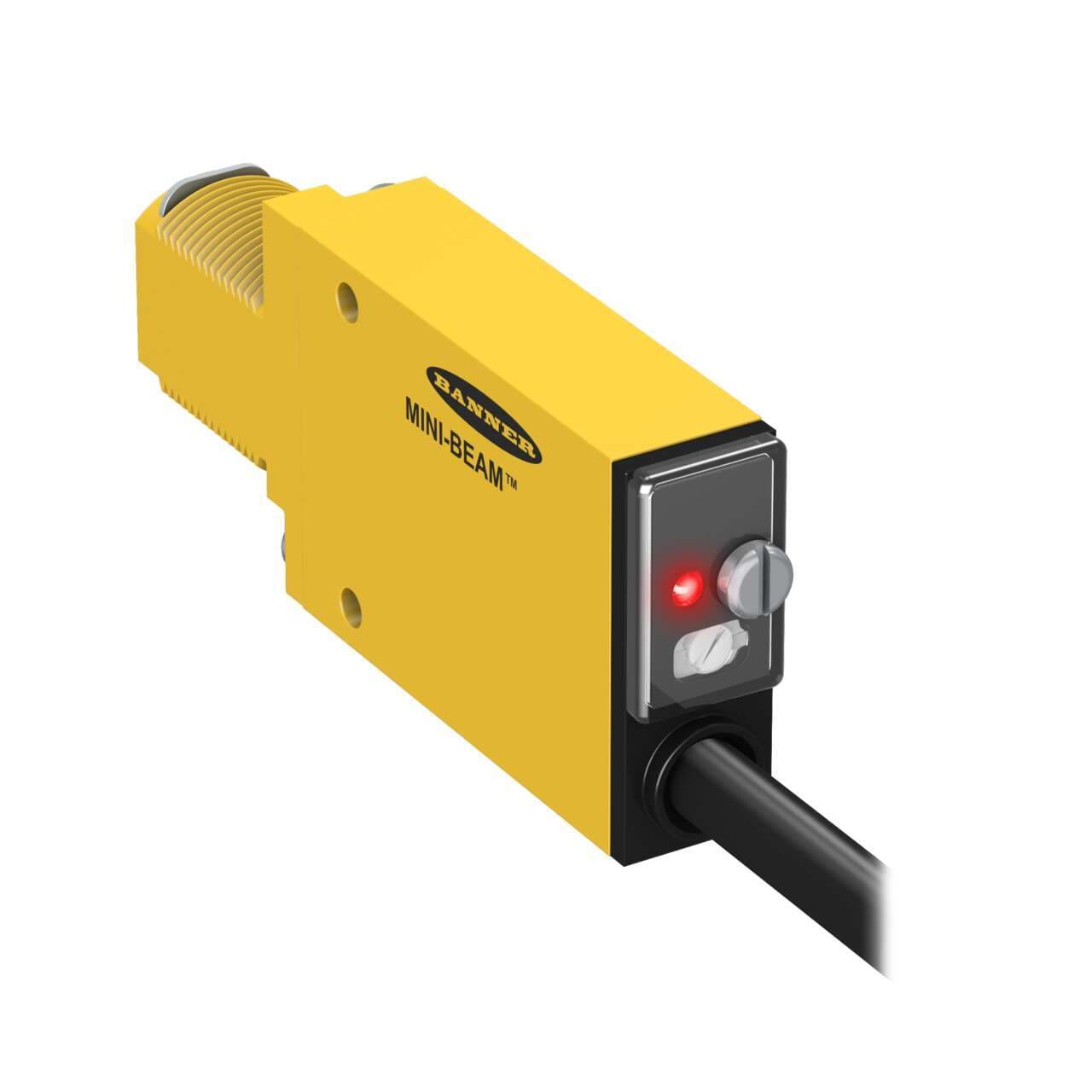

SM2A312F W/30 Banner Proximity Sensors

SM2A312F W/30 on Powermatic Associates
Banner

Part#:SM2A312F W/30

Alt. Part#:26358

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

MINI-BEAM: Infrared 880 nm Glass Fiber Optic; Range: Depends on Fiber; Input: 24-240 V ac; Output: SPST Solid-state 2-Wire; 9 m (30 ft) Cable

Product Details

  • Weight
    580.144168 g
  • Country Of Origin
    US
  • Housing Material
    Thermoplastic
  • IO Link
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Timing (Hold/Delay)
    No
  • Special Feature: Bussable Power
    No
  • Minimum response time (ms)
    8
  • Indicator Display Type
    Indicator LEDs
  • Power Supply/Supply Voltage
    24-240 V ac
  • Adjustments
    Potentiometer
  • Delay at Power-up (ms)
    300
  • Intrinsically Safe
    No
  • Special Feature: Remote Teach
    No
  • Max Op. Relative Humidity (%)
    90% @ 50°C
  • Connection
    Cable
  • Min Op. Temperature (°C)
    -20
  • NEMA Rating
    NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
  • Max Op. Temperature (°C)
    70
  • Number of Pins
    2
  • IP Rating
    IP67
  • Output Type (Specific)
    Single Discrete
  • Repeatability (µs)
    2600
  • Quick Disconnect Type
    No QD
  • Fiber Type
    Glass Only
  • Color LED - Amplifiers
    Infrared
  • Output
    Solid-State AC Switch
  • Input/Output
    Discrete
  • Primary Housing Material
    Thermoplastic
  • Power
    AC
  • Housing Style
    Rectangular w/M18 Mount
  • Cable Length (m)
    9

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM2A312F W/30 on Powermatic Associates is $233.00. Order now.

About the product

Banner Engineering SM2A312F W/30 is a photo-electric fiber optic sensor within the SM2A312 series, featuring a potentiometer adjustment for glass fiber. This sensor has a thermoplastic housing with an acrylic lens and is pre-wired with a 30ft / 9m cable terminated with bare end flying leads. It operates on a supply voltage of 24Vac-240Vac (200Vac / 220Vac nom.) and is designed for M18 threaded mount installation. The ambient air temperature for operation ranges from -20 to +70°C. It offers a degree of protection rated at IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, and 13. The sensor has a rectangular shape and includes 1 x digital output (Solid-state AC output; SPST contact type), utilizes infrared (IR) light with a wavelength of 880 nm, and has a response time of 8ms / 0.008 s.

SM2A312F W/30 Related Documents

69942.pdf
