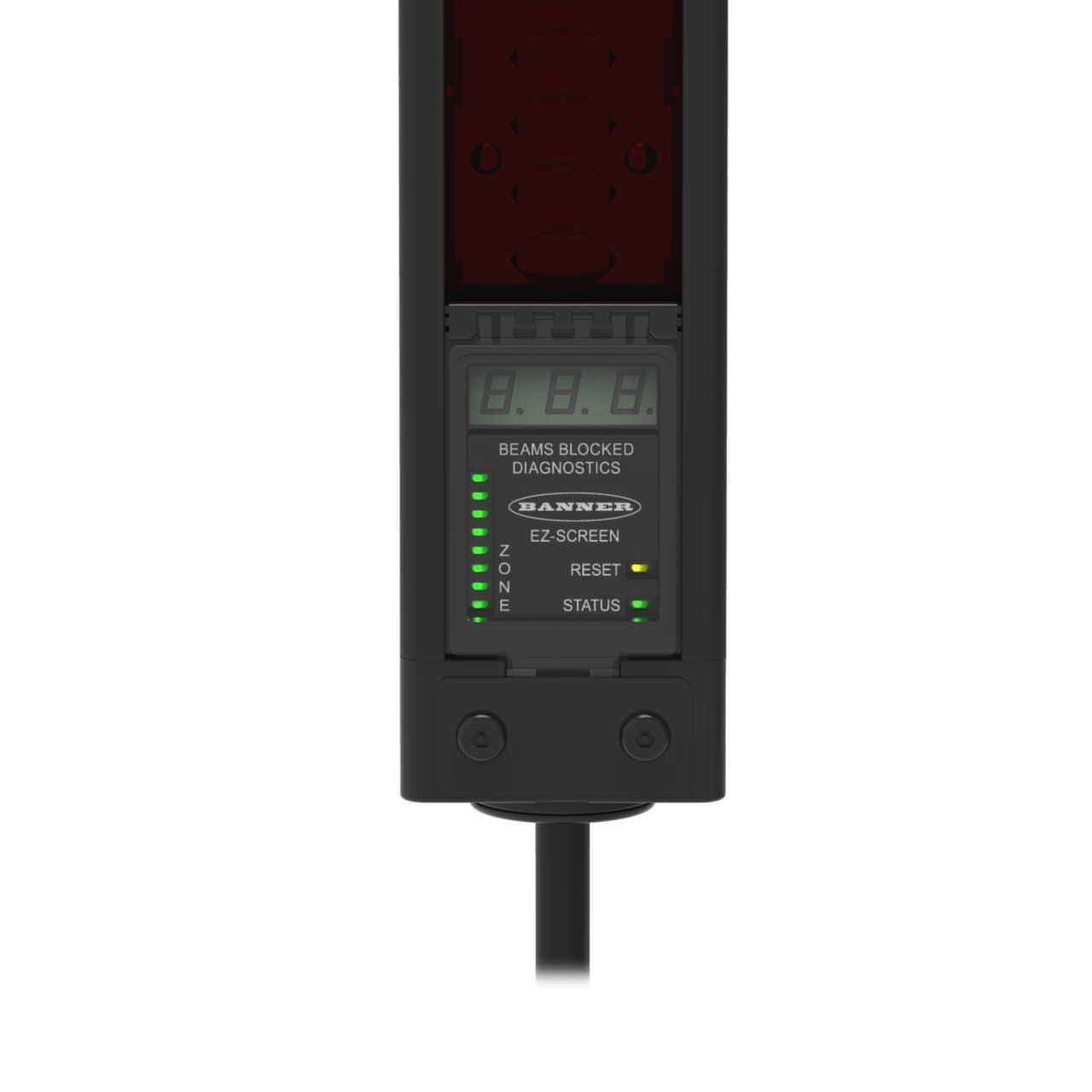

SLSCR14-300P8 Banner Safety Light Curtains

SLSCR14-300P8 on Powermatic Associates
Banner
  • SLSCR14-300P8
  • SLSCR14-300P8

Part#:SLSCR14-300P8

Alt. Part#:73926

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

EZ-SCREEN Cascade Receiver; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 300 mm (11.8 in); Housing Length: 372 mm (14.6 in); Connection: 8-pin M12 Pigtail Connector

Product Details

  • Weight
    1587.572 g
  • Country Of Origin
    MX
  • Feature: Integral Muting
    No
  • Feature: ESD Safe
    No
  • Feature: End-to-End Sensing
    No
  • Test Input
    No
  • Trip/Latch Output
    Selectable
  • Supply Current
    275 mA max.
  • Housing Material
    Aluminum; Zinc; Acrylic
  • OSSD Rating
    24 V dc at 0.5 A each
  • Fault Output
    No
  • Vibration
    10-55 Hz at 0.35 mm
  • System Type
    Receiver
  • Short Protection
    Yes
  • Shock
    10g at 16ms (6000 cycles)
  • Electrical Safety Class
    III
  • Response Time
    15
  • Resolution (mm)
    14
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Operating Distance (m)
    0.1 - 6
  • Feature: Cascade
    Yes
  • Auxiliary Output
    Yes
  • Scan Code
    Selectable
  • SIL Rating
    SIL3; CL3
  • Reduced Resolution
    Yes
  • Recovery Time
    33-220 / 109-800
  • PL Rating
    Ple
  • Operating Voltage
    24 V dc +/- 15%
  • Number of Pins (Receiver/Emitter)
    8
  • IP Rating
    IP65
  • Fixed Blanking
    Yes
  • Housing Finish
    Yellow Polyester
  • Defined Area Height (mm)
    300
  • Primary Housing Material
    Aluminum
  • Connector Type
    M12 Pigtail (Yellow)
  • Dimensions WxD (mm)
    36 x 45.2
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Overall Length (mm)
    372
  • External Monitoring Device
    1 or 2 Channel
  • Safety Level
    Type 4
  • low-profile
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSCR14-300P8 on Powermatic Associates is $1,212.00. Order now.

About the product

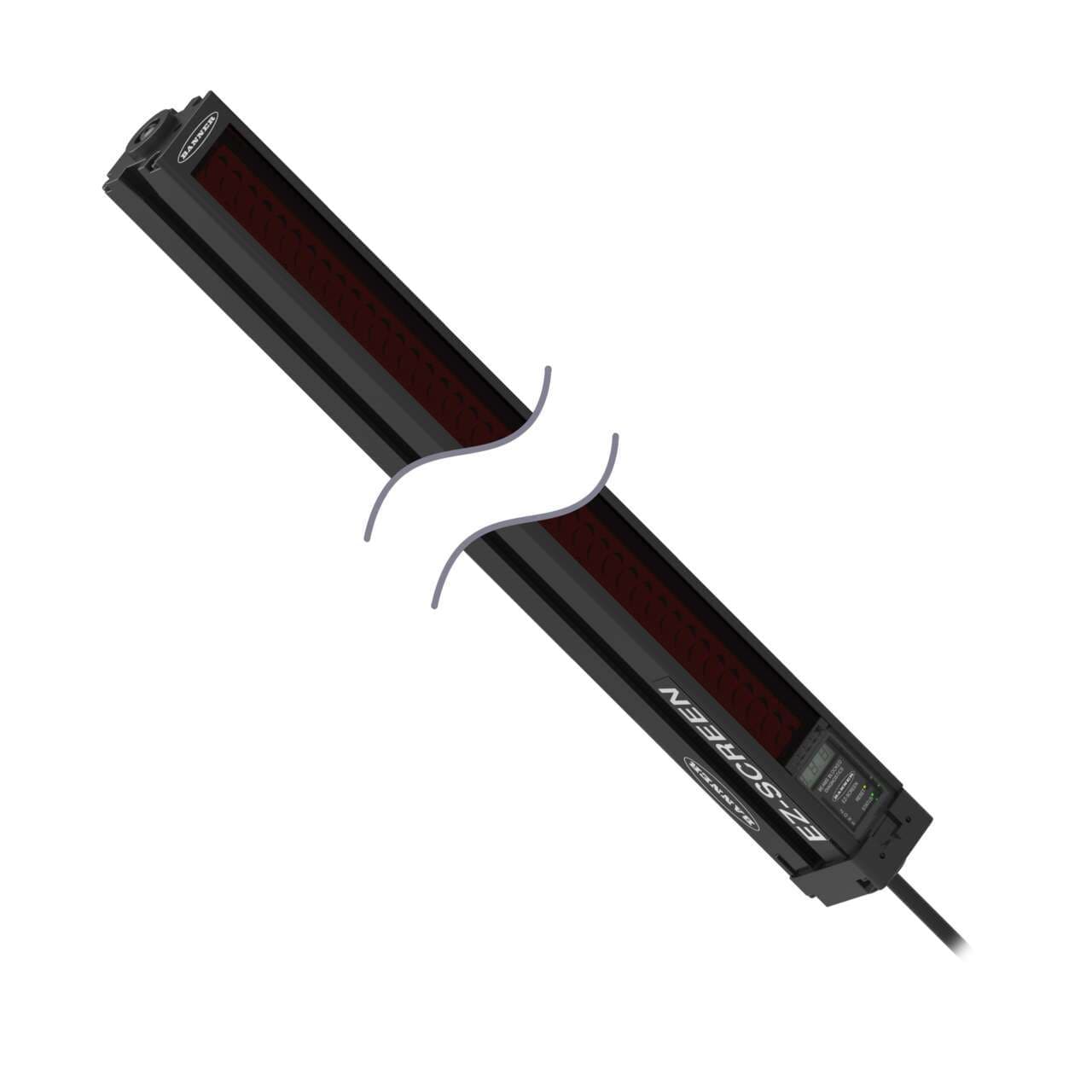

Banner Engineering SLSCR14-300P8 is a safety light curtain from the SLS series, designed with a cascadable feature. This part, functioning as a receiver alone, is constructed with an aluminium housing, acrylic lens, and die-cast zinc end caps. It is pre-wired with a 300mm pigtail that terminates with an 8-pin Euro-style M12 connector. The device offers a protective height of 300mm and comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. The SLSCR14-300P8 is IP65 rated, indicating its protection level against dust and water. It has a net width of 36mm, a height of 372mm, and a depth of 46mm. The light curtain features a 14mm beam spacing/pitch for finger detection, a sensing distance ranging from 10cm to 6m, and a response time of 15ms. It is equipped with two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary purposes, one digital input (10Vdc-30Vdc) for EDM, and one digital input (10Vdc-30Vdc) for reset functions.
