SLPP14-270NP88 Banner Safety Light Curtains
Part#:SLPP14-270NP88
Manufacturer:Banner
Alt. Part#:84160
Product Lifecycle:Active
Get a quick Quote!
SLPP14-270NP88 EZS LP PNIR14 mm x 270 mm PIGTAIL
About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SLPP14-270NP88 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 2123.264152 g
- Country Of Origin US
- Feature: End-to-End Sensing Yes
- Feature: Integral Muting No
- Feature: ESD Safe Yes
- Trip/Latch Output Selectable
- Test Input Yes
- Supply Current 210 mA max.
- OSSD Rating 24 V dc at 0.5 A each
- Housing Material Aluminum; Zinc; Acrylic
- Fault Output Yes
- Vibration 10-55 Hz at 0.35 mm
- Auxiliary Output Yes
- System Type Emitter/Receiver Pair
- Short Protection Yes
- Shock 10g at 16ms (6000 cycles)
- Scan Code Selectable
- Resolution (mm) 14
- Electrical Safety Class III
- SIL Rating SIL3; CL3
- Response Time 10.5
- Reduced Resolution Yes
- Recovery Time 33-220 / 109-800
- PL Rating Ple
- Number of Pins (Receiver/Emitter) 8
- IP Rating IP65
- Operating Temperature 0 to +55 deg. C; RH 95%
- Operating Distance (m) 0.1 - 7
- Operating Voltage 24 V dc +/- 15%
- Housing Finish Nickel Plated
- Fixed Blanking Yes
- Primary Housing Material Aluminum
- Dimensions WxD (mm) 28 x 26
- Safety Level Type 4
- External Monitoring Device 1 or 2 Channel
- Connector Type M12 Pigtail (Yellow)
- Overall Length (mm) 270
- Defined Area Height (mm) 270
- low-profile Yes
- Effective Aperture Angle Type 4 Per IEC 61496-2
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
SLPP14-270NP88 Description

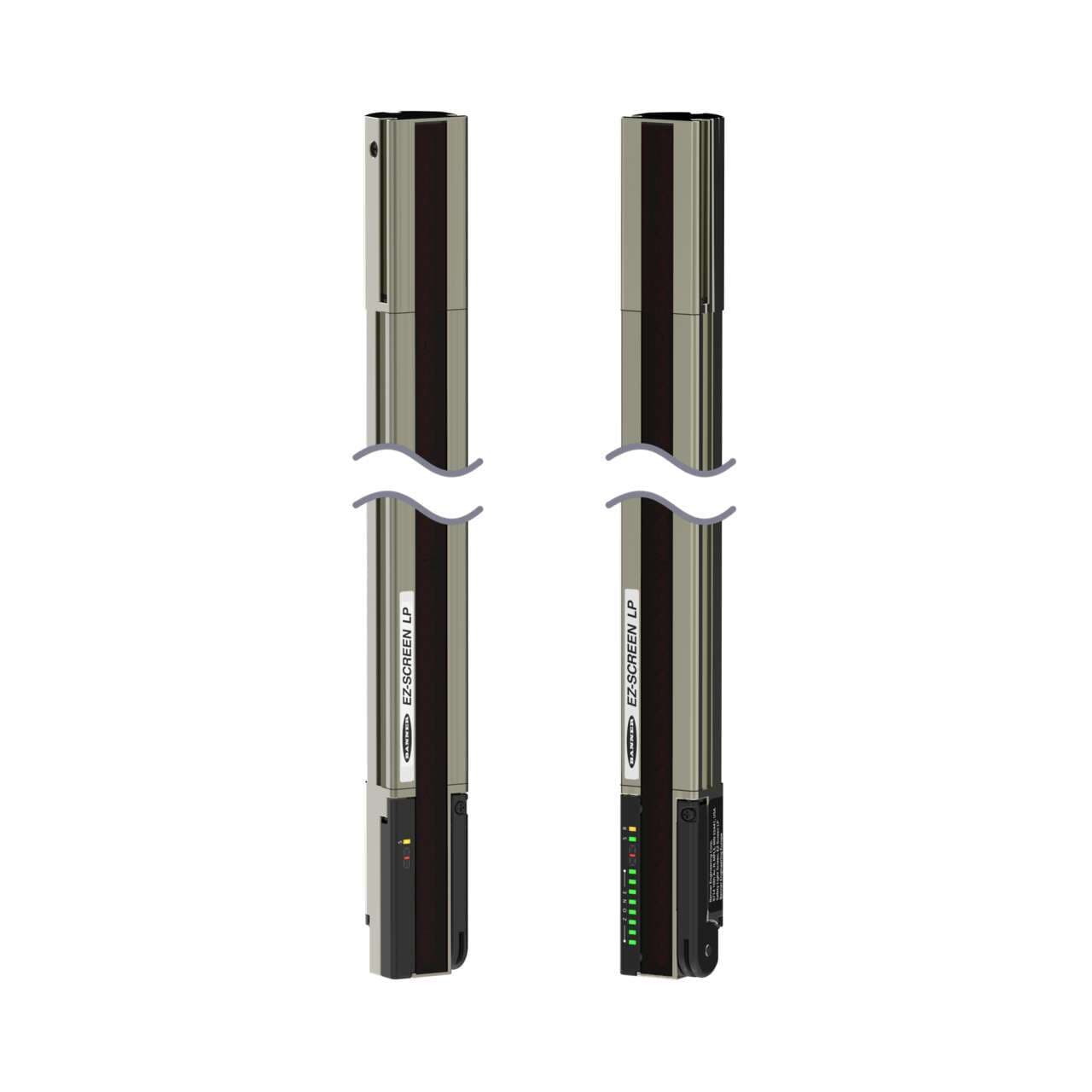

Banner Engineering SLPP14-270NP88 is a safety light curtain from the LP Low-Profile series designed with an ESD-safe construction. It features a nickel-plated aluminum housing, acrylic lens, and zinc end caps. This part functions as a safety light curtain, comprising both emitter and receiver pairs, and is pre-wired with a 300mm pigtail that terminates with an 8-pin Euro-style M12 connector. It offers a protective height of 270mm and comes in a silver housing. The SLPP14-270NP88 operates on a 24Vdc supply voltage and is suitable for ambient air temperatures ranging from 0 to +55°C. It is rated with an IP65 degree of protection. The dimensions include a net width of 28mm, a net height of 270mm, and a net depth of 26mm. The light curtain features a 14mm beam spacing/pitch, providing a resolution suitable for finger detection. It has a sensing distance ranging from 10cm to 7m and uses infrared (IR) light with a wavelength of 850 nm. The digital outputs consist of 2 x 24Vdc, 500mA sourcing redundant OSSD solid-state outputs, and 1 x 24Vdc, 250mA PNP transistor FAULT output. Additionally, it includes 1 x digital input (10Vdc-30Vdc; 30mA) for EDM input and 1 x digital input (10Vdc-30Vdc) for RESET input. The response time is 10.5ms / 0.0105 s.
Related documents SLPP14-270NP88 Specs
