SLPP14-270A Banner Safety Light Curtains

SLPP14-270A on Powermatic Associates
Banner
  • SLPP14-270A
  • SLPP14-270A

Part#:SLPP14-270A

Alt. Part#:83896

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

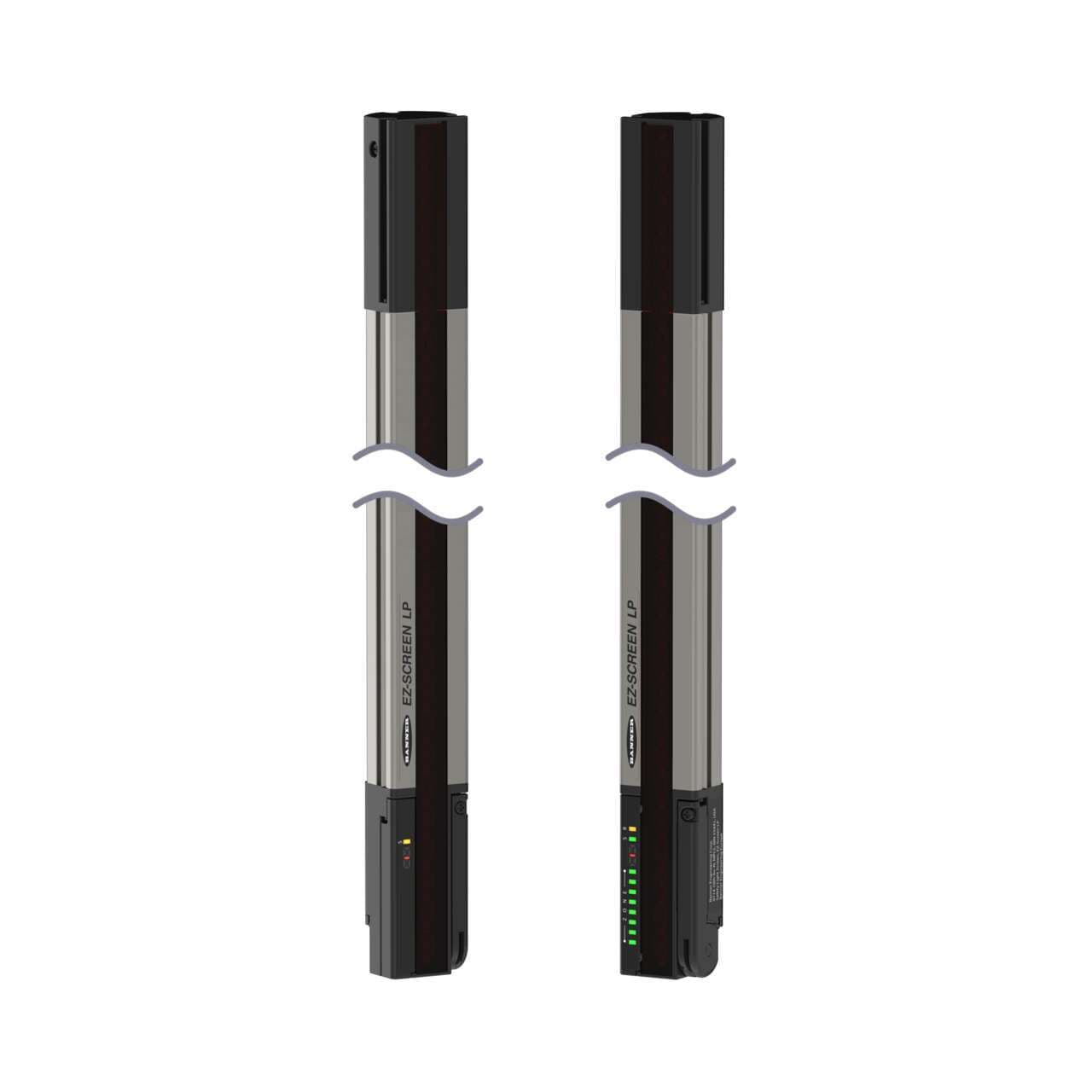

SLPP14-270 A EZ-SCREEN Low Profile PAIR; Resolution: 14 mm; Response (Tr): 10.5 ms; Beams: 27; Range: 0.1-7 m (4 in - 23 ft); Height: 270 mm (10.6 in); Integral RD; Housing: Anodized Aluminum

Product Details

  • Weight
    3364.745456 g
  • Country Of Origin
    US
  • Trip/Latch Output
    Selectable
  • Housing Material
    Aluminum; Zinc; Acrylic
  • System Type
    Emitter/Receiver Pair
  • Vibration
    10-55 Hz at 0.35 mm
  • Scan Code
    Selectable
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Operating Voltage
    24 V dc +/- 15%
  • External Monitoring Device
    1 or 2 Channel
  • Dimensions WxD (mm)
    28 x 26
  • Feature: End-to-End Sensing
    Yes
  • Feature: Integral Muting
    No
  • Feature: ESD Safe
    No
  • OSSD Rating
    24 V dc at 0.5 A each
  • Fault Output
    Yes
  • Test Input
    Yes
  • Supply Current
    210 mA max.
  • Auxiliary Output
    Yes
  • Short Protection
    Yes
  • Reduced Resolution
    Yes
  • Shock
    10g at 16ms (6000 cycles)
  • Response Time
    10.5
  • Electrical Safety Class
    III
  • SIL Rating
    SIL3; CL3
  • PL Rating
    Ple
  • Resolution (mm)
    14
  • Fixed Blanking
    Yes
  • Recovery Time
    33-220 / 109-800
  • Housing Finish
    Clear Anodized
  • Operating Distance (m)
    0.1 - 7
  • IP Rating
    IP65
  • Overall Length (mm)
    270
  • Defined Area Height (mm)
    270
  • Safety Level
    Type 4
  • Connector Type
    Removable Disconnect
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Primary Housing Material
    Aluminum
  • low-profile
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLPP14-270A on Powermatic Associates is $1,679.00. Order now.

About the product

Banner Engineering SLPP14-270A is a safety light curtain from the LP Low-Profile series designed for finger detection with a resolution of 14mm. This unit comprises an emitter and receiver pair housed in clear anodized aluminum with acrylic lens and zinc end caps. It features an integral removable disconnect (RD) for connection, and its dimensions include a protective height of 270mm, a net width of 28mm, and a net depth of 26mm. The housing is gray, and it operates on a 24Vdc supply voltage. The SLPP14-270A is designed to function within an ambient air temperature range of 0 to +55°C and offers a degree of protection rated at IP65. It has a 14mm beam spacing/pitch and provides a sensing distance from 10cm up to 7m. The light curtain emits infrared (IR) light with a wavelength of 850 nm. It features two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; 250mA; PNP transistor) for fault indication, one digital input (10Vdc-30Vdc; 30mA) for external device monitoring (EDM), and one digital input (10Vdc-30Vdc) for reset functions. The response time of the device is 10.5ms / 0.0105 s.
