SLPE25-270A Banner Electronic Components

SLPE25-270A on Powermatic Associates
Banner

Part#:SLPE25-270A

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

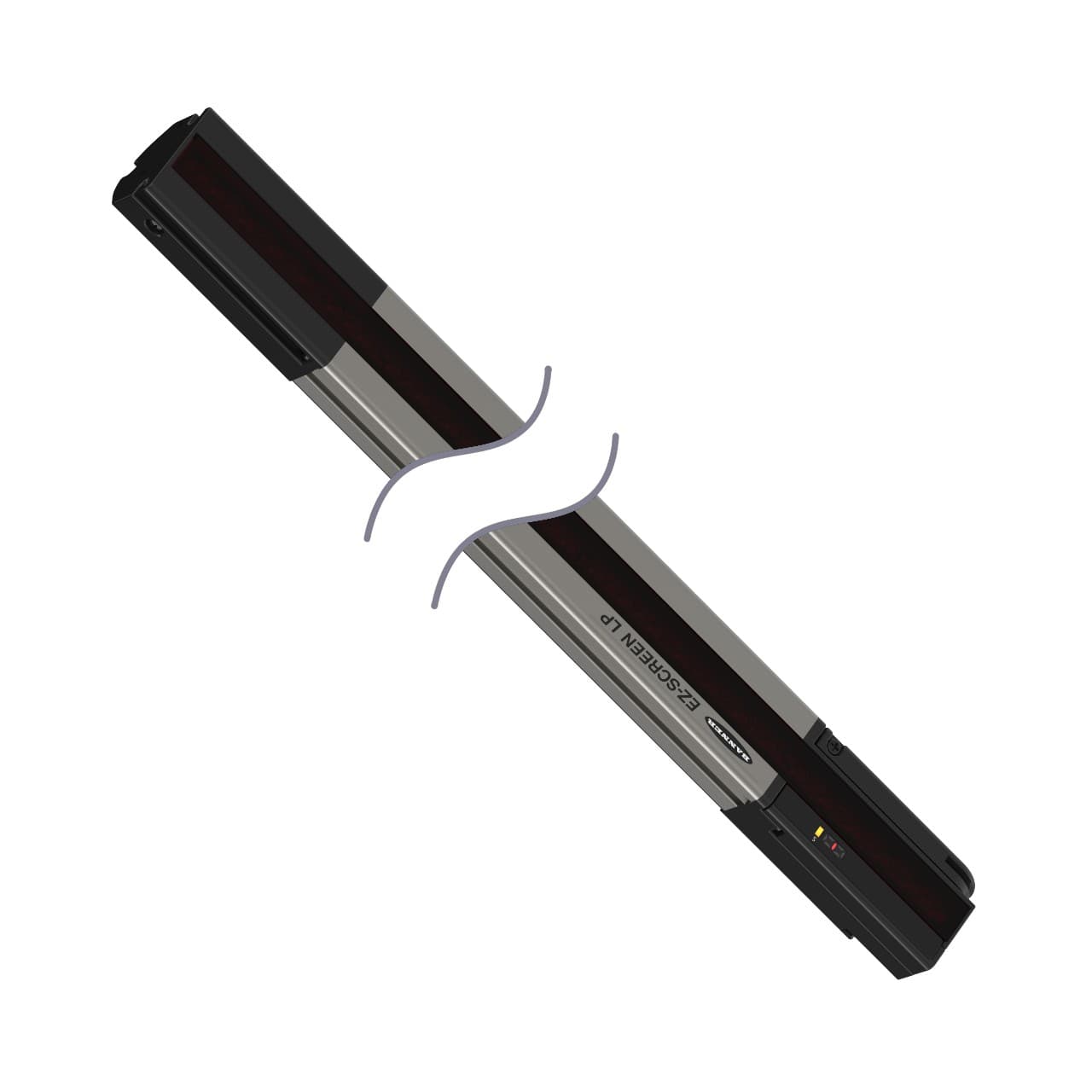

SLPE25-270A EZ-SCREEN Low Profile EMITTER, Resolution: 25 mm; Response (Tr): 8 ms; Beams: 14, Range: 0.1 to 7 m ( 4in. to 23 ft.); Height: 270 mm (10.6 in.), Connection: integral RD; Housing: Anodized Aluminum

Product Details

  • Feature: Integral Muting
    No
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Feature: ESD Safe
    No
  • Feature: End-to-End Sensing
    Yes
  • Test Input
    Yes
  • Trip/Latch Output
    N/A
  • Supply Current
    60 mA max.
  • OSSD Rating
    N/A
  • Fault Output
    Yes
  • Auxiliary Output
    No
  • Vibration
    10-55 Hz at 0.35 mm
  • Short Protection
    Yes
  • SIL Rating
    SIL3; CL3
  • Shock
    10g at 16ms (6000 cycles)
  • System Type
    Emitter
  • Scan Code
    Selectable
  • Electrical Safety Class
    III
  • Reduced Resolution
    No
  • Response Time
    8
  • Resolution (mm)
    25
  • Recovery Time
    25-152 / 81-495
  • IP Rating
    IP65
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • PL Rating
    Ple
  • Operating Voltage
    24 V dc +/- 15%
  • Operating Distance (m)
    0.1 - 7
  • Housing Finish
    Clear Anodized
  • Fixed Blanking
    No
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Safety Level
    Type 4
  • Defined Area Height (mm)
    270
  • Dimensions WxD (mm)
    28 x 26
  • External Monitoring Device
    No
  • Overall Length (mm)
    270
  • Connector Type
    Removable Disconnect
  • Primary Housing Material
    Aluminum
  • low-profile
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SLPE25-270A Related Documents

EZ-SCREEN LP, SLP.... 270mm-1630955701308.pdfEZ-SCREEN LP, SLP.... 270mm-1630955701312.stp
