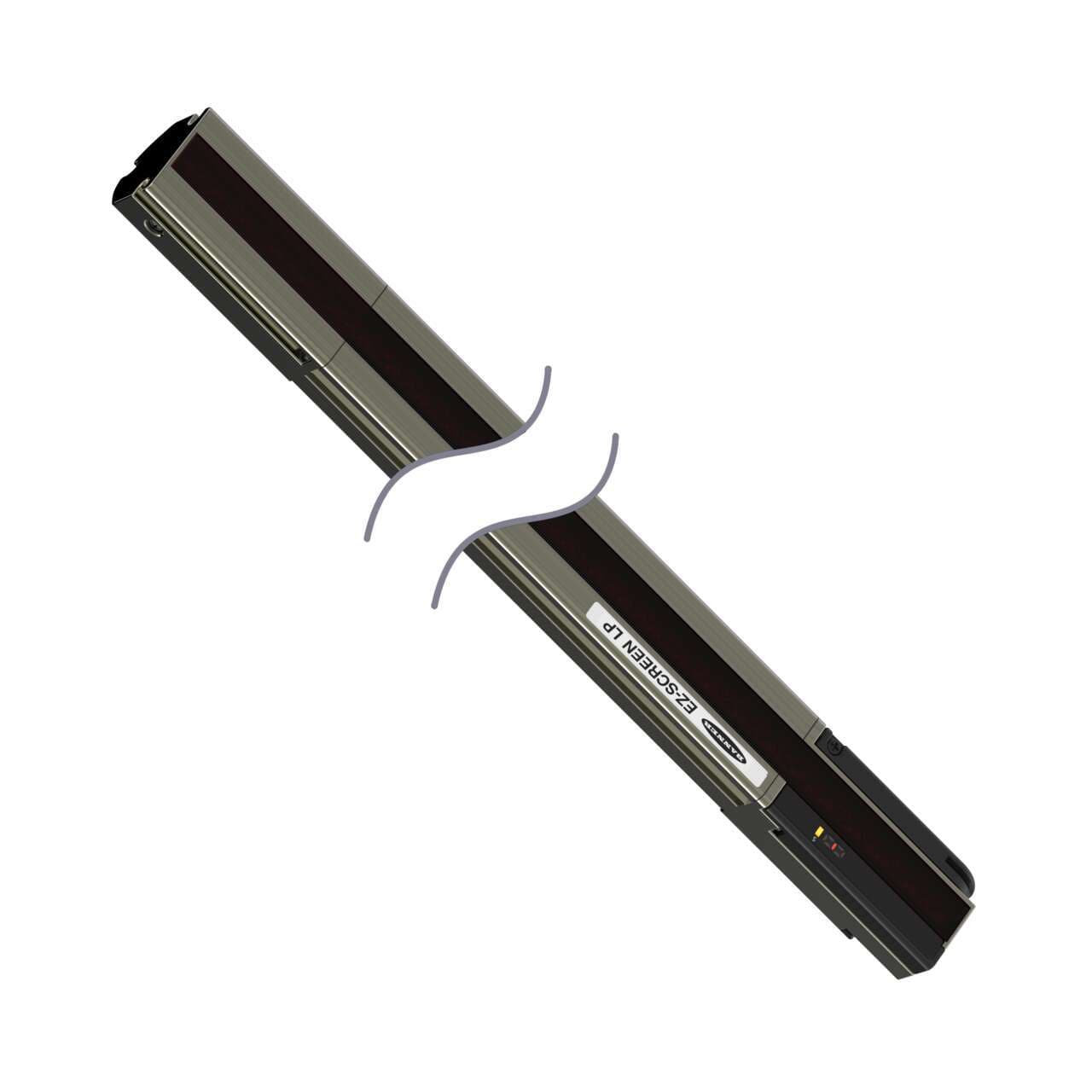

SLPE14-270NP8 Banner Safety Light Curtains

SLPE14-270NP8 on Powermatic Associates
Banner
  • SLPE14-270NP8
  • SLPE14-270NP8

Part#:SLPE14-270NP8

Alt. Part#:84136

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

SLPE14-270NP8 EZS LP EMTR14 mm x 270 mm PIGTAIL

Product Details

  • Weight
    163.29312 g
  • Country Of Origin
    US
  • Feature: Integral Muting
    No
  • Feature: ESD Safe
    Yes
  • Test Input
    Yes
  • Trip/Latch Output
    N/A
  • Supply Current
    60 mA max.
  • OSSD Rating
    N/A
  • Feature: End-to-End Sensing
    Yes
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Fault Output
    Yes
  • Auxiliary Output
    No
  • Vibration
    10-55 Hz at 0.35 mm
  • System Type
    Emitter
  • Short Protection
    Yes
  • Shock
    10g at 16ms (6000 cycles)
  • Scan Code
    Selectable
  • Electrical Safety Class
    III
  • SIL Rating
    SIL3; CL3
  • Response Time
    10.5
  • Reduced Resolution
    No
  • Resolution (mm)
    14
  • Recovery Time
    33-220 / 109-800
  • PL Rating
    Ple
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Operating Distance (m)
    0.1 - 7
  • Operating Voltage
    24 V dc +/- 15%
  • Number of Pins (Receiver/Emitter)
    8
  • IP Rating
    IP65
  • Housing Finish
    Nickel Plated
  • Fixed Blanking
    No
  • External Monitoring Device
    No
  • Overall Length (mm)
    270
  • Dimensions WxD (mm)
    28 x 26
  • Connector Type
    M12 Pigtail (Yellow)
  • Defined Area Height (mm)
    270
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Safety Level
    Type 4
  • Primary Housing Material
    Aluminum
  • low-profile
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLPE14-270NP8 on Powermatic Associates is $885.00. Order now.

About the product

Banner Engineering SLPE14-270NP8 is a safety light curtain from the LP Low-Profile series designed with an ESD-safe construction. This part, functioning as an emitter alone, features a nickel-plated aluminum housing, acrylic lens, and zinc end cap. It is pre-wired with a 300mm pigtail that terminates with an 8-pin Euro-style M12 connector. The SLPE14-270NP8 offers a protective height of 270mm and comes in a silver housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. This part is IP65 rated, indicating protection against dust ingress and low-pressure water jets. It has a net width of 28mm, a net height of 270mm, and a net depth of 26mm. The light curtain features a 14mm beam spacing/pitch, providing finger detection resolution. It includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one digital output (24Vdc; 250mA; PNP transistor) for fault indication. The sensing distance ranges from 10cm to 7m, with an infrared light color, a response time of 10.5ms, and a wavelength of 850nm.
