SLLP23-350P88 Banner Safety Light Curtains

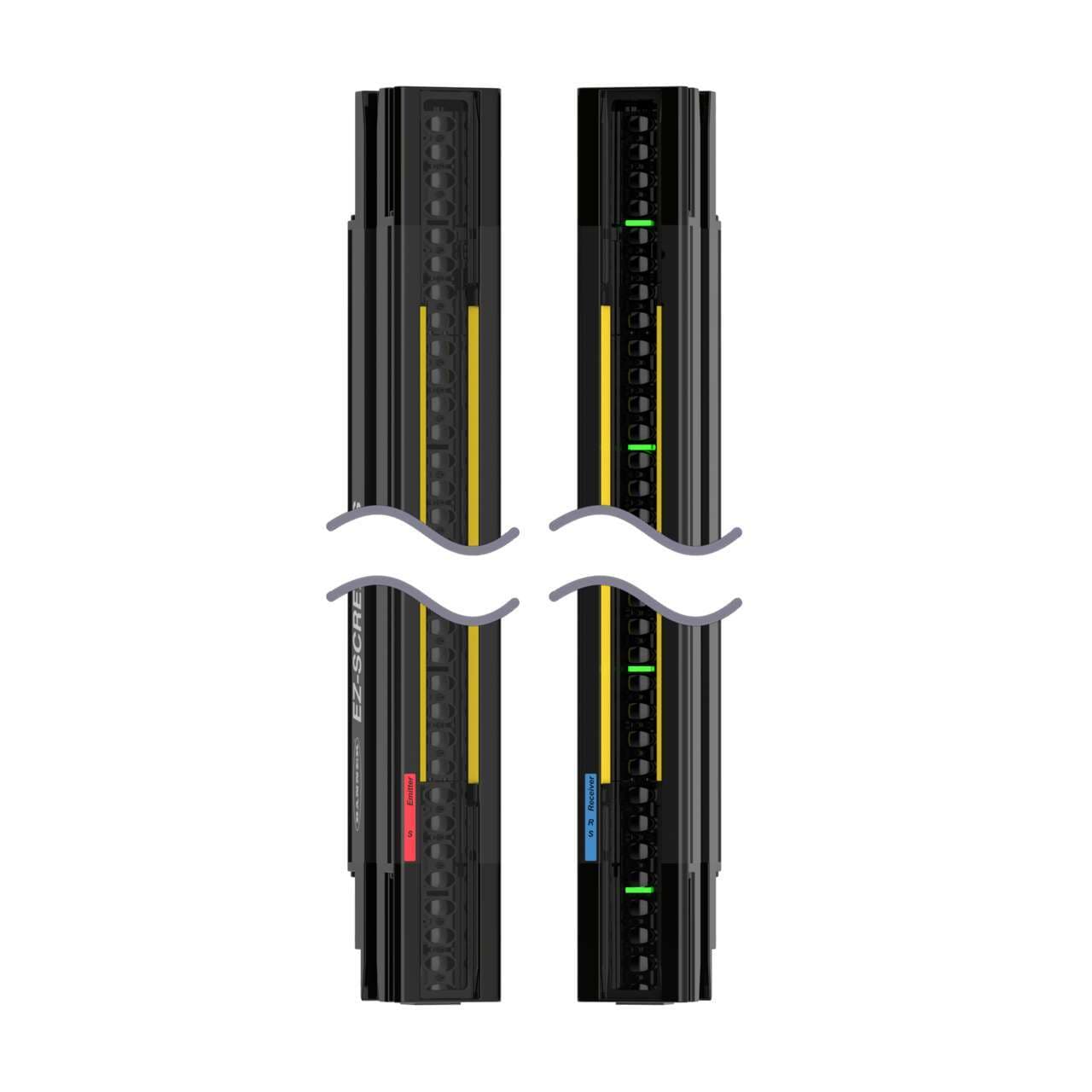

Banner Engineering SLLP23-350P88 is a safety light curtain from the LS series type 4 safety light curtains, designed for hand detection with a resolution of 23mm. This unit features an emitter and receiver pair housed in aluminum with acrylic lenses and zinc end caps. It comes pre-wired with a 300mm pigtail that terminates in an 8-pin Euro-style M12 connector. The protective height of the device is 350mm, and it has a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of -20 to +55°C. The SLLP23-350P88 offers a degree of protection rated at IP65 and IP67, with dimensions including a net width of 36mm, a net height of 355mm, and a net depth of 45mm. The safety light curtain features a sensing distance of 10cm to 12m and a beam spacing/pitch of 23mm. It is equipped with two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; 100mA; sourcing/PNP transistor) for CSSI status, and one digital output (24Vdc; sourcing/PNP transistor; 70mA) for emitter FAULT. Additionally, it includes one digital input (10Vdc-30Vdc; 30mA) for EDM and one for scan code input. The response time of the device is 9.1ms.
