SLLP23-1820P55 Banner Safety Light Curtains

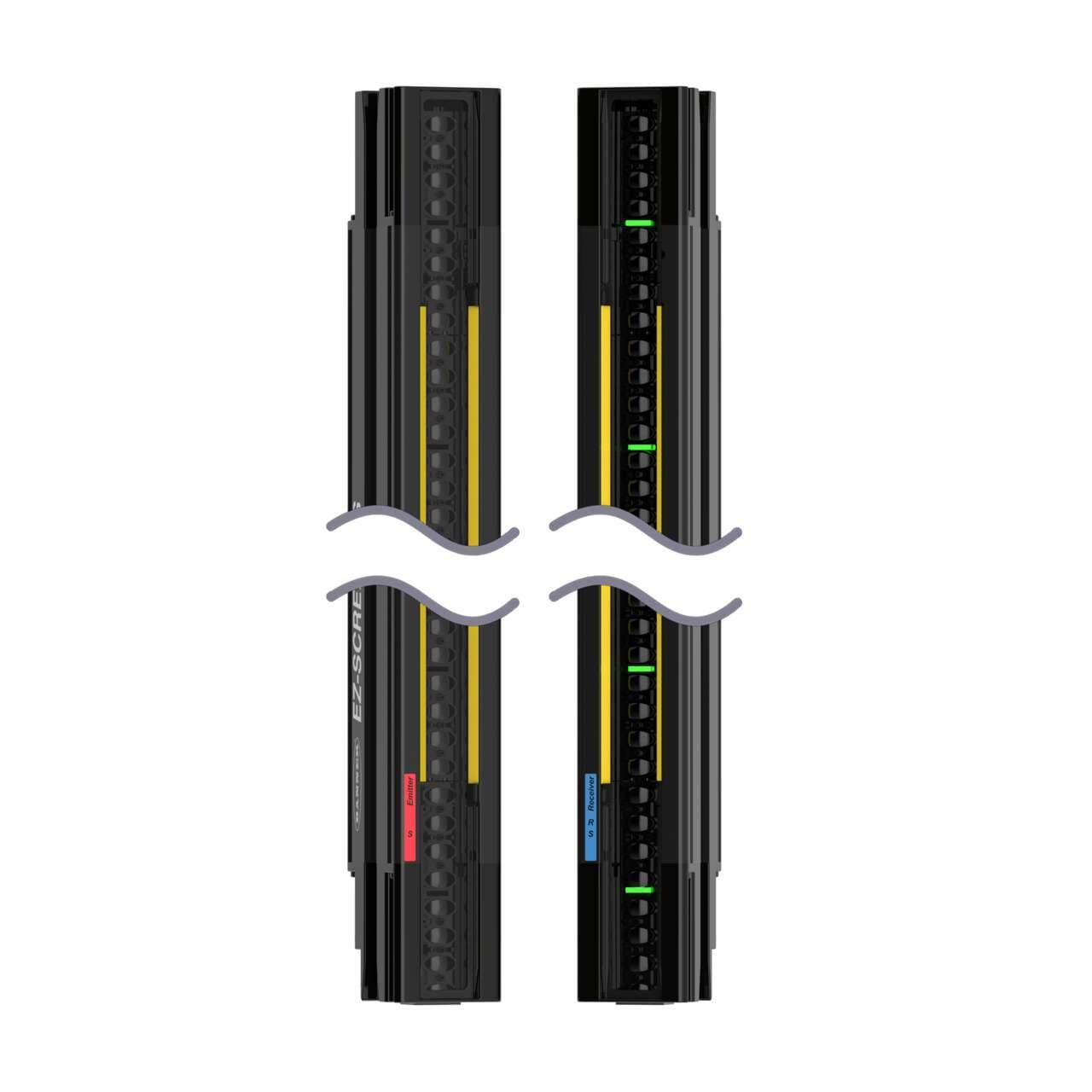

Banner Engineering SLLP23-1820P55 is a safety light curtain from the LS series type 4 safety light curtains designed for hand detection with a resolution of 23mm. This unit features an emitter and receiver pair housed in aluminum with acrylic lenses and zinc end caps. It comes pre-wired with a 300mm pigtail that terminates with a 5-pin Euro-style M12 connector. The protective height of the device is 1820mm, and it has a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of -20 to +55°C. The SLLP23-1820P55 offers a degree of protection rated at IP65 and IP67, ensuring durability in various environments. The net dimensions are 36mm in width, 1821mm in height, and 45mm in depth. The safety light curtain features a 23mm beam spacing/pitch and provides a sensing distance between 10cm and 12m. It has a response time of 26.9ms. For outputs, it includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), 1 x digital output (24Vdc; 100mA; sourcing/PNP transistor) for CSSI status, and 1 x digital output (24Vdc; sourcing/PNP transistor; 70mA) for emitter FAULT indication.
