SAB-998AB1DXL13-Q5E Banner Safety Light Curtains
Part#:SAB-998AB1DXL13-Q5E
Alt. Part#:805076
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Series: 13 Beam Sensor Array Diffuse; Range: 30 in off White Card; Input: 10-30 V dc; Outputs: Bipolar NPN and PNP Light Operate; 150 mm (6 in) M12 Pigtail QD
Product Details
- Weight 1732.72144 g
- Country Of Origin US
- Beam to Beam Spacing [mm] 76.2
- Number of Beams 13
- Max Op. Relative Humidity (%) 95% @ 50°C
- Max Op. Temperature (°C) 55
- Operation Light Operate
- Indicator Indicator LEDs
- Slot Overall Depth (mm) 36
- Delay at Power-up (ms) N/A
- IP Rating IP50
- Power Supply/Supply Voltage 10-30 V dc
- Outputs Bipolar (NPN & PNP)
- Slot Depth/Array Length (mm) 998
- Distance to First Beam [mm] 42
- Min Op. Temperature (°C) -20
- NEMA Rating N/A
- Lens Material Acrylic
- Adjustments N/A
- Repeatability (µs) N/A
- Output response time (ms) 3
- Number of Pins 4
- Sensing Mode (Detailed) Diffuse
- Quick Disconnect Type M12 (Euro)
- Connection Pigtail QD
- Primary Housing Material Black Anodized Aluminum
- Cable Length (m) 0.2
- Max Sensing Range (mm) 762
- Housing Style Sensing Array Bar
- Power DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SAB-998AB1DXL13-Q5E on Powermatic Associates is $978.00. Order now.
About the product

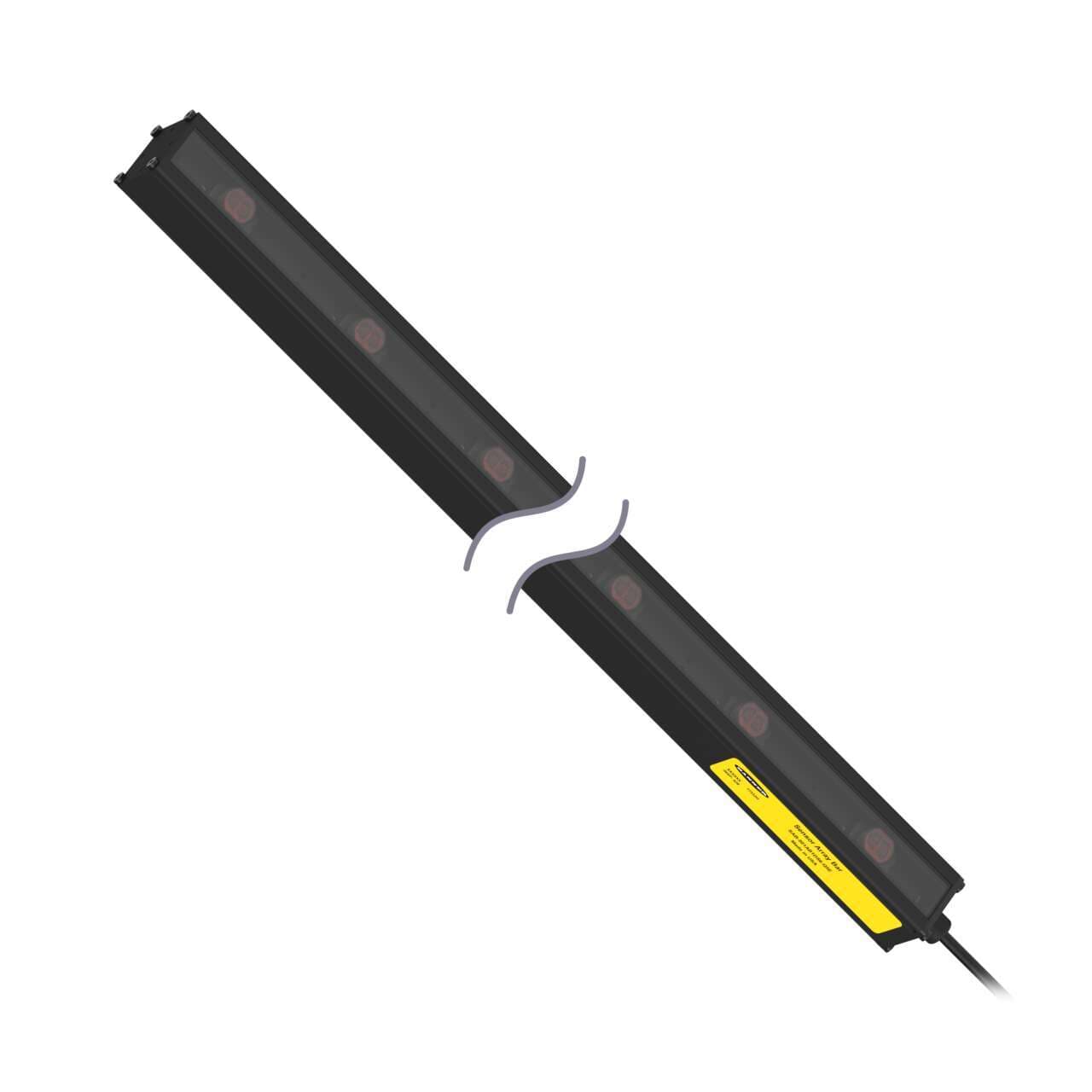

Banner Engineering SAB-998AB1DXL13-Q5E is a polarized measuring light curtain array sensor from the QS18 series, designed in a retro-reflective mode. This sensor features an anodized aluminum housing with an acrylic lens and is pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector. It offers a protective height of 30" / 910mm and operates within a supply voltage range of 10Vdc-30Vdc (12Vdc / 24Vdc nom.). The sensor can function in ambient air temperatures ranging from -20 to +55°C and has an IP50 degree of protection. Its rectangular shape measures 36 mm in width, 998 mm in height, and 38 mm in depth. The SAB-998AB1DXL13-Q5E features 1 x digital output (PNP/NPN transistor), a sensing distance of 30" / 762mm, operates in Light-ON mode, and utilizes infrared (IR) light with a wavelength of 940 nm. The housing is black.
