SAB-497AB1DS6-Q5E Banner Safety Light Curtains

Name: SAB-497AB1DS6-Q5E
Brand: Banner
Price: 656 USD
Availability: BackOrder

SAB-497AB1DS6-Q5E on Powermatic Associates

Part#:SAB-497AB1DS6-Q5E

Manufacturer:Banner

Category:Safety Light Curtains

Alt. Part#:805075

Product Lifecycle:Active

Get a quick Quote!

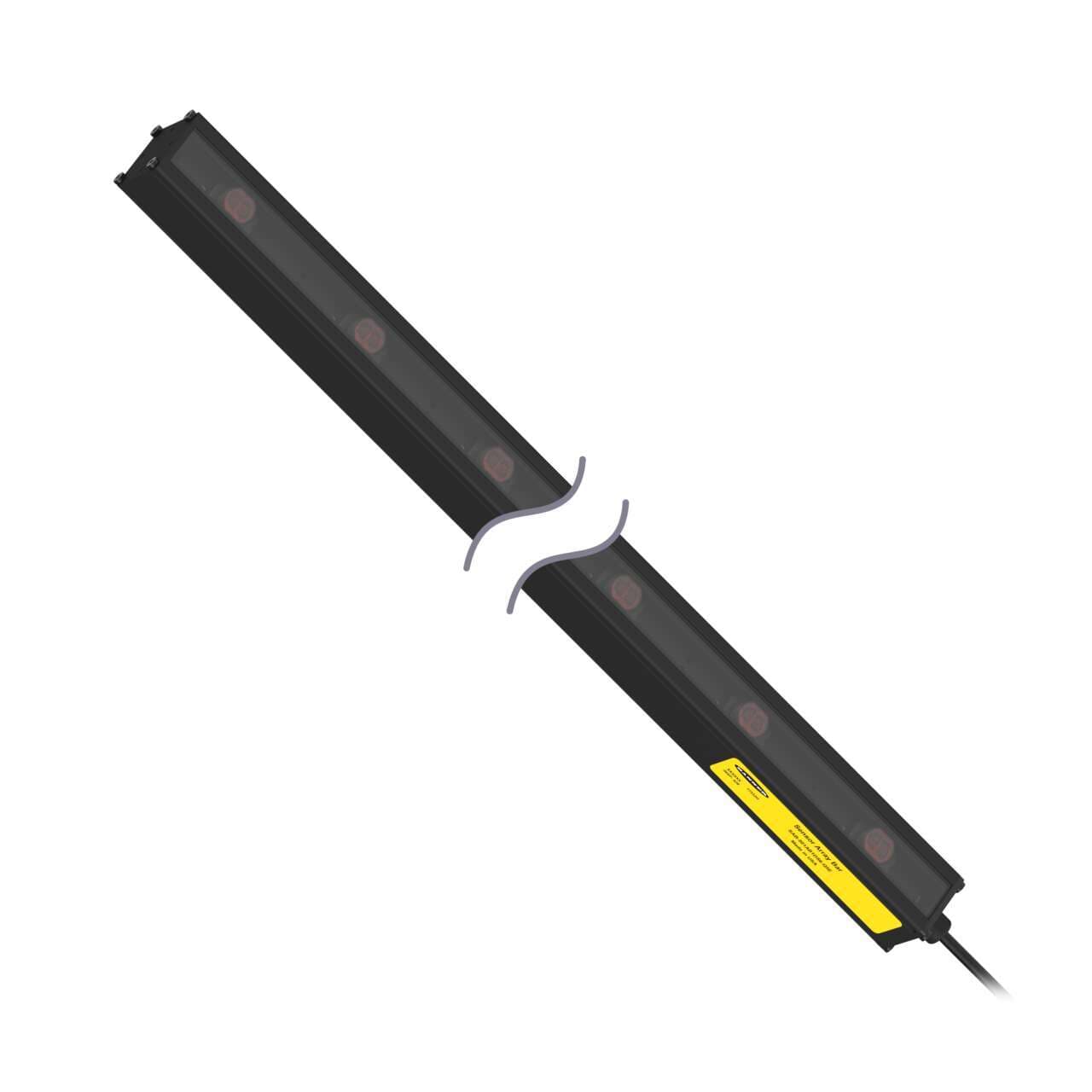

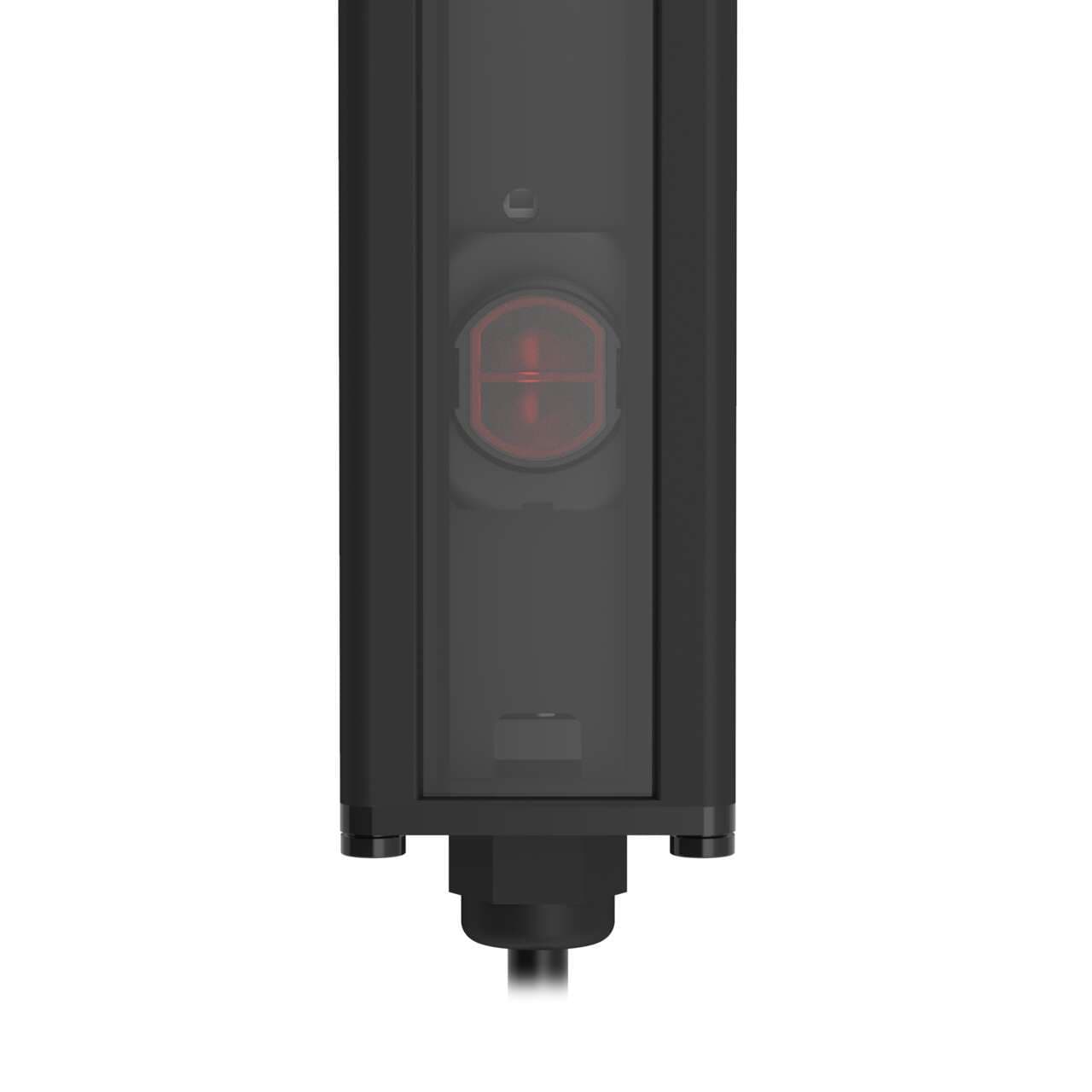

WORLD-BEAM QS18 Series: 6 Beam Sensor Array; Diffuse; Range: 200 mm; Input: 10-30 V dc; Outputs: Bipolar NPN and PNP Light Operate; 150 mm (6 in) 4-pin M12 Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SAB-497AB1DS6-Q5E Banner price in the box on the right side or send a quick quote.

Product Details

Weight
907.184 g
Country Of Origin
US
Feature: Audible
No
Beam to Beam Spacing [mm]
82.6
Distance to First Beam [mm]
42.0
Number of Beams
6
Feature: Hazardous Area
No
Feature: Encapsulated
No
Feature: Timing (Hold/Delay)
No
NEMA Rating
N/A
Delay at Power-up (ms)
N/A
Lens Material
Acrylic
Operation
Light Operate
IP Rating
IP50
Max Op. Relative Humidity (%)
95% @ 50°C
Indicator
Indicator LEDs
Min Op. Temperature (°C)
-20
Max Op. Temperature (°C)
55
Adjustments
N/A
Repeatability (µs)
N/A

Power Supply/Supply Voltage

10-30 V dc

Output response time (ms)

Quick Disconnect Type

M12 (Euro)

Outputs

Bipolar (NPN & PNP)

Number of Pins

Slot Overall Depth (mm)

Connection

Pigtail QD

Primary Housing Material

Black Anodized Aluminum

Max Sensing Range (mm)

200

Sensing Mode (Detailed)

Diffuse

Housing Style

Sensing Array Bar

Slot Depth/Array Length (mm)

497

Input/Output

Discrete

Cable Length (m)

0.2

Sensing Mode (General)

Proximity

Power

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SAB-497AB1DS6-Q5E Description

Banner Engineering SAB-497AB1DS6-Q5E is a sensor from the QS18 series designed as a diffuse mode measuring light curtain array sensor. It features an anodized aluminum housing with an acrylic lens and is pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector. This sensor has a protective height of 413mm and comes in a black housing. It operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and can function within an ambient air temperature range of -20 to +55°C. With an IP50 degree of protection, it is designed in a rectangular shape with dimensions of 36mm in width, 497mm in height, and 38mm in depth. The SAB-497AB1DS6-Q5E features 1 x digital output (PNP/NPN transistor), has a sensing distance of 8" / 200mm, utilizes infrared (IR) light with a wavelength of 940 nm, and operates in Light-ON mode.
