S186E Banner Retroreflective Sensors

S186E on Powermatic Associates
Banner

Part#:S186E

Alt. Part#:29409

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

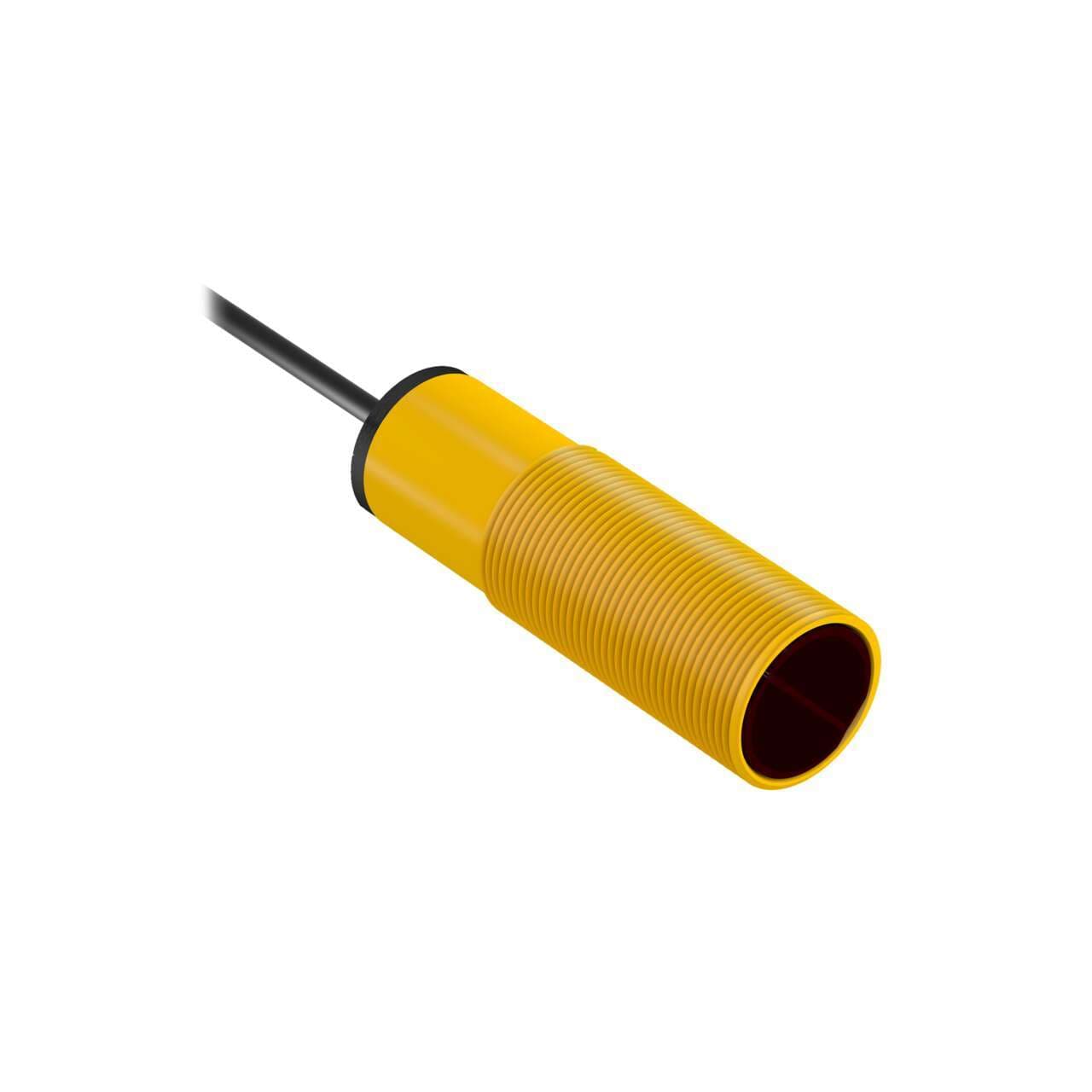

EZ-BEAM S18 Series: Emitter; Range: 20 m; Input: 10-30 V dc; Output: Not Applicable; 2 m (6.5 ft) Cable

Product Details

  • Weight
    135.170416 g
  • Country Of Origin
    MX
  • DeviceNet
    No
  • Feature: Chemical Resistant
    No
  • IO Link
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    No
  • Feature: Washdown Rated
    Yes
  • Feature: Ecolab Certified
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Indicator
    LEDs
  • Opposed Mode Emitter/Receiver
    Emitter
  • Barrel Diameter (mm)
    18
  • Lens Material
    Polycarbonate
  • Adjustments
    N/A
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • NEMA Rating
    NEMA 6P
  • Number of Pins
    2
  • Special Feature: Remote Teach
    No
  • IP Rating
    IP67, IP69
  • Special Feature: Water Detection
    No
  • Delay at Power-up (ms)
    100
  • Repeatability (µs)
    375
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    N/A
  • Max Op. Temp. (°C)
    70
  • Min Op. Temp. (°C)
    -40
  • Quick Disconnect Type
    No QD
  • Power Supply/Supply Voltage
    10-30 V dc
  • Connection
    Cable
  • Outputs
    N/A
  • Operation
    N/A
  • Sensing Mode (General)
    Opposed
  • Power
    DC
  • Cable Length (m)
    2
  • Primary Housing Material
    Thermoplastic
  • Sensing Mode (Detailed)
    Emitter
  • Housing Style
    Barrel
  • Sensing Beam
    Infrared LED
  • Max Sensing Distance (mm)
    20000
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Main function
    Sensor (Photo-electric)
  • Light Color
    Infrared (IR)
  • Compliant with standard(s)
    cULus cCSAus CE
  • Primary brand
    Banner Engineering
  • Functions
    Photo-electric emitter green LED (power ON) amber LED (output state)
  • Wavelength
    950 nm
  • Sub-range name
    S18 DC series
  • Design
    through-beam system / opposed mode
  • Thread size
    M18
  • Product series / family name
    EZ-BEAM series
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Material
    thermoplastic housing Polycarbonate lns.
  • Shape
    Cylindrical threaded/barrel
  • Ambient air temperature for operation
    -40...+70 °C
  • Order code / Manufacturer SKU
    29409
  • Degree of protection
    IP67 IP69K NEMA 6P

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S186E on Powermatic Associates is $46.00. Order now.

About the product

Banner Engineering S186E is a photo-electric sensor designed as part of the S18 DC series, featuring a through-beam system in an opposed mode configuration. This sensor functions as an emitter alone, housed in a thermoplastic with a polycarbonate lens. It comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for connection. The S186E operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It is designed to function within an ambient air temperature range of -40 to +70°C. This sensor offers a high degree of protection with ratings of IP67, IP69K, and NEMA 6P, ensuring durability in various environmental conditions. Its M18 cylindrical threaded/barrel shape allows for straightforward installation, and it has a sensing distance of up to 20m. The S186E utilizes infrared light with a wavelength of 950 nm for detection, and it is equipped with an M18 thread size for mounting.
