S18-2VNRS-2M
Banner
Product Lifecycle: Active
Banner Engineering S18-2VNRS-2M is a photo-electric sensor designed as part of the S18-2 series, featuring a through-beam system with opposed mode potentiometer adjustment for precise control. This sensor, functioning as the receiver component, is encased in a thermoplastic housing with an acrylic lens for durability. It comes pre-wired with a 6.5ft / 2m cable that terminates in bare end flying leads for easy installation. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc, and can function within an ambient air temperature range of -40 to +70°C. It boasts an IP67 degree of protection, making it suitable for harsh environments. The S18-2VNRS-2M has a compact M18 cylindrical threaded/barrel shape for straightforward mounting, features one digital output (NPN transistor), and offers a sensing distance of up to 25m. Its response time is quick at 1.5ms / 0.0015 s, and it supports both Light-ON and Dark-ON operating modes, with an M18 thread size for the mounting interface.

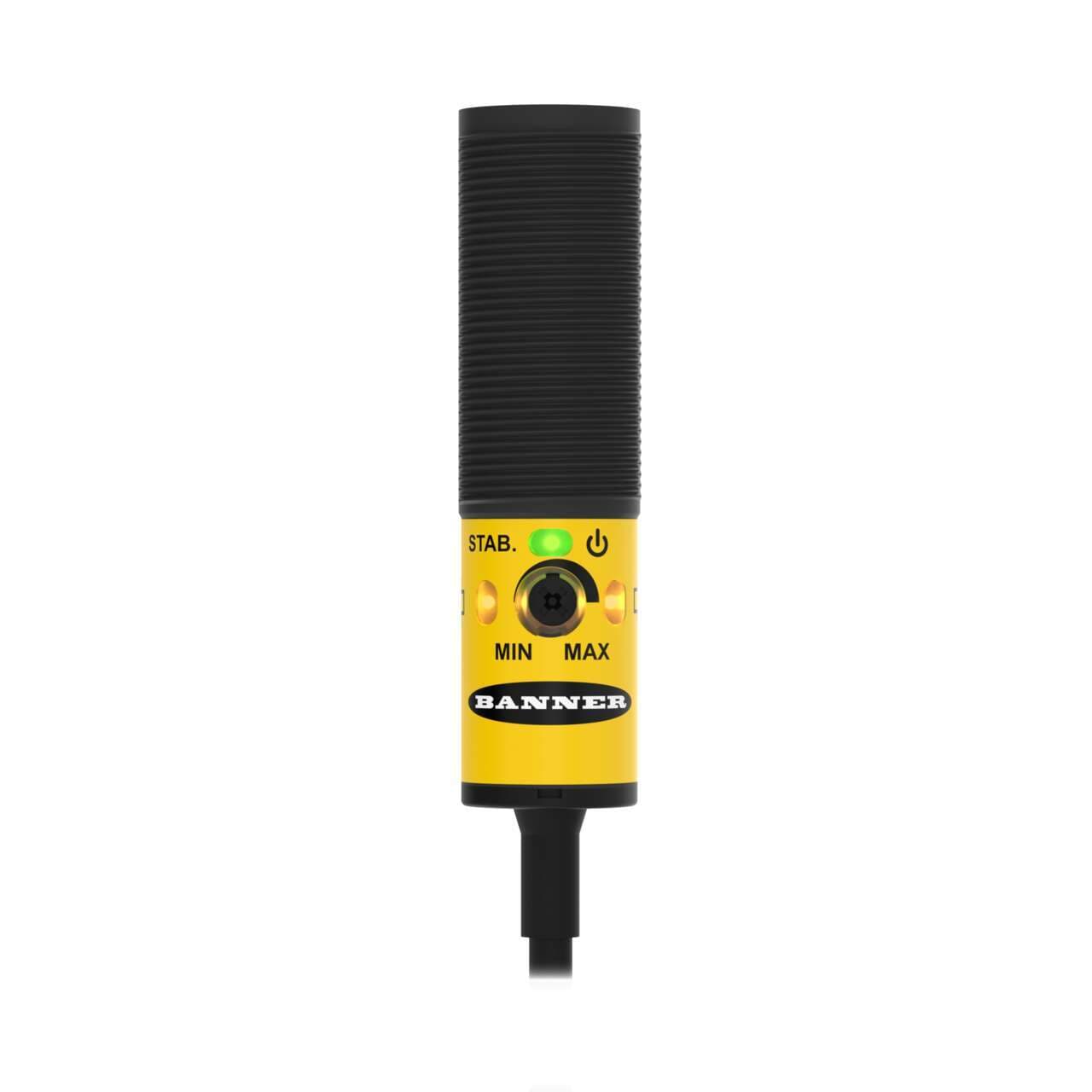

![S18-2VNRS-2M](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2F8a1da2c2-ea0b-4aec-bd98-bc97d6e94f42.jpeg&w=3840&q=75)
Banner Engineering S18-2VNRS-2M is a photo-electric sensor designed as part of the S18-2 series, featuring a through-beam system with opposed mode potentiometer adjustment for precise control. This sensor, functioning as the receiver component, is encased in a thermoplastic housing with an acrylic lens for durability. It comes pre-wired with a 6.5ft / 2m cable that terminates in bare end flying leads for easy installation. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc, and can function within an ambient air temperature range of -40 to +70°C. It boasts an IP67 degree of protection, making it suitable for harsh environments. The S18-2VNRS-2M has a compact M18 cylindrical threaded/barrel shape for straightforward mounting, features one digital output (NPN transistor), and offers a sensing distance of up to 25m. Its response time is quick at 1.5ms / 0.0015 s, and it supports both Light-ON and Dark-ON operating modes, with an M18 thread size for the mounting interface.
Product details
- Feature: Timing (Hold/Delay)No
- IO LinkNo
- Feature: AudibleNo
- Feature: Hazardous AreaNo
- DeviceNetNo
- Feature: Chemical ResistantNo
- Feature: EncapsulatedNo
- Feature: Ecolab CertifiedYes
- Opposed Mode Emitter/ReceiverReceiver
- IndicatorLEDs
- Barrel Diameter (mm)18
- AdjustmentsPotentiometer
- Lens MaterialAcrylic
- Max Op. Relative Humidity [%]95% @ 50°C
- NEMA RatingN/A
- IP RatingIP67
- Number of Pins4
- Repeatability (µs)170
- Special Feature: Remote TeachNo
- Delay at Power-up (ms)100
- Special Feature: Water DetectionNo
- Special Feature: Intrinsically SafeNo
- Output response time (ms)1.5
- Max Op. Temp. (°C)70
- OperationLight/Dark Operate
- Input/OutputDiscrete
- Max Sensing Distance (mm)25000
- Min Op. Temp. (°C)-40
- Quick Disconnect TypeNo QD
- ConnectionCable
- Power Supply/Supply Voltage10-30 V dc
- OutputsNPN
- Cable Length (m)2
- Primary Housing MaterialThermoplastic
- Sensing Mode (General)Opposed
- Housing StyleBarrel
- Sensing Mode (Detailed)Receiver
- PowerDC
- Sensing BeamVisible Red LED
- Sub-range nameS18-2 series
- Thread sizeM18
- Digital outputs1 x digital output (NPN transistor)
- Materialthermoplastic housing Acrylic lns.
- Product series / family nameM18 barrel series
- ShapeCylindrical threaded/barrel
- Primary brandBanner Engineering
- Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Operating modeLight-ON Dark-ON
- Compliant with standard(s)CE
- Designthrough-beam system / opposed mode
- Ambient air temperature for operation-40...+70 °C
- Main functionSensor (Photo-electric)
- FunctionsPhoto-electric sensor receiver green LED (power ON) 2 x yellow LED (output conducting) potentiometer adjustment
- Sensing distance25m
- Degree of protectionIP67
- Order code / Manufacturer SKU86566
- Connection typePre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Response time1.5ms / 0.0015 s
- Equivalent toS182VNRS2M
