RDLS-825DW Banner Cordsets
Product Details
- Weight 498.9512 g
- Country Of Origin TW
- Primary AWG 22
- Oil/Grease Resistant No
- Feature: Hazardous Area No
- Feature: Washdown Rated Yes
- Primary Number of Conductors 1
- Primary Orientation Straight
- Primary Connector Type LS-Custom
- Voltage Rating (V) 75 V ac/dc
- IP Rating IP69
- Primary Gender Female
- Current Rating (A) 4.0
- Minimum Temp. (°C) -40
- Maximum Temp. (°C) 105
- Cordset Length (m) 8.0
- Shield/No Shield No Shield
- Number of Connectors 1
- Coupling Material/Color Custom
- Cable Jacket Color Yellow
- Trunk Length (m) No Trunk
- Outside Cable Diameter (mm) 6.0
- Cable Jacket Material PVC
- Number of Contacts 12
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RDLS-825DW on Powermatic Associates is $113.00. Order now.
About the product

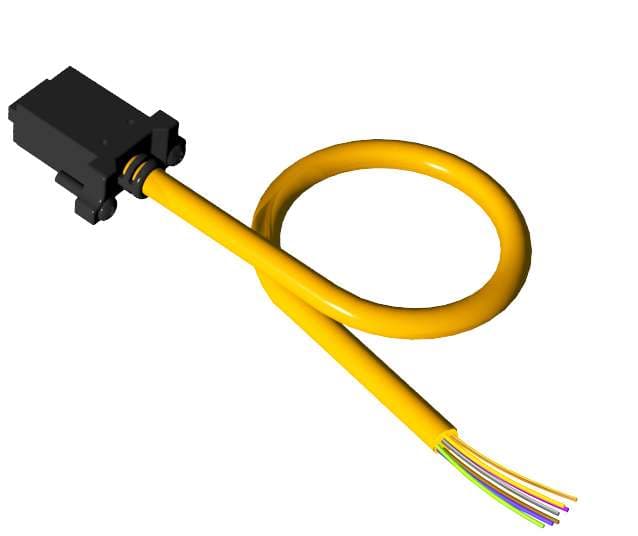

Banner Engineering RDLS-825DW is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 12-pin LS female connector and bare end flying leads, ensuring compatibility with a wide range of devices. The cable has a diameter of 6mm and is encased in yellow PVC sheathing, providing durability and visibility. It is rated for operation in ambient air temperatures ranging from -40 to +105 degrees Celsius, making it suitable for use in harsh environments. With a length of 26.2 feet (8 meters) and a rated voltage of 75Vdc, this cable offers flexibility in installation. The RDLS-825DW also boasts a high degree of protection with an IP69 rating, ensuring it is safeguarded against ingress of dust and high-temperature, high-pressure water jets.
