Powermatic Associates Logo

RDLS-825D Banner Cordsets

RDLS-825D on Powermatic Associates
Banner

Part#:RDLS-825D

Manufacturer:Banner

Category:Cordsets

Alt. Part#:93157

Product Lifecycle:Active

Get a quick Quote!

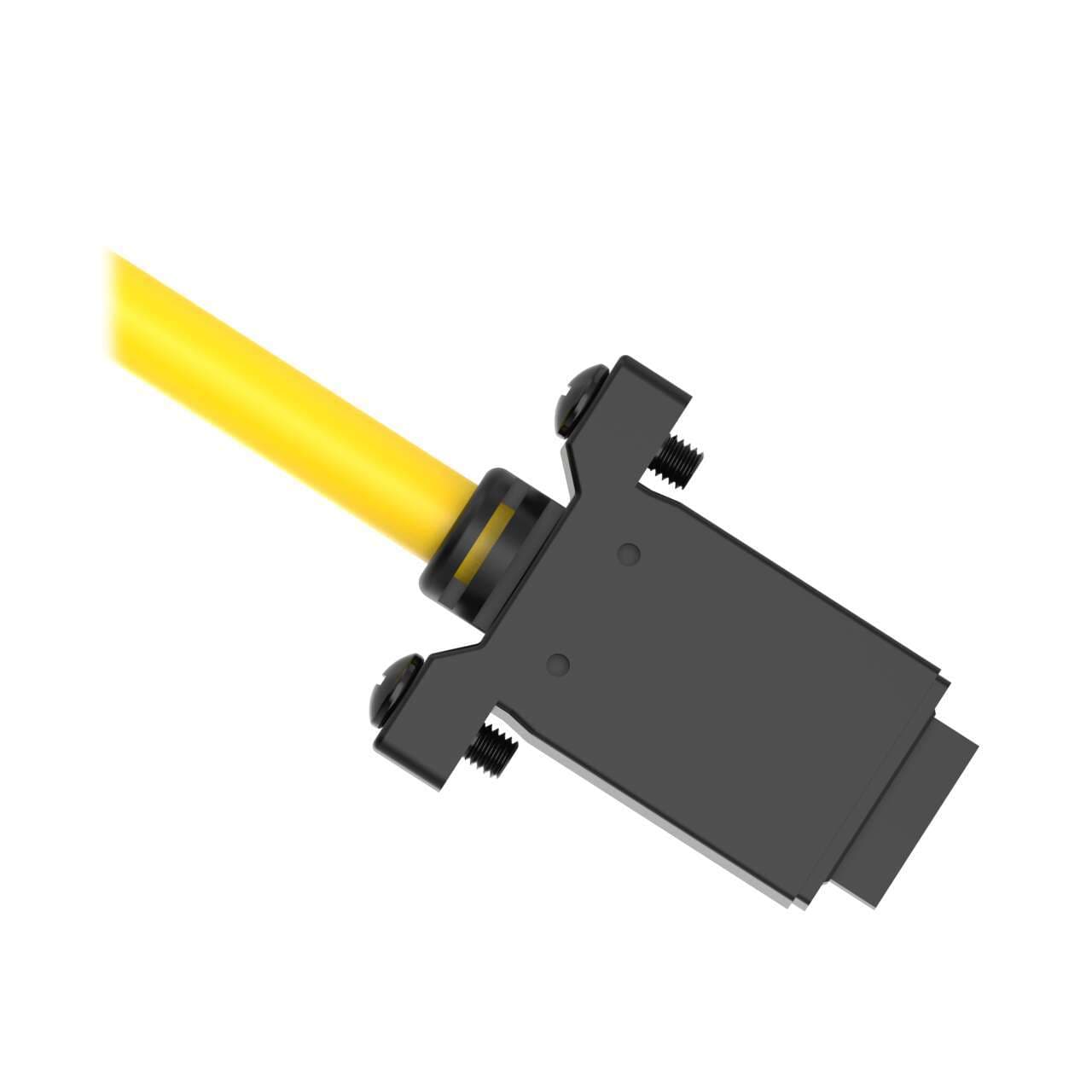

Cordset: Single Ended LS-Custom; 12-pin Straight Female; 8 m 8x22 Yellow PVC Jacket; PVC Black

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the RDLS-825D Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    496.5018032 g
  • Country Of Origin
    TW
  • Oil/Grease Resistant
    No
  • Feature: Hazardous Area
    No
  • Secondary Connector Type
    Flying Leads
  • Primary AWG
    22
  • Primary Number of Conductors
    8
  • Primary Orientation
    Straight
  • Primary Gender
    Female
  • Primary Coupling Method
    EZS-LS
  • Coupling Material/Color
    Nylon Black
  • IP Rating
    IP67
  • Minimum Temp. (°C)
    -40
  • Maximum Temp. (°C)
    105
  • Primary Connector Type
    LS-Custom
  • Number of Connectors
    1
  • Number of Contacts
    12
  • Trunk Length (m)
    No Trunk
  • Cable Jacket Color
    Yellow
  • Cordset Length (m)
    8
  • Outside Cable Diameter (mm)
    6
  • Connector Body Material/Color
    PUR Black
  • Cable Jacket Material
    PVC
  • Shield/No Shield
    No Shield

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

RDLS-825D Description

Banner Engineering RDLS-825D is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with an 8-pin LS female connector and bare end flying leads, facilitating easy and versatile connections. The cable has a diameter of 6mm and is encased in yellow PVC sheathing, providing visibility and protection. It is 26ft (8m) in length, offering ample reach for installations. This model is built to operate within an ambient air temperature range of -40 to +105°C, ensuring performance in a wide range of environmental conditions. With a degree of protection rated at IP67, it is well-suited for use in environments where dust and moisture resistance are required.

Manufacturer warranty

$73.00

Request a quote, and we will send availability within minutes.

Select Qty:

$73.00

$73.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
